[properties]
| Properties |
UVC-G4-Doorbell |
| Description |
The Ubiquiti UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a 5MP sensor and two-way audio. To maximize its features, use it with UniFi Protect and recommend pairing it with UniFi Dream Machine PRO or UniFi Protect NVR. |
| Product Family |
Ubiquiti UniFi Protect |
| Product Type |
Doorbell |
| Networking interface |
802.11 ac WiFi |
| Weatherproofing |
IPX4 |
| Link/activity LED |
Yes |
| Button |
Factory reset |
| Max. power consumption |
12VA |
| Power requirements |
16—24V AC, 20VA, 50/60 Hz |
| Dimensions |
118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02") |
| Weight |
Without mount: 130 g (4.59 oz)
With at wall mount: 178 g (6.28 oz)
With 20° wedge mount: 200 g (7.05 oz) |
| Enclosure material |
Polycarbonate |
| Mount materials |
Flat wall mount: aluminum alloy
20° wedge mount: polycarbonate |
[/properties][specifications]
| Processor specs |
Quad-core Arm® Cortex®-A53 based chip |
| Sensor |
5 MP CMOS sensor |
| Lens |
Fixed focal length |
| View angle |
H: 138°, V: 114°, D: 155° |
| Night mode |
Built-in IR LED illumination and IR cut filter |
| Video compression |
H.264 |
| Resolution |
1600 x 1200 (4:3) |
| Maximum frame rate |
30 FPS |
| Microphone |
Yes (can be disabled in software) |
| Speaker |
Yes |
| Controller software |
UniFi Protect |
| Mobile apps |
UniFi Protect iOS™ and Android™ |
| Operating temperature |
-10 to 40º C (14 to 104º F) |
| Operating humidity |
0 to 90% noncondensing |
| Certifications |
FCC, IC, CE |
[/specifications]

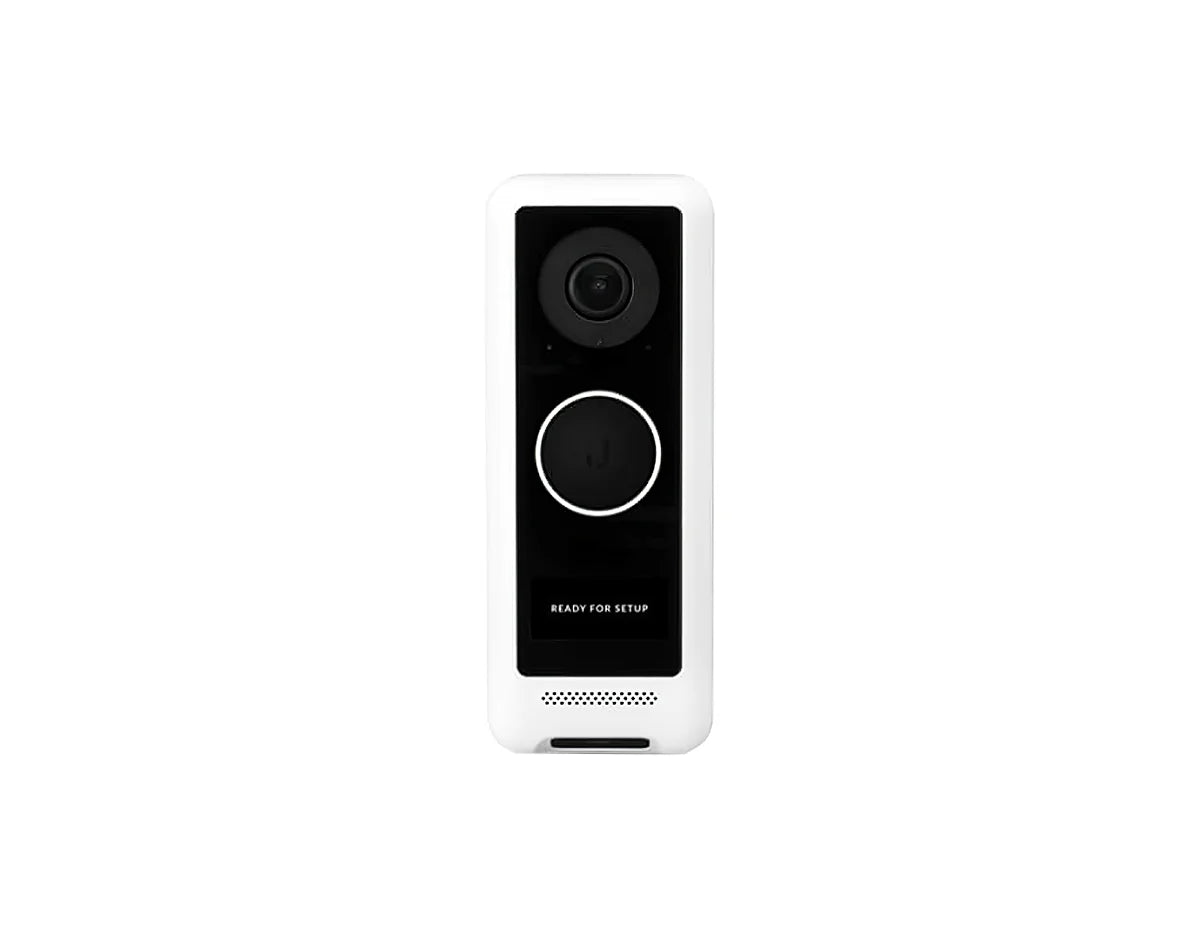

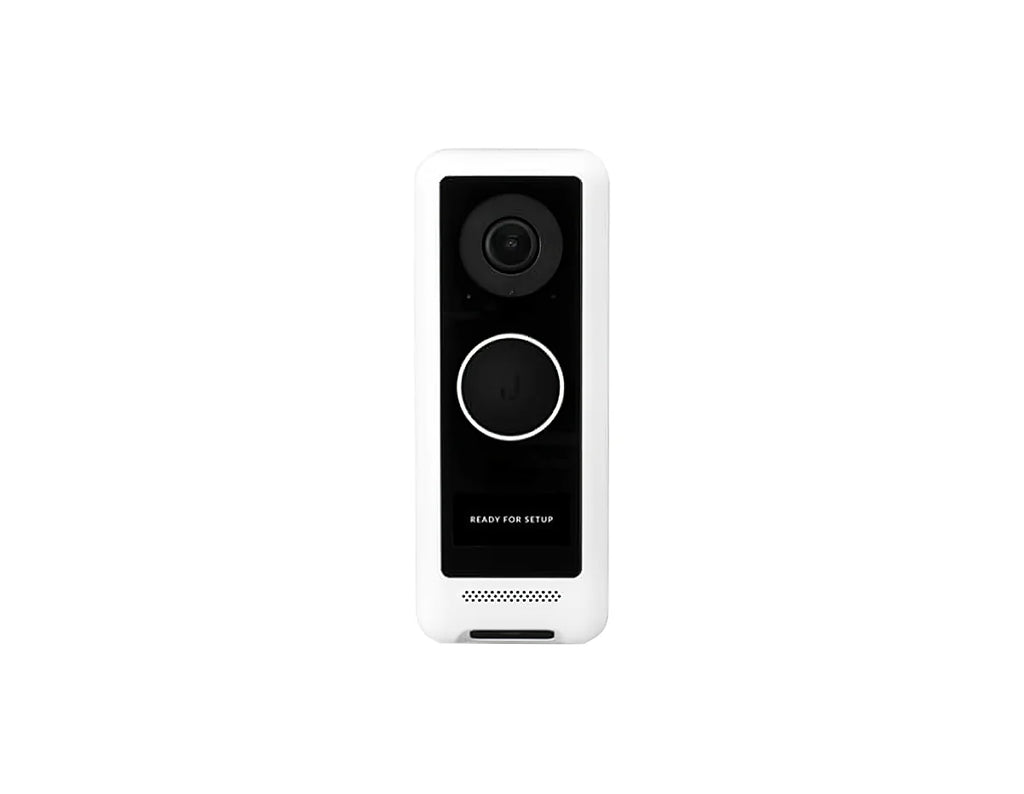

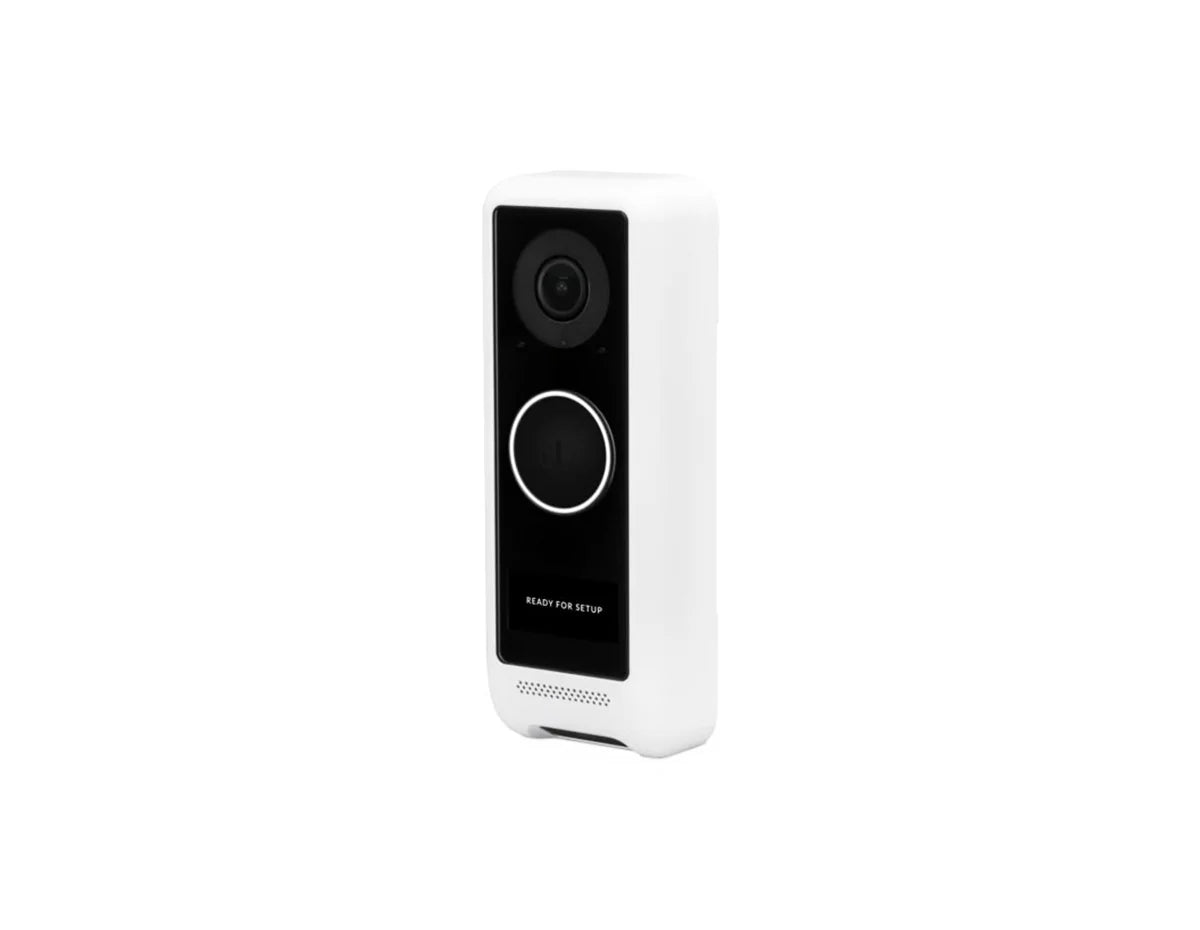

Ubiquiti UniFi UVC-G4-DOORBELL
The UniFi Protect G4 Doorbell is a Wi-Fi video doorbell featuring real-time two-way audio communication and an integrated display. The camera has an excellent 5MP sensor with improved low-light performance. You can view image streams up to 2MP HD resolution at 30 frames per second. A PIR sensor is built into the UniFi Protect G4 Doorbell to provide immediate motion detection alerts. An intuitive user interface is made possible by integration with UniFi Protect.
Quick Specs:
-
1600x1200 (2MP) HD stream with night vision
-
Dual-band 802.11ac Wi-Fi
-
Real-time two-way audio with echo cancellation
-
Built-in display
Please see the related tabs for the UVC-G4-DOORBELL datasheet and compatible accessories.
