• Ubiquiti UAP-AC-M is a rugged, dual-band WiFi 5 access point with plug-and-play mesh support, external omni antennas, and weather-resistant housing—ideal for indoor or outdoor wireless coverage expansion

[/shortdesc]

[specifications] [/specifications]

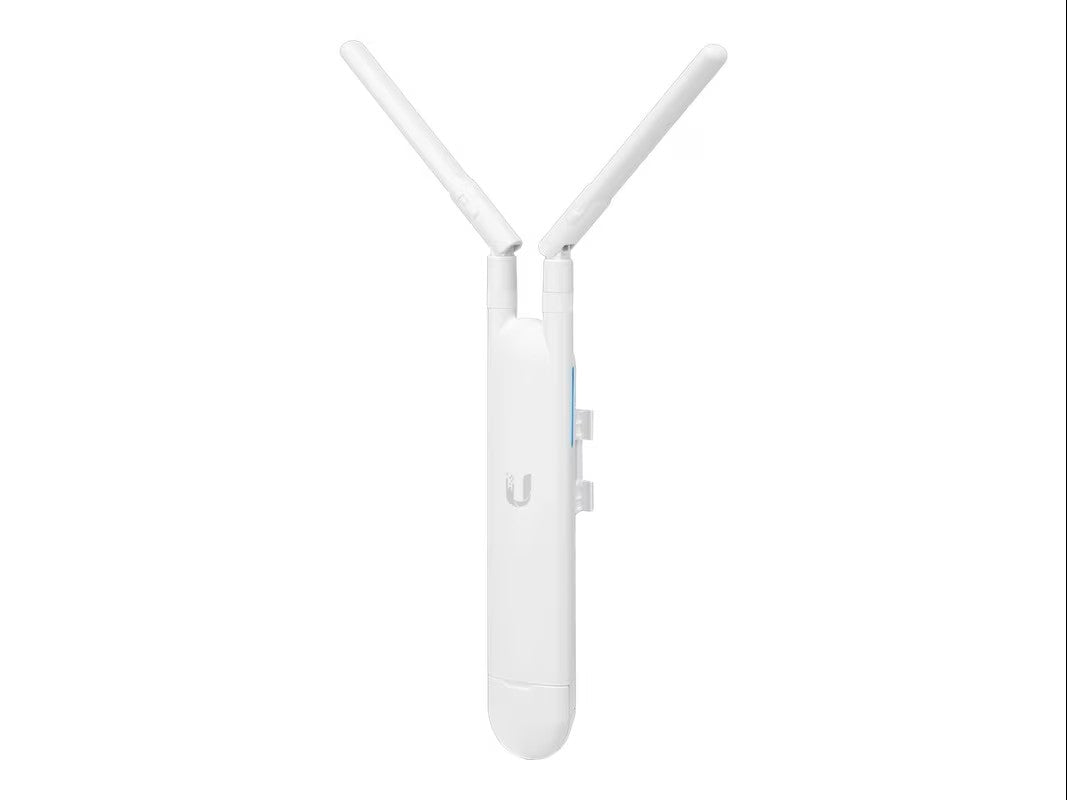

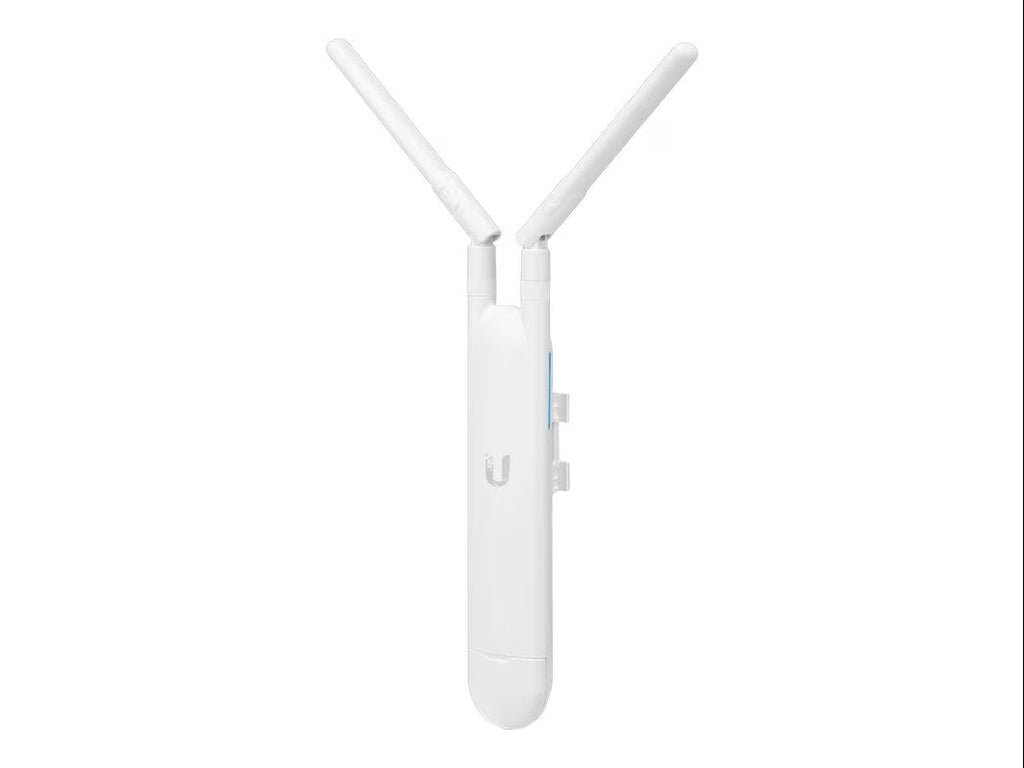

Ubiquiti UAP-AC-M Wireless Access Point WiFi 5 2.4/5GHz

The Ubiquiti UniFi UAP-AC-M is a high-performance, indoor/outdoor wireless access point engineered for fast, scalable deployment in enterprise, campus, and event environments. Featuring 802.11ac dual-band technology with 2x2 MIMO, it delivers speeds up to 867 Mbps on the 5 GHz band and 300 Mbps on 2.4 GHz. With plug-and-play mesh capabilities and flexible mounting options, this device allows for quick network expansion—especially in locations with limited infrastructure. The weather-resistant enclosure, included omni antennas, and compatibility with 802.3af and 24V passive PoE make it ideal for outdoor use, temporary installations, and large-scale mesh deployments.

Key Features:

• Dual-Band 802.11ac: Supports simultaneous 2.4 GHz and 5 GHz connections with a combined throughput of 1167 Mbps.
• Plug-and-Play Mesh: Mesh technology enables wireless linking between APs for flexible, multi-hop deployment.
• Outdoor Ready: Weather-resistant design suitable for harsh environments with a wide temperature range (-30°C to 70°C).
• Flexible Mounting: Includes accessories for wall, pole, and fast-mount installations.
• Omni Antennas: Comes with two detachable dual-band antennas (3 dBi @ 2.4 GHz, 4 dBi @ 5 GHz).
• PoE Support: Compatible with both 802.3af PoE and 24V passive PoE for flexible power options.
• Centralized Management: Easily managed via UniFi Controller software or the UniFi mobile app.
• Secure Guest Access: Includes Hotspot and voucher-based portal options with customizable branding.
• Enterprise Performance: Handles 250+ concurrent clients and includes per-user rate limiting and advanced QoS.

Technical Specifications:

• WiFi Standard: 802.11 a/b/g/n/ac (WiFi 5)
• 2.4 GHz Speed: Up to 300 Mbps (2x2 MIMO)
• 5 GHz Speed: Up to 867 Mbps (2x2 MIMO)
• Ethernet: (1) 10/100/1000 Mbps Gigabit port
• Maximum Clients: 250+
• PoE Input: 802.3af PoE or 24V Passive PoE (adapter included in single-pack)
• Power Consumption: Maximum 8.5W
• Antenna Gain: 3 dBi (2.4 GHz), 4 dBi (5 GHz)
• Mounting Options: Wall, pole, or fast-mount (kits included)
• Operating Temperature: -30°C to 70°C (-22°F to 158°F)
• Operating Humidity: 5% to 95% non-condensing
• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35 inches)
• Weight: 152 g (5.36 oz with antennas)
• Certifications: CE, FCC, IC
