| Properties |
UVC-G5-FLEX |
| Description |

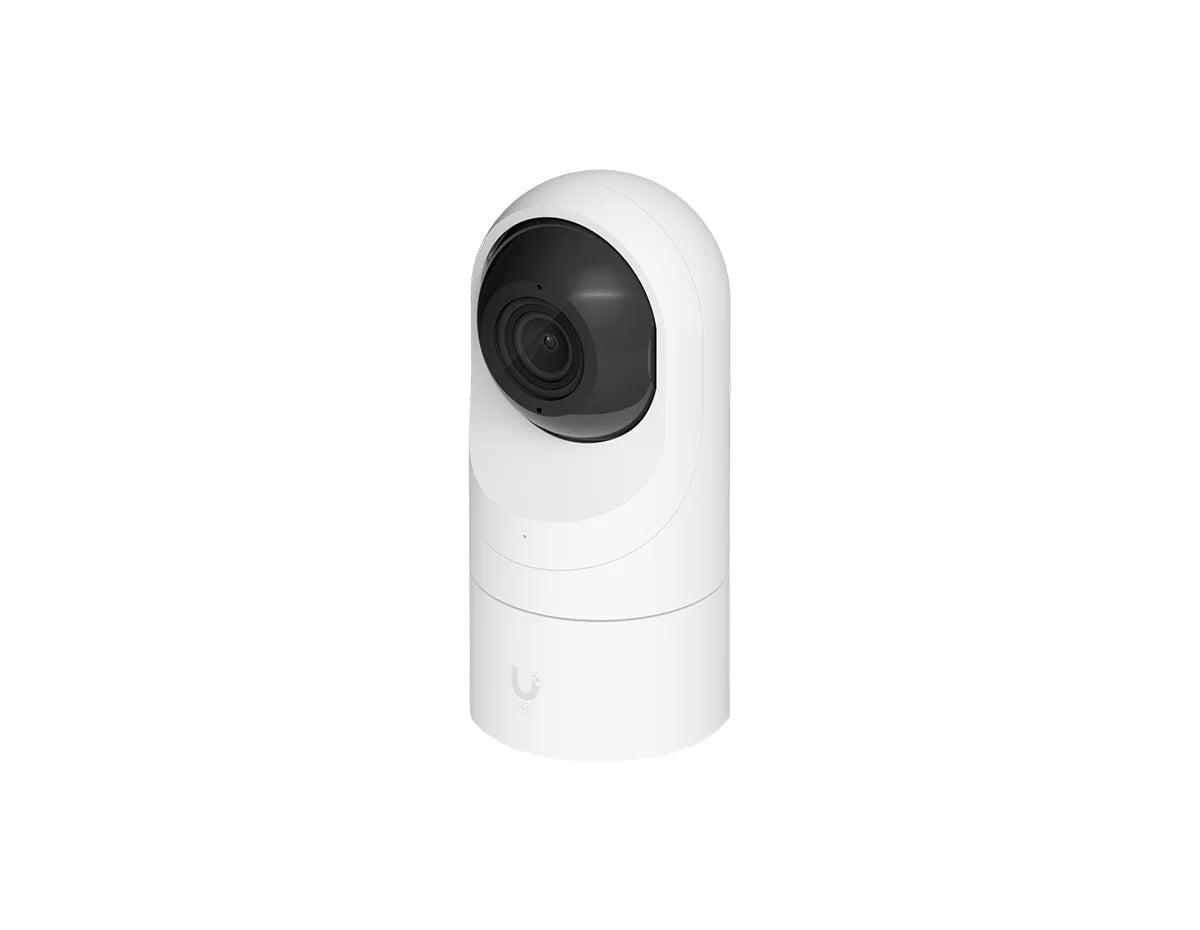

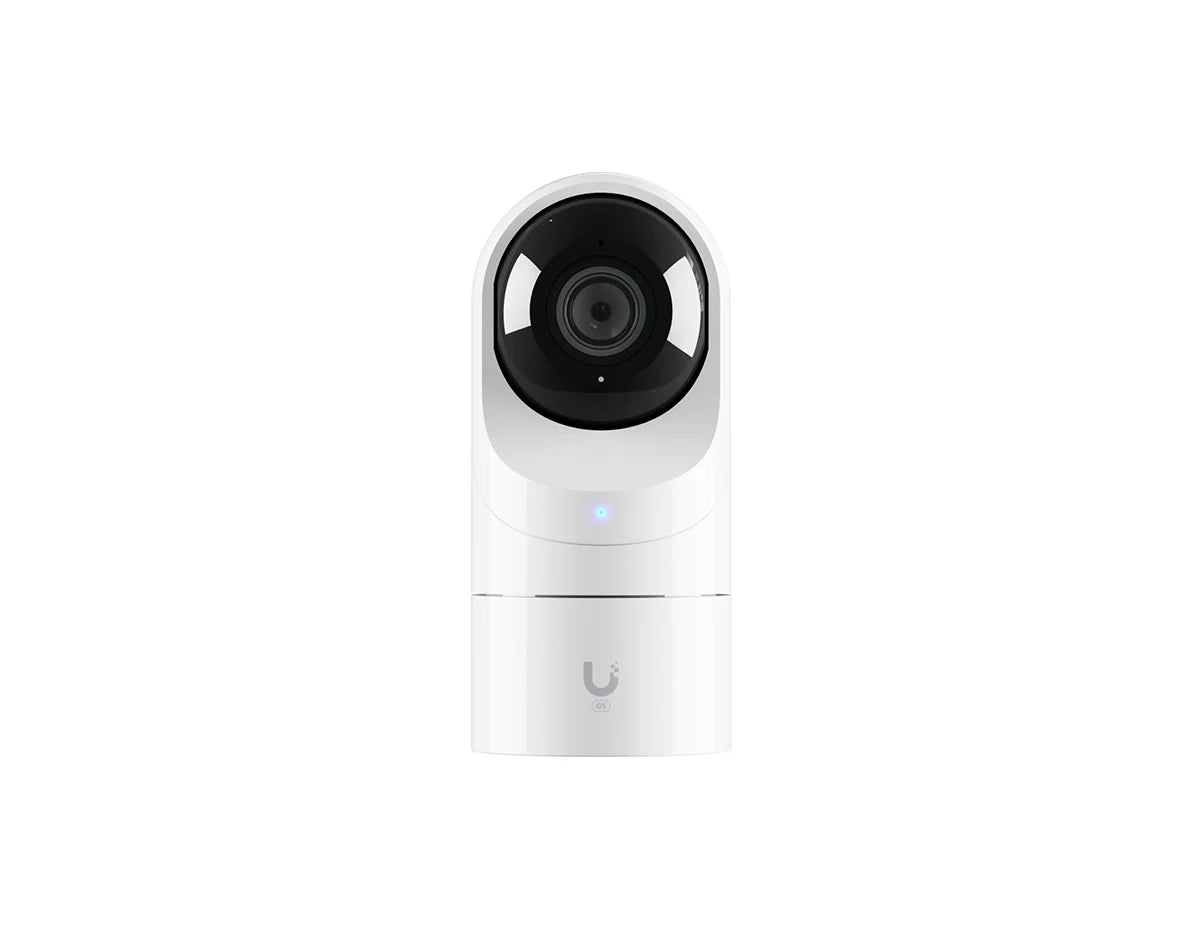

Compact, easy-to-deploy 2K HD PoE camera that can be staged indoors or outside. |
| Product Family |
Ubiquiti UniFi Protect |
| Product Type |
Camera |
| Features: |
• Wide-angle view (102.4˚)
• Multiple mounting options (desktop, wall, pole, hard-ceiling, ceiling*, and conduit*)
• Built-in microphone
• Weatherproof, IPX4-rated enclosure
• Integrated IR LEDs for enhanced night vision up to 10 m
* Sold separately |
[/properties] [specifications]
| Specifications |
UVC-G5-FLEX |
| Mechanical |
| Dimensions |
Ø48 x 107.5 mm (Ø1.9 x 4.2") |
| Weight |
170 g (6 oz) |
| Enclosure material |
Polycarbonate |
| Mount material |
Polycarbonate |
| Weatherproofing |
IPX4 |
| Resistance |
IK04 |
| Optics |
| Sensor |
5MP CMOS sensor |
| Lens |
Fixed focal length |
| View angle |
H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode |
Built-in IR LED illumination and IR cut filter |
| Video |
| Video compression |
H.264 |
| Resolution |
4MP 2688 x 1512 (16:9) |
| Max. frame rate |
30 FPS |
| Image settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System |
| Processor |
Dual-core Arm® Cortex®-A7 based chip |
| Networking interface |
10/100 MbE RJ45 port |
| Max. power consumption |
4W |
| Power method |
PoE |
| Supported voltage range |
37—57V DC |
| LED |
R/G/B/W |
| Button |
Factory reset |
| Mounting |
Desktop, wall, pole, hard ceiling (Included) |
|
Ceiling, conduit (Sold separately) |
| Operating temperature |
-20 to 40º C (-4 to 104º F) |
| Operating humidity |
0 to 90% non-condensing |
| Certifications |
FCC, IC, CE |
| Audio |
| Microphone |
Yes (Can be disabled) |
| Software |
| Web application |
UniFi Protect: Version 2.2.7 or 2.7.28 and later |
| Mobile app |
UniFi Protect iOS™ and Android™: Version 1.10.0 and later |
[/specifications] [accesories] [/accesories]
Compact, easy-to-deploy 2K HD PoE camera that can be staged indoors or outside.
2K (4MP) video resolution
Versatile table or ceiling mounting
6 m (20 ft) IR night vision
AI event detections
Connect and power using PoE
Record audio with an integrated microphone
Weather-resistant (outdoor covered)
