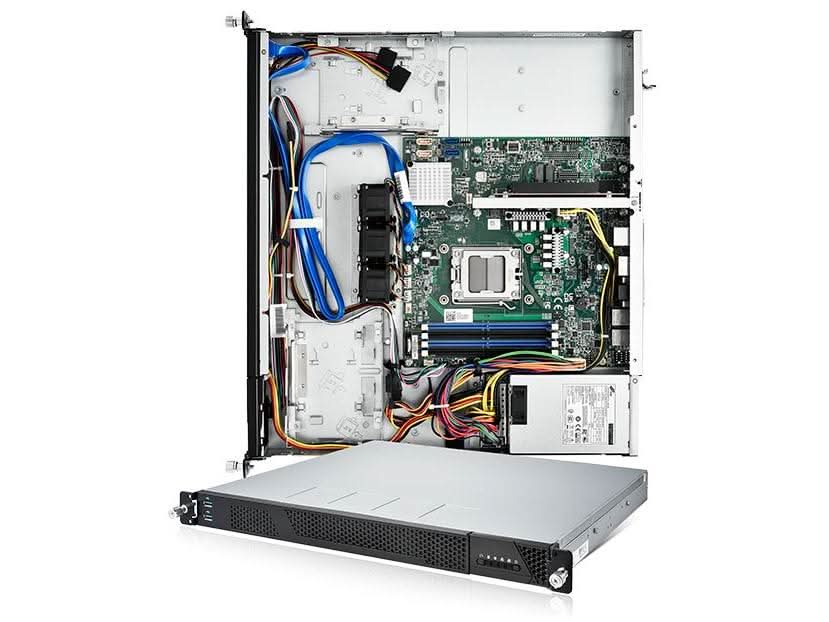

Tyan B8016G40V4 AMD Ryzen 7000 Series 1U Server
Specifications
Model Number:B8016G40V4
Brand: Tyan
Alt Part Number(s):B8016G40V4
Product Type: Server
Technical Description
Brand: Tyan
Model:B8016G40V4
Model: Transport CX GX40-B8016
Cabinet Form Factor: 1U
Processor Manufacturer: AMD
Max Supported Processors: 1
Mainboard Chipset: AMD B650
RAM Technology: DDR5
Total RAM Slots: 4
Max Supported RAM: 128 GB
Drive Bay Sizes: 3.5", 2.5"
Drive Interface Types: SATA 6 Gb/s, NVMe
Total Drive Bays: 6
Network Protocol: Gigabit Ethernet
Power Supply Type: Standard
Installed Power Supplies: 1
Power Output: 300 Watts
Power Requirements: AC 100–240V
Interfaces & Connections: USB 3.1 Gen 1, USB 3.2 Gen 1, RJ-45, D-Sub 15-pin, DisplayPort
Expansion Slots (Total/Free):
Dimensions:
Width: 19 inches
Depth: 16.1 inches
Height: 1.75 inches
RoHS Compliant: Yes
