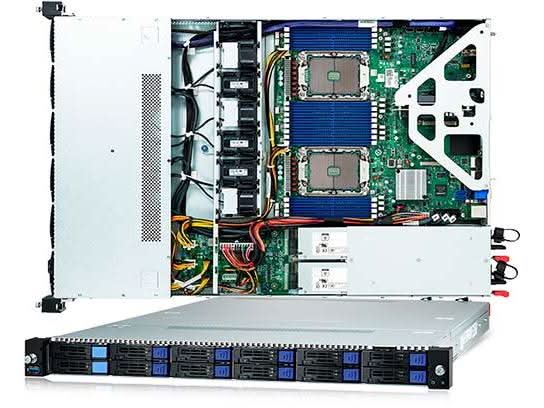

Tyan B7126G68AV10E2HR 1U Server, Intel Xeon SP Series 3rd Gen
Overview
High-density 1U server barebone featuring dual Intel Xeon support, 14x 2.5" drive bays, and redundant 850W power for enterprise performance and reliability.
Specifications
Model Number: B7126G68AV10E2HR
Brand: Tyan
Alt Part Number(s): B7126G68AV10E2HR
Product Type: Server
Technical Description
Brand: Tyan
Model:B7126G68AV10E2HR
System Type: Server Barebone
Cabinet Form Factor: 1U
Processor Type: Xeon
Processor Manufacturer: Intel
Max Supported Processor Qty: 2
Chipset Type: Intel C621A
RAM Technology: DDR4
Total RAM Slots Qty: 16
Hard Drive Size: 2.5"
Hard Drive Interface Type: SATA 6 Gb/s; NVMe
Hard Drive Bays Qty: 14
RAID Level: RAID 0, 1, 5, 10
Data Link Protocol: Gigabit Ethernet
Power Device Type: Power Supply - Redundant
Installed Power Supply Qty: 2
Power Provided: 850 Watt
Voltage Required: AC 100-240V
Interfaces & Connections: USB 3.0; RJ-45; D-Sub 15-pin; DB-9 COM
Expansion Slots (Total/Free):
(2) PCIe Gen.4 x16 slots (FH/HL)
(1) PCIe Gen.3 x16 OCP v2.0 mezzanine slot
Model: Thunder CX GC68-B7126
Width: 17.26 Inch
Depth: 26.77 Inch
Height: 1.69 Inch
RoHS Compliant: Yes
*
