Description

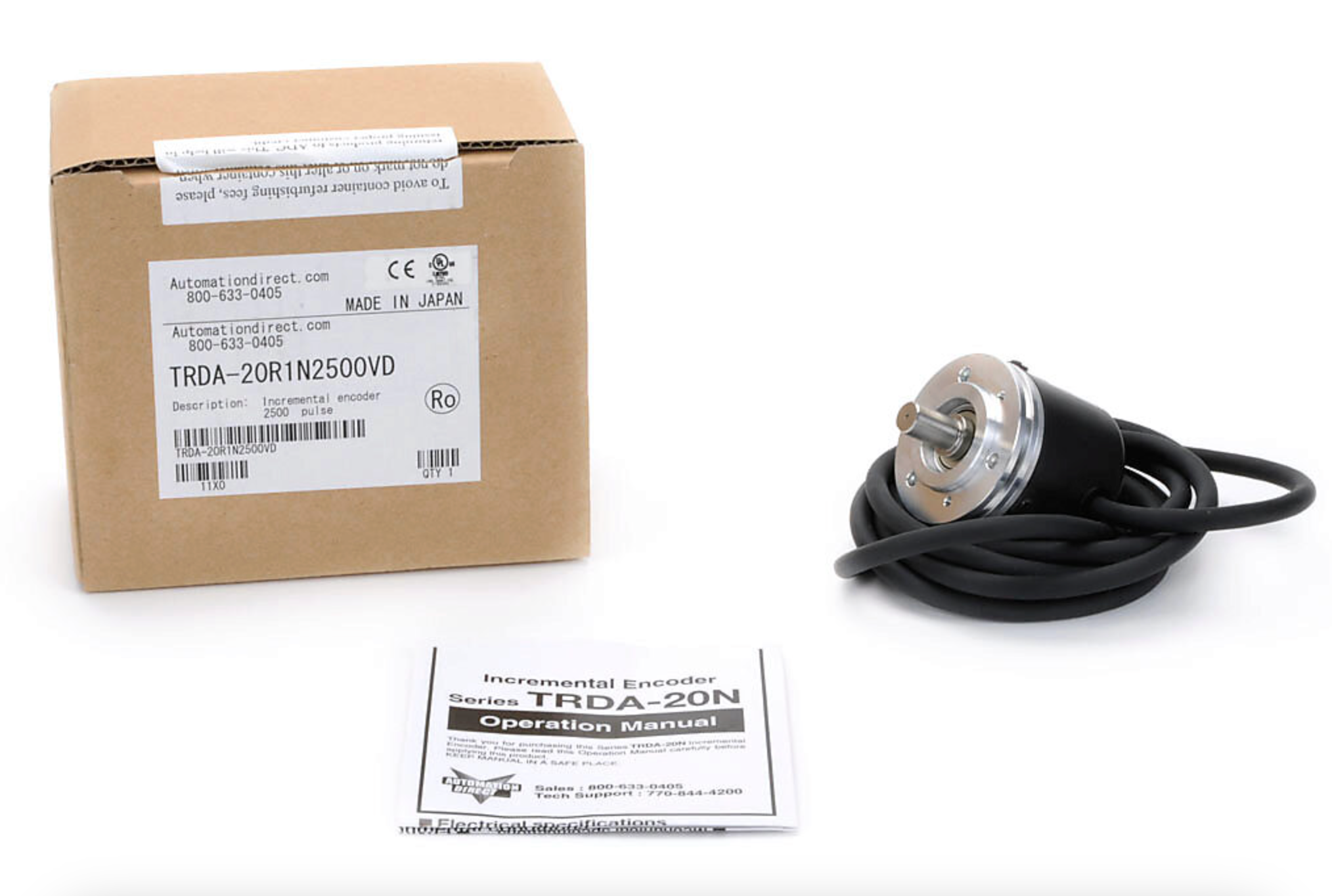

The Automation Direct TRDA-20R1N2500VD is a JTEKT TRDA-20 series incremental rotary encoder designed to provide precise position and speed feedback in motion control systems. With a resolution of 2500 pulses per revolution and differential line driver output, it supports high-speed signal transmission up to 200 kHz. This medium-duty encoder operates at 5 VDC and is suited for industrial machinery requiring accurate rotational measurement.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Motion Control |
| Part Number |
TRDA-20R1N2500VD |
| Subcategory |
Rotary Encoders |
| Manufacturer |
JTEKT |
| Series |
TRDA-20 |
| Encoder Type |
Rotary |
| Feedback Type |
Incremental (quadrature) |
| Encoder Resolution |
2500 pulses per revolution |
| Voltage Rating |
5 VDC |
| Output Type |
Line driver (differential) |
| Duty Rating |
Medium duty |
| Maximum Speed |
4800 rpm |
| Frequency Response |
200 kHz |
| Shaft Type |
Solid |
| Shaft Diameter |
3/8 in |
| Radial Shaft Load |
50 N |
| Axial Shaft Load |
30 N |
| Body Diameter |
2 in |
| Housing Material |
Aluminum |
| IP Rating |
IP50 |
| Cable Length |
6.5 ft (2 m) |
| Cable Diameter |
6.4 mm |
| Wire Size |
24 AWG |
| Exit Orientation |
Radial |
| Connector Type |
Pigtail |
| Weight |
0.8 lb |

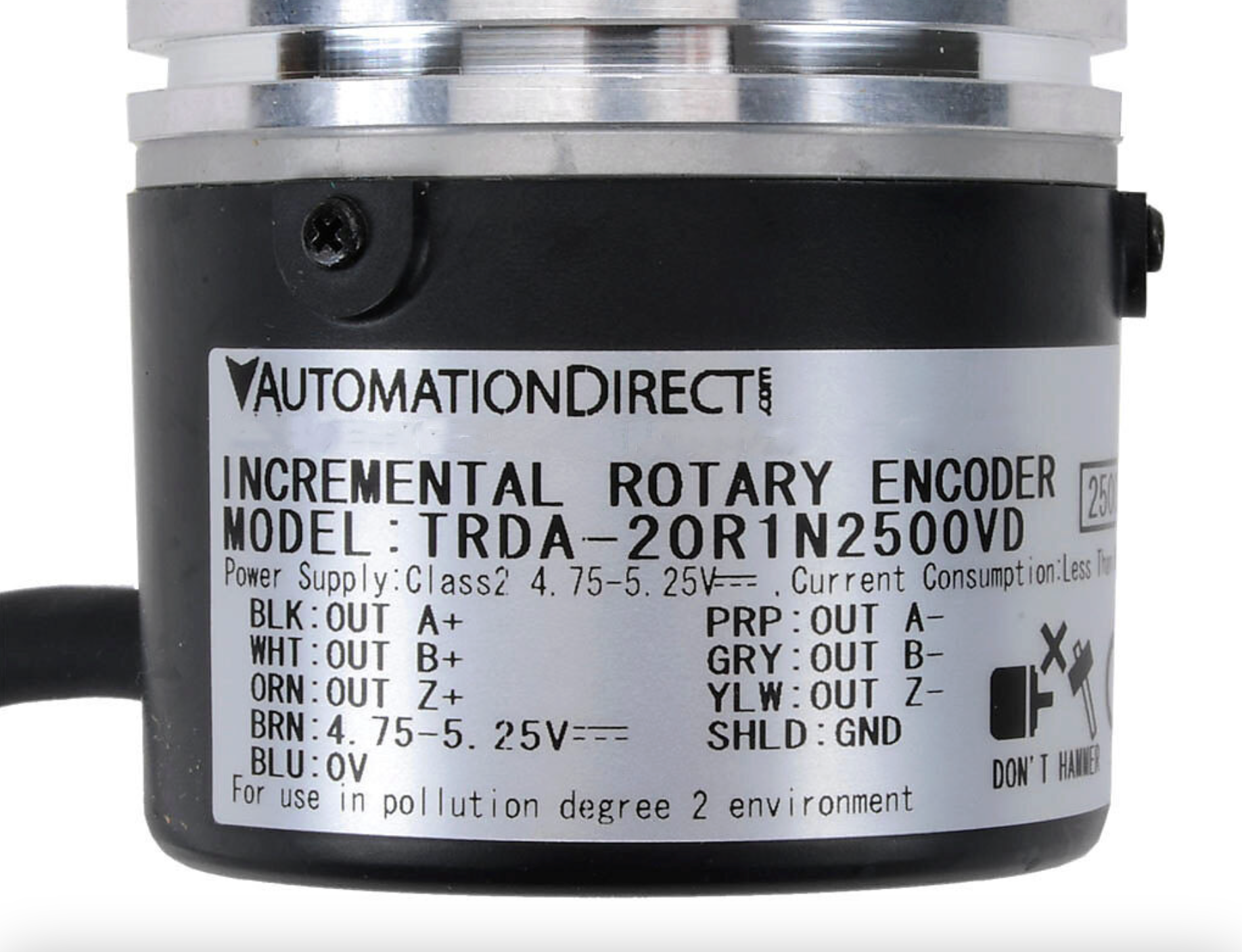

Information About TRDA-20R1N2500VD

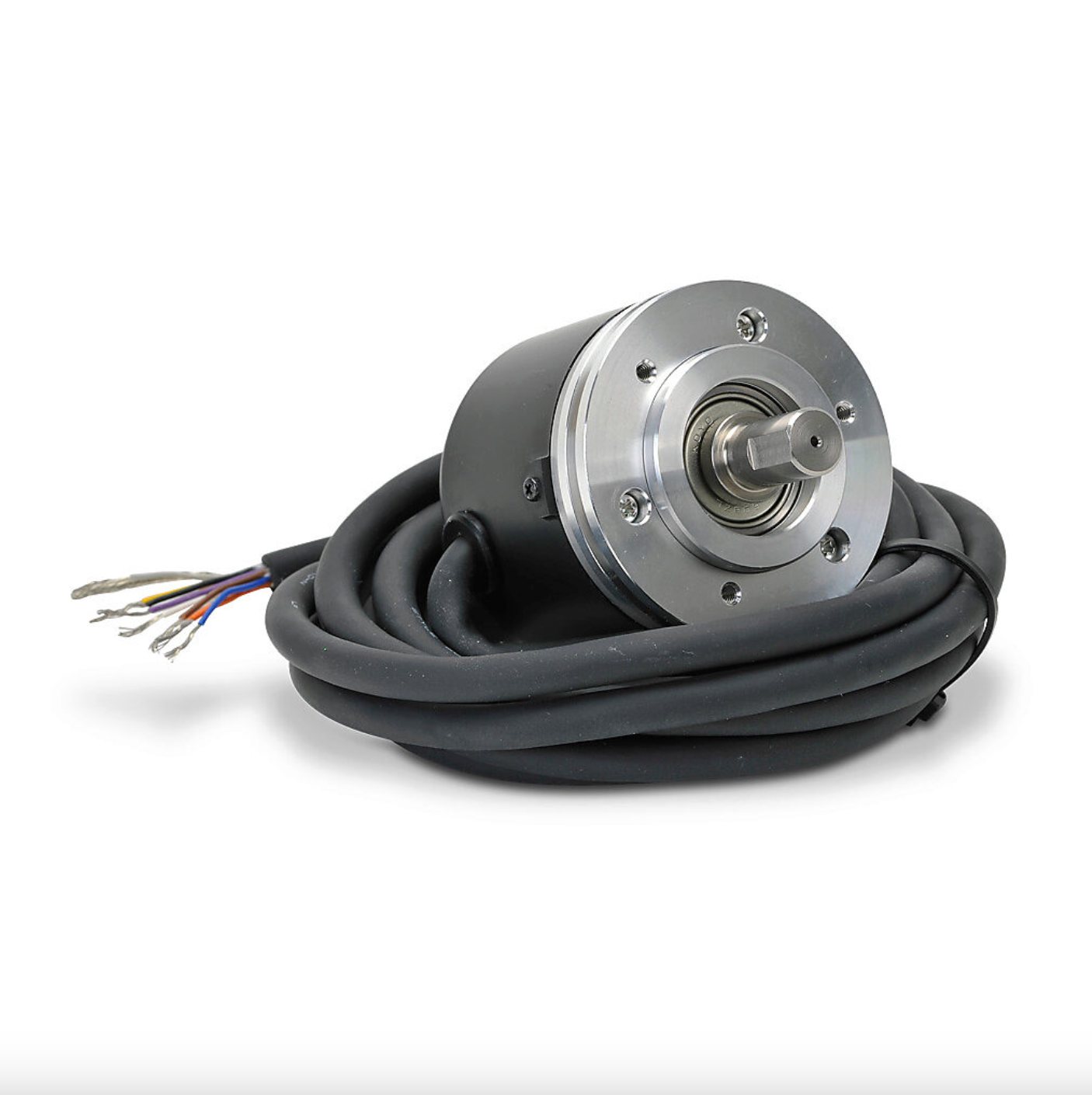

The TRDA-20R1N2500VD is part of the JTEKT TRDA-20 encoder series engineered for reliable incremental feedback in automation environments. It features a solid 3/8-inch shaft and aluminum housing with a compact 2-inch body diameter for integration into space-limited applications. The encoder provides quadrature incremental output using a differential line driver interface to enhance signal integrity over longer cable runs. Designed for medium-duty operation, it supports speeds up to 4800 rpm and includes a 6.5 ft radial-exit pigtail cable for convenient installation.
Key Features:
- 2500 PPR Resolution: Provides precise incremental feedback for motion and positioning control.
- Differential Line Driver Output: Ensures reliable high-speed signal transmission with noise immunity.
- 5 VDC Operation: Compatible with standard encoder input circuits.
- Medium-Duty Design: Suitable for industrial machinery with moderate mechanical loads.
- Solid 3/8-Inch Shaft: Supports direct shaft coupling with defined radial and axial load ratings.
- High Frequency Response: Capable of up to 200 kHz output for fast pulse processing.
- 4800 RPM Speed Rating: Designed for high-speed rotational applications.
- Aluminum Housing Construction: Durable 2-inch diameter body with IP50 protection rating.
The TRDA-20R1N2500VD delivers the reliability and precision required for industrial motion feedback and rotary position sensing applications.
