Description

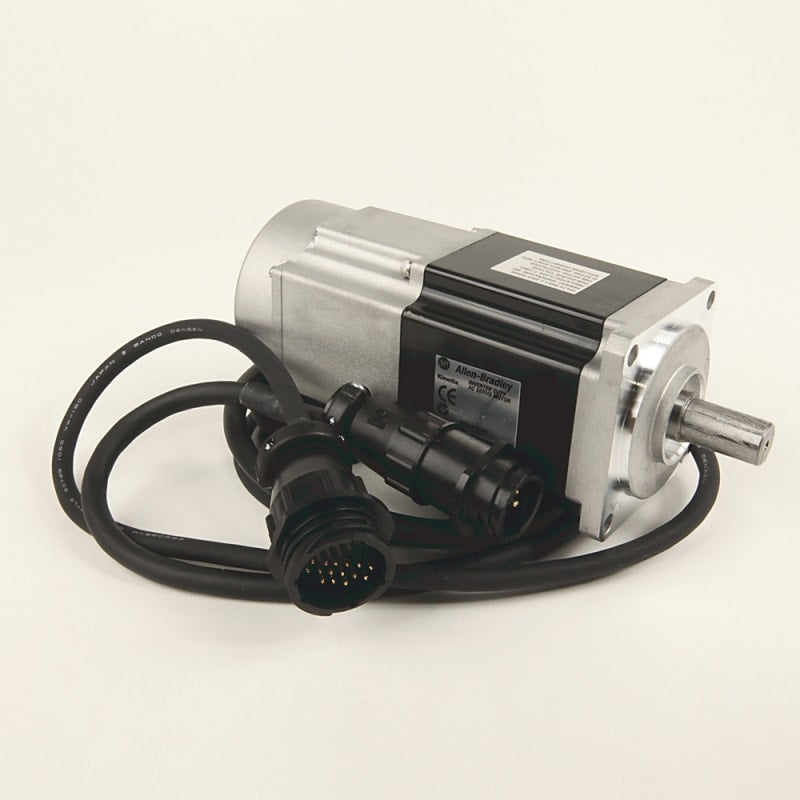

The Allen-Bradley TLY-A230T-HJ62AA is a high-speed, low-inertia servo motor from the TL-Series, engineered for precise and dynamic motion control in compact automation systems. Operating at 230V AC with a rated speed of 6000 RPM, it combines rare-earth magnet technology with Smart Motor capabilities for high-performance, high-reliability applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
TLY-A230T-HJ62AA
|
| Subcatecory |
|
| Voltage |
230VAC |
| Frame Size |
2 = 70 mm |
| Product Family |
TLY Series Low Inertia servo motors |
| Main Features |
High Torque output; Smart Motor Technology enabled; |
| Motor Type: |
Brushless AC Synchronous Servo Motors |
| Rated Power |
0.35 kW |
| Continuous Stall Torque |
0.836 Nm (7.4 lb-in.) |
| Peak Stall Torque |
1.48 Nm (13.1 lb-in.) |
| Magnet Stack Length |
30 |
| Rated Speed |
6000 rpm |
| Feedback |
2000 lines/revolution, incremental encoder |
| Enclosure/Shaft Key |
IP65/Shaft Key |
Information About TLY-A230T-HJ62AA
The TLY-A230T-HJ62AA belongs to the Allen-Bradley TLY Series of Low Inertia Brushless AC Servo Motors, designed for responsiveness and rapid acceleration. It features a 70 mm frame size and a 30 mm magnet stack, delivering 0.35 kW of rated power. The motor supports 6000 RPM rated speed with a continuous stall torque of 0.836 Nm and peak torque of 1.48 Nm, making it ideal for applications with high-speed and low-inertia demands.
Key Features:
-
230V AC Operation: Compatible with standard servo drive voltage systems for industrial motion control.
-
High-Speed Performance: Rated speed of 6000 RPM enables rapid cycle times and dynamic motion response.
-
Low Inertia Design: Optimized for acceleration and deceleration in light-load applications.
-
Rare-Earth Magnet Stack: 3-inch stack for efficient torque production and compact size.
-
Smart Motor Technology Enabled: Supports intelligent motor diagnostics and drive communication.
-
Precise Feedback: 2000-line/rev incremental encoder for accurate position and speed monitoring.
-
IP65 Protection: Sealed against dust and low-pressure water jets, ideal for industrial environments.
-
Shaft Key Included: Ensures reliable shaft-to-load connection in dynamic applications.
The TLY-A230T-HJ62AA offers robust and responsive servo control in compact machines, conveyors, and precision automation systems.
