Overview

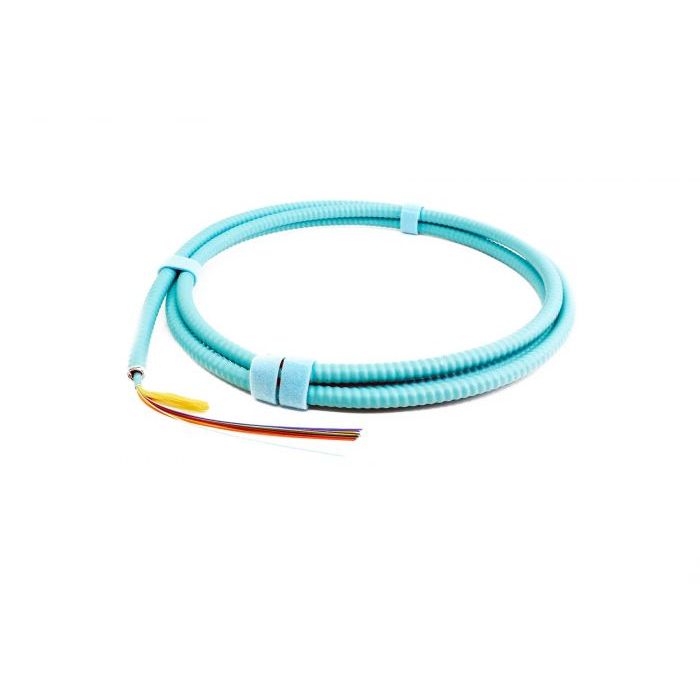

The TLC Micro-Distribution Cable is engineered for high-density indoor environments where space efficiency is critical. This cable features 48 fibers constructed with ClearCurve multimode 50/125um OM4 glass, providing support for high-speed data applications. The cable is protected by an aluminum interlocking armor (AIA), which provides structural reinforcement for the internal components, and is finished with a plenum-rated jacket for compliance with indoor building fire safety requirements.
Key Features
-
48-Fiber Configuration: Contains 48 optical fibers grouped in subunits of 12, allowing for organized high-density cable management.
-
Aluminum Interlocking Armor (AIA): Incorporates a flexible metallic armor layer that provides mechanical protection against crush and impact forces during installation or in high-traffic areas.
-
Plenum-Rated Jacket: Features a plenum-grade outer sheath, meeting stringent fire safety standards for use in air-handling spaces.
-
ClearCurve Multimode Technology: Utilizes bend-insensitive OM4 fiber to maintain signal integrity in compact environments with tight bend radii.
-
Subunit Organization: Fibers are structured into discrete 12-fiber subunits, facilitating easier breakout and termination during installation.
Technical Specifications
| Specification |
Detail |
| Fiber Count |
48 |
| Fiber Type |
Multimode 50/125um (OM4) |
| Cable Type |
Micro-Distribution |
| Armor Type |
Aluminum Interlocking Armor (AIA) |
| Jacket Rating |
Plenum |
| Fiber Grouping |
Subunits of 12 fibers |
| Application |
Indoor Data Centers and Premise Networks |
| Jacket Color |
Aqua |
