Overview

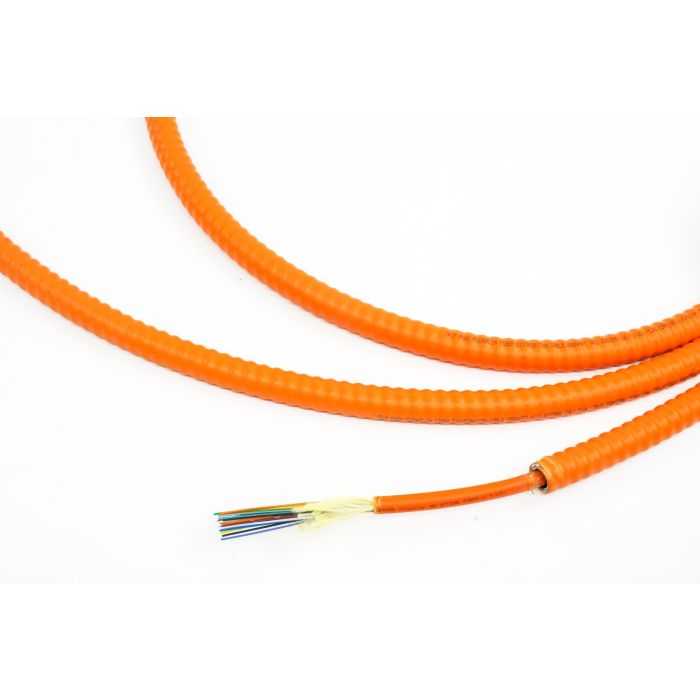

This TLC indoor/outdoor distribution cable features 24 multimode 62.5/125um fibers protected by aluminum interlocking armor. Designed for versatility, this cable is suitable for both internal and external environments and is rated for plenum installations. It incorporates Corning® InfiniCor®300 optical fiber for consistent signal transmission.
Key Features
-
Aluminum Interlocking Armor: Provides robust mechanical protection for the internal fibers, eliminating the need for separate conduit installation.
-
Plenum-Rated Jacket: Constructed with materials suitable for installation in building air-handling spaces, meeting safety requirements for flame spread and smoke generation.
-
Indoor/Outdoor Rating: Engineered for use in both interior and exterior environments, allowing for continuous cable runs between building locations.
-
24-Fiber Configuration: Contains 24 individual 900um tight-buffered fibers, facilitating high-density signal distribution.
-
Corning® InfiniCor®300 Fiber: Utilizes 62.5/125um multimode optical fiber from a recognized manufacturer to maintain specified transmission characteristics.
Technical Specifications
| Attribute |
Specification |
| Fiber Count |
24 |
| Fiber Type |
Multimode 62.5/125um (OM1) |
| Fiber Brand |
Corning® InfiniCor®300 |
| Construction |
Distribution |
| Armor Type |
Aluminum Interlocking Armor |
| Jacket Rating |
Plenum |
| Outer Diameter (OD) |
7.8mm |
| Jacket Color |
Orange |
| Buffered Fiber Size |
900um |
