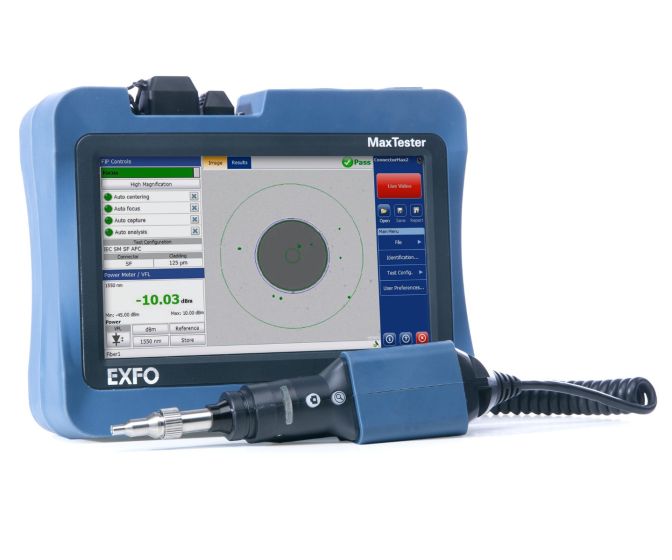

TKMAXFIP430B EXFO Handheld Display with Full Auto Digital Inspection Probe
Rugged tablet inspired design with latest innovations in automated connector and fiber certification. Features a bright 7-inch touchscreen display. Power meter and VFL options. Available automatic fiber image centering to reduce test time.

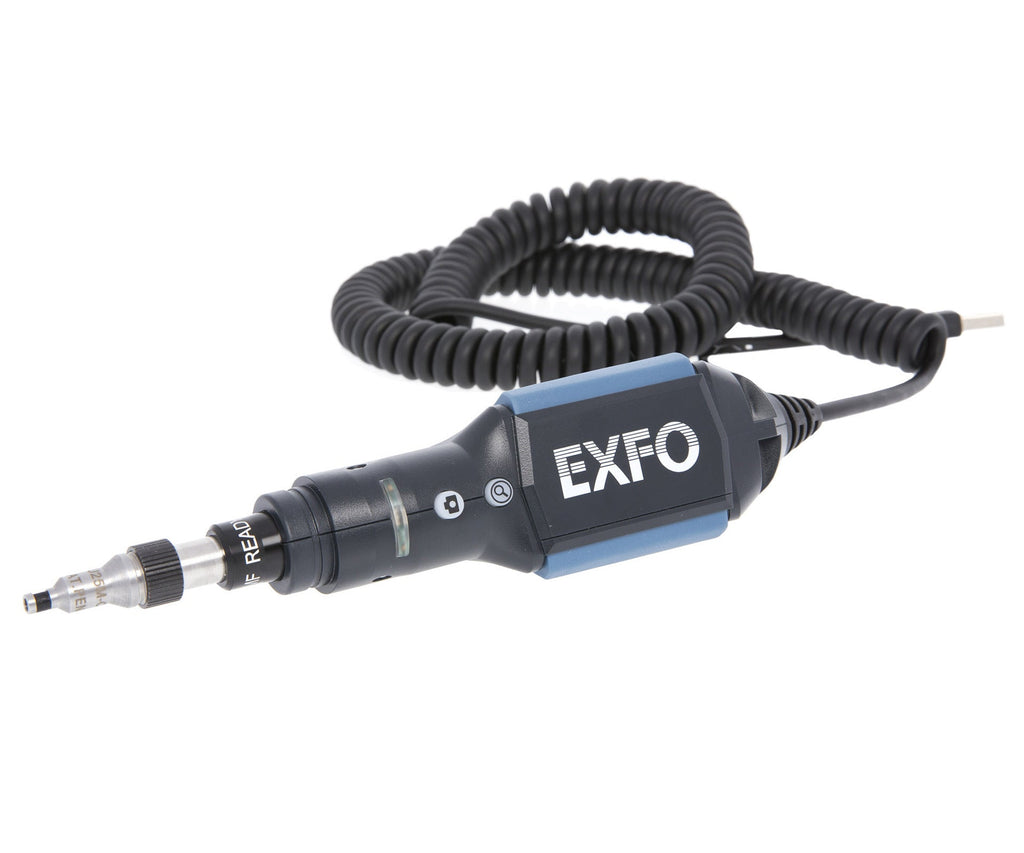

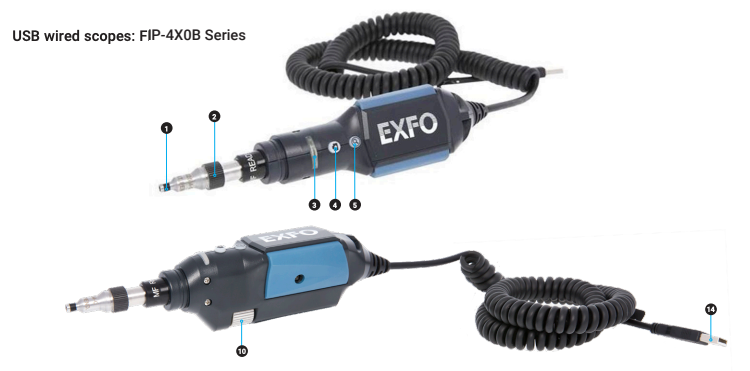

The EXFO TK-MAX-FIP-FIP-430B-UPC Fiber Inspection Kit, designed for fully-automated connector and fiber inspection, features the TK-MAX-FIP Intelligent Connector and Fiber Certifier with color 7" touchscreen TFT, 2GB data storage, USB 2.0 interfaces and up to 1Gig RJ-45 built-in interface. The FIP-430B digital video inspection probe, with UPC FC-SC bulkhead tip plus 2.5mm universal patchcord tip, offers triple magnification and automated functions - focus adjustment, PASS-FAIL analysis and image centering. ConnectorMax2 Software is provided for assessment of fiber connector quality.
This fiber inspection kit also includes a protective cap and cord assembly, AC adapter charger, battery, kick stand, plastic case for tips, soft pouch, software (on CD), instruction manual, certificate of compliance and soft carry case.
- Rugged tablet
- 7 inch touch screen display
- Auto Focus
- Auto Centering

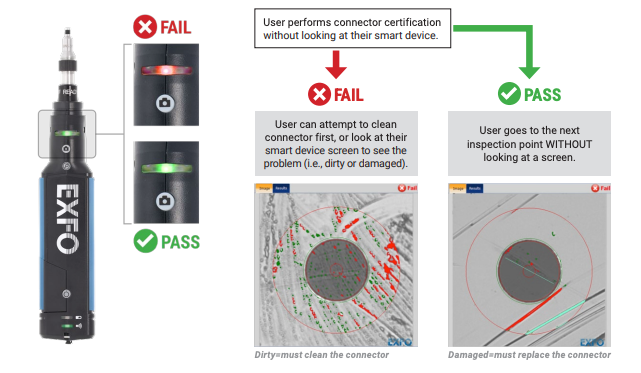

- Auto Pass/Fail Analysis Software
- Accepts UPC or APC Connector and Adapter Tips

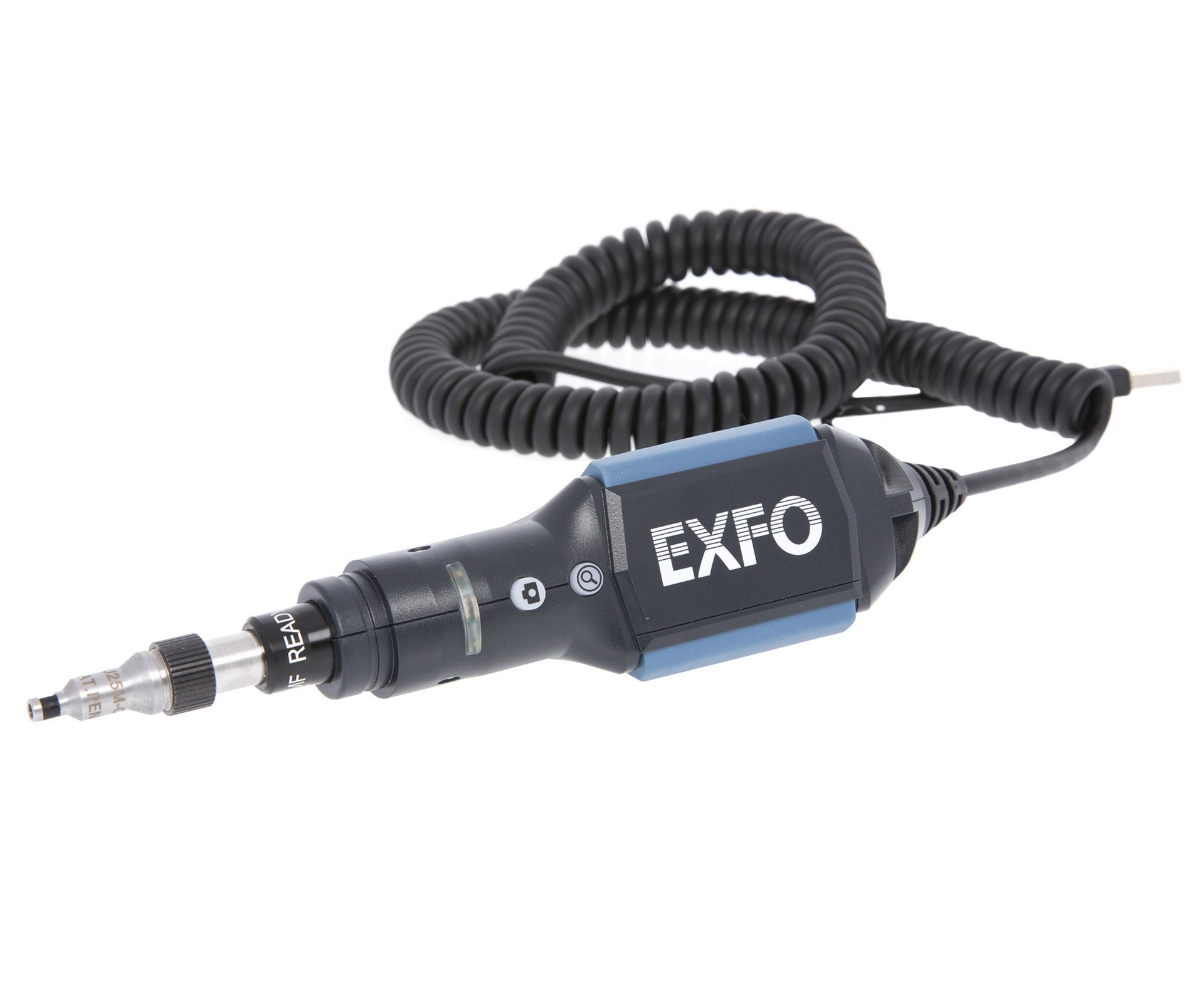

USB FIBER INSPECTION SCOPE SPECIFICATIONS
- Size(H x W x D): 47mm x 42mm x162mm (1 7/8 inches x 6 1/8 inches x 2 inches)
- Weight: 0.3 kg(0.66 lb)
- Resolution: 0.55um
- Camera Sensor: Five-megapixel CMOS
- Visual Detection Capability: <1 um
- Field of View: 304um x 304um (high magnification), 608um x 608um(mid magnification), 912um x 912um(low magnification)
- Light Source: Blue LED
- Lighting Technique: Coaxial
- Capture Button: Available on all models
- Magnification Button: Available on all models
- Digital Magnification: Three Levels
- Connector: Minimum USB 2.0
INCLUDED ACCESSORIES
- Video inspection scope, bulkhead and patchcord tips
- ConnectorMax 2 software
- FIPT-BOX Compartmentalized plastic case for tips
- GP-3108 Soft pouch
- GP-2175 Protective cap and cord assembly
Product Spec Sheet
