THKM100B-M - 48.6 mm x 48.6 mm Kinematic Platform Mount
- Two 80 TPI Adjusters for ±3° or ±4° of Fine Tip and Tilt Control
- Platform Can Be Oriented Horizontally or Vertically
- Designed for Use with Clamping Arms (Sold Below)
- Removable Knobs Expose Adjuster Screws with Hex Socket
- #8 (M4) Through Holes in Back Plate of Mounts for Ø1/2" Post Mounting
- Fabricated from Black Anodized Aluminum

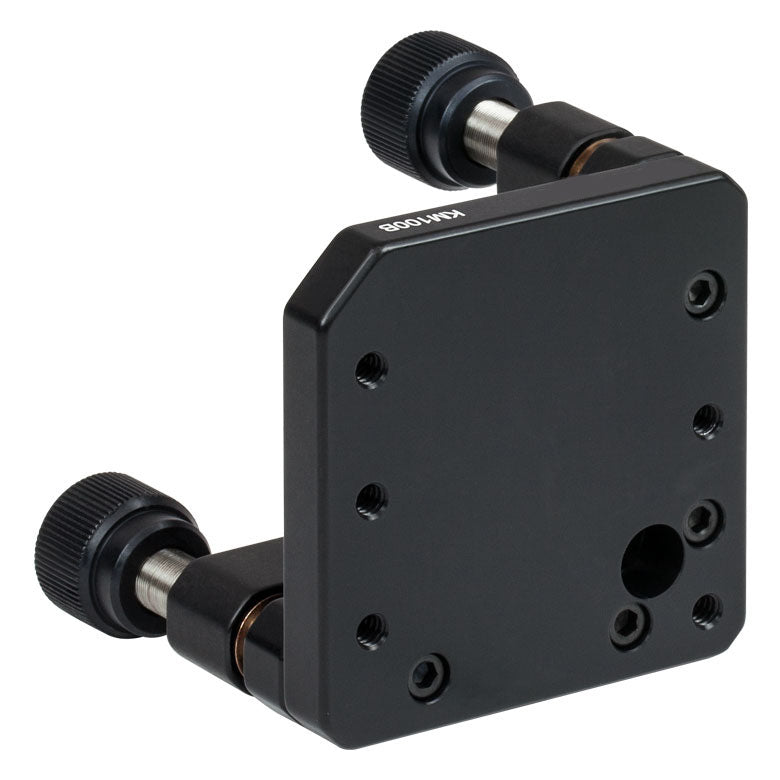

THKM100B(-M) and THKM200B(-M) Kinematic Platform Mounts provide kinematic control for prisms and non-standard optics. Each contains several 6-32 (M4) tapped holes for mounting our THPM3(-M) or THPM4(-M) Clamping Arms (sold below). The THKM200B(-M) additionally contains five 1/4"-20 (M6) tapped holes and four #8 (M4) counterbores that provide direct mechanical compatibility with standard optomechanics. The design used in the THKM100B(-M) and THKM200B(-M) offers an unobstructed path from any direction by positioning the knobs below the mounting plane, as shown in the photo to the right.
Product Specification Sheet
| Kinematic Platform Mount Specifications |
| Item # |
Mounting Platform |
Adjuster Thread |
Angular Range |
Post Mounting |
|
| Dimensions |
Tapped Holesa
|
Clearance Holes |
| THKM100B |
1.92" x 1.92"
(48.6 mm x 48.6 mm) |
6-32 (5 Places) |
N/A |
1/4"-80 |
±4° |
#8 Counterbore (3 Places) |
|
| THKM200B |
2.90" x 2.90"
(73.7 mm x 73.7 mm) |
6-32 (4 Places)
1/4"-20 (5 Places) |
#8 (4 Places) |
±3° |
#8 Counterbore (7 Places) |
|
| THKM100B-M |
48.6 mm x 48.6 mm
(1.92" x 1.92") |
M4 (5 Places) |
N/A |
±4° |
M4 Counterbore (3 Places) |
|
| THKM200B-M |
73.7 mm x 73.7 mm
(2.90" x 2.90") |
M4 (4 Places)
M6 (5 Places) |
M4 (4 Places) |
±3° |
M4 Counterbore (7 Places) |
|
