Description

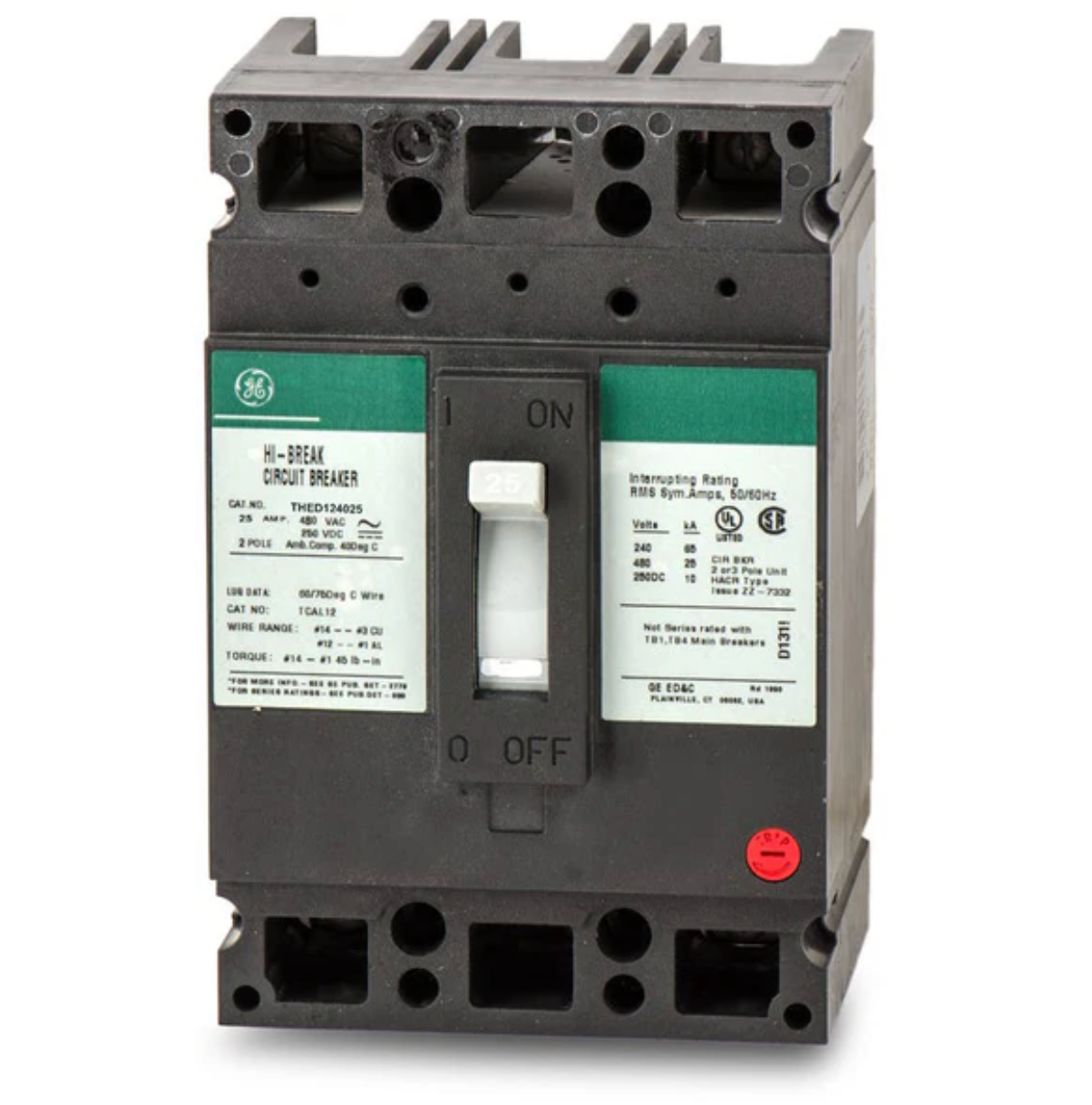

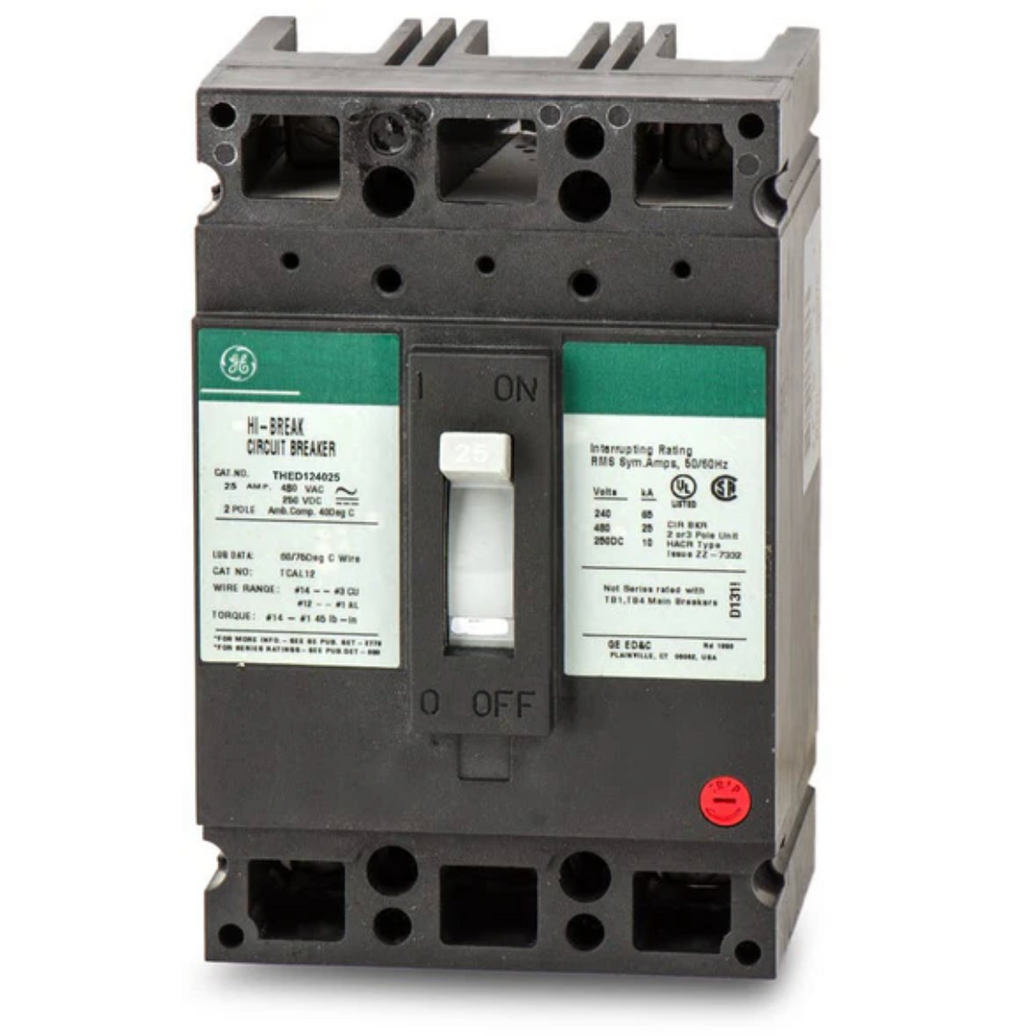

The General Electric THED124025 is a 2-pole molded case circuit breaker designed to provide dependable overcurrent protection in 480-volt systems. With a 25-amp rating and a thermal-magnetic trip unit, it delivers accurate response to overload and fault conditions. This breaker is suited for commercial and industrial distribution equipment requiring a compact, bolt-on protective device with high interrupting capacity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Circuit Breaker |
| Part Number |
THED124025 |
| Subcategory |
Molded Case |
| Series |
E-150 Line |
| Frame Type |
THE / TED Frame |
| Type |
THED |
| Amperage Rating |
25A |
| Voltage Rating |
480 VAC |
| Poles |
2 |
| Phase |
1 |
| Interrupting Rating |
25kA @ 480V |
| Trip Unit |
Thermal Magnetic |
| Trip Functions |
Long-Time & Instantaneous |
| Mounting Type |
Bolt-On |
| Connection Type |
Feed-Thru |
| Terminal Type |
Line and Load Side Lugs |
| Temperature Rating |
–25°C to 70°C |
| Certifications |
UL 489, ANSI C37 |
| Weight |
2 lbs |
Information About THED124025
The THED124025 is part of GE’s E-150 Line series, built on the THE/TED frame platform for compatibility with a wide range of GE panelboards and switchboards. Its molded case design ensures durability, while the thermal-magnetic trip unit provides long-time and instantaneous protection tailored for demanding electrical environments. The breaker supports bolt-on mounting, making it suitable for installations where secure mechanical fastening is required. Its 25kA interrupting rating at 480 volts allows it to perform reliably in high-fault industrial applications.
Key Features:
- 25A Thermal-Magnetic Trip: Ensures precise overload and short-circuit protection.
- 2-Pole Configuration: Protects two conductors in single-phase 480V systems.
- High Interrupting Rating: Rated at 25kA at 480V for robust fault-handling capability.
- Bolt-On Mounting: Provides secure mechanical installation in compatible GE distribution panels.
- E-150 Line / THE Frame Construction: Ensures compatibility with GE’s industrial circuit protection platforms.
- UL 489 and ANSI Certified: Meets industry standards for electrical safety and performance.
- Wide Temperature Operating Range: Suitable for environments from –25°C to 70°C.
- Feed-Thru Terminal Design: Supports straightforward line and load lug connections.
The THED124025 delivers the reliability and precision required for dependable molded case circuit protection in commercial and industrial power systems.
