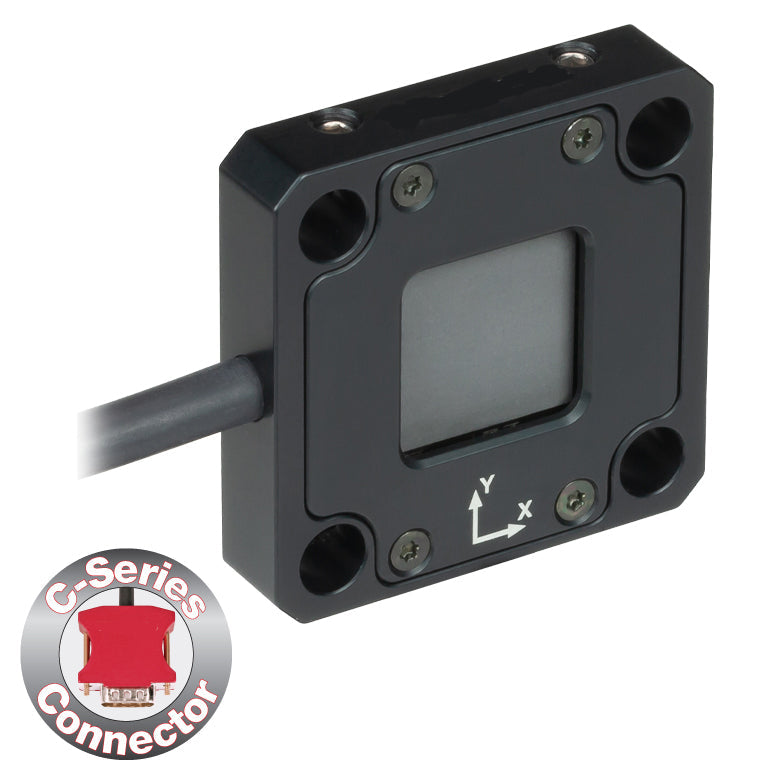

TH-S440C - Thermal Power Sensor Head, Position Sensing, 0.19 - 20 µm, 5 W, 17 mm x 17 mm

TH-S440C - Thermal Power Sensor Head, Position Sensing, 0.19 - 20 µm, 5 W, 17 mm x 17 mm

Product Drawing

Wavelength Range	190 nm - 20 µm
Optical Power Range	0.5 mW - 5 W
Input Aperture Size	17 mm x 17 mm
Max Optical Power Density	1.5 kW/cm²
Detector Type	Four Thermopiles in Quadrant Configuration
Linearity	±1%
Resolution^b	50 µW
Measurement Uncertainty^c	±5% at 1064 nm; ±7% for 250 nm - 17 µm
Position Resolution	5 µm
Position Accuracy^d	50 µm (Ø1 mm Circle) 200 µm (Ø6 mm Circle)
Position Repeatability^d	15 µm (Ø1 mm Circle) 100 µm (Ø6 mm Circle)
Response Time^e	<1.1 s
Cooling	Convection (Passive)
Housing Dimensions (Without Adapter)	40.6 mm x 40.6 mm x 8.9 mm (1.60" x 1.60" x 0.35")
Temperature Sensor (In Sensor Head)	NTC Thermistor
Cable Length	1.5 m
Post Mounting	One 8-32 / M4 Universal Tap
30 mm Cage Mounting	Four Ø6 mm Through Holes
Aperture Threads	-
Accessories	-

US-Based Distributor

Wellington, Florida — serving US businesses, agencies & OEMs.

Send a Part Number

Search or send your list — obsolete & current GE Speedtronic, boards & controls.

24-Hour Quotes

US-based specialists reply within 24 hours.

Purchase Orders Welcome

POs accepted from qualified US buyers; cards too.

Product

Name: TH-S440C - Thermal Power Sensor Head, Position Sensing, 0.19 - 20 µm, 5 W, 17 mm x 17 mm
Brand: Fosco Connect
SKU: THS440C
Price: 3272.50 USD
Availability: InStock
