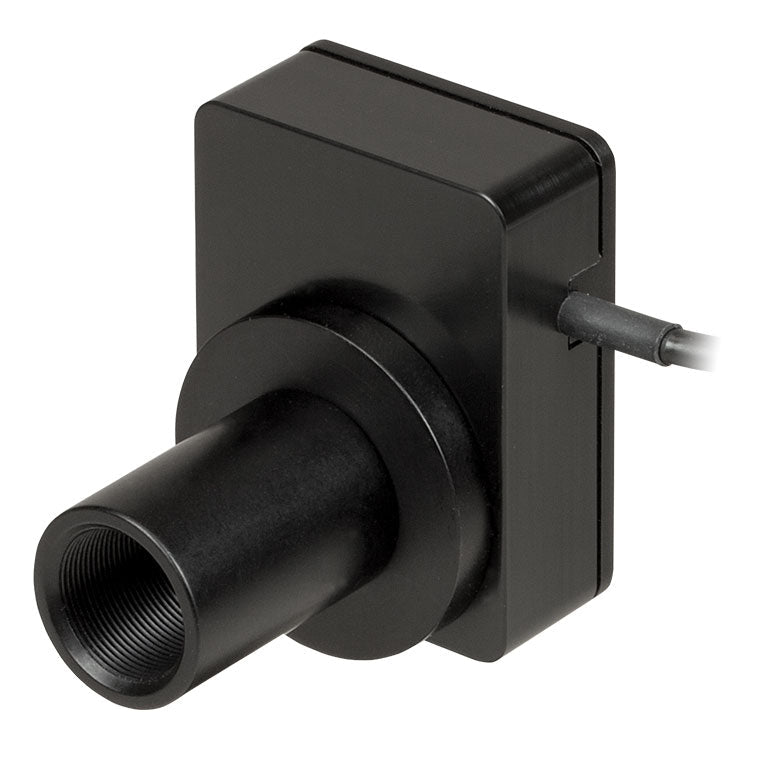

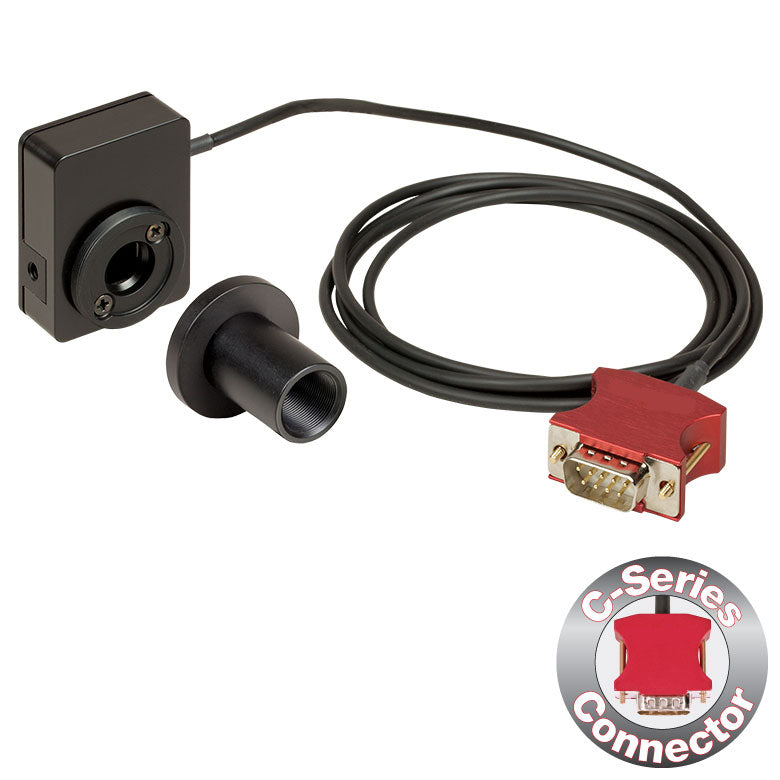

TH-S401C - Thermal Power Sensor Head, Surface Absorber, 0.19 - 20 µm, 1 W, Ø10 mm
Product Drawing
| Wavelength Range |
190 nm - 20 µm |
| Optical Power Range |
10 µW - 1 W (3 Wb) |
| Input Aperture Size |
Ø10 mm |
Active Detector Area
|
10 mm x 10 mm |
| Max Optical Power Density |
500 W/cm² (Avg.) |
| Detector Type |
Thermal Surface Absorber (Thermopile) with Background Compensation |
| Linearity |
±0.5% |
| Resolutionc |
1 µW
|
| Measurement Uncertaintyd |
±3% @ 1064 nm ±5% @ 190 nm - 10.6 µm |
| Response Timee |
1.1 s |
| Cooling |
Convection (Passive) |
Housing Dimensions (Without Adapter) |
33.0 m x 43.0 mm x 15.0 mm (1.30" x 1.69" x 0.59") |
Temperature Sensor (In Sensor Head) |
NTC Thermistor |
| Cable Length |
1.5 m |
| Post Mounting |
Universal 8-32 / M4 Taps (Post Not Included) |
| 30 mm Cage Mounting |
- |
| Aperture Threads |
- |
| Accessories |
Externally SM1-Threaded Adapter Light Shield with Internal SM05 Threading |
