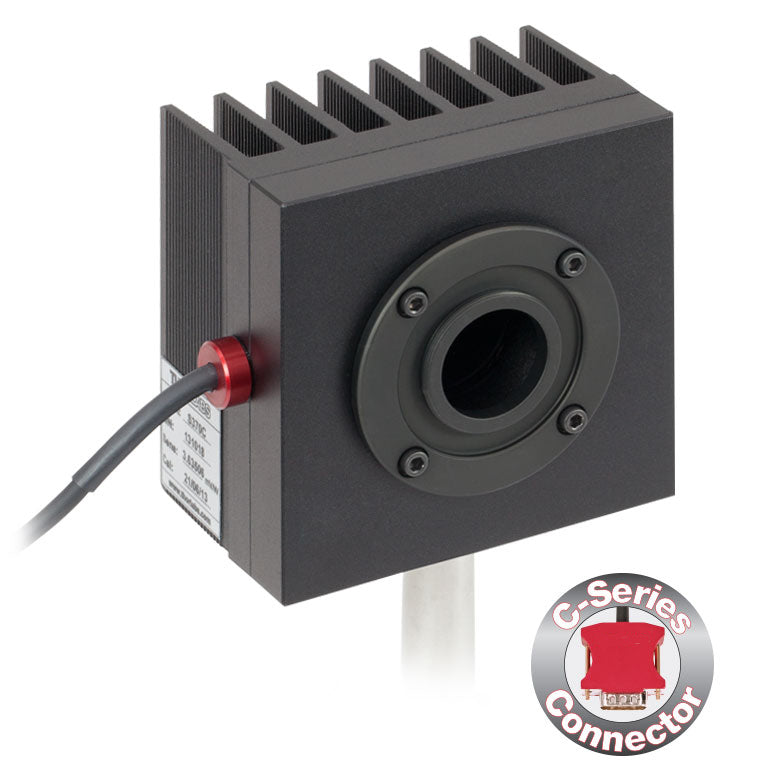

TH-S370C - Thermal Power Sensor Head, Volume Absorber, 0.4 - 5.2 µm, 10 W, Ø25 mm
Product Drawing
| Wavelength Range |
400 nm - 5.2 µm |
| Optical Power Range |
10 mW - 10 W (15 Wb) |
| Input Aperture Size |
Ø25 mm |
Active Detector Area
|
Ø25 mm |
| Max Optical Power Density |
35 W/cm² (Avg.); 100 GW/cm² (Peak) |
| Detector Type |
Thermal Volume Absorber (Thermopile) |
| Linearity |
±1% |
| Resolutionc |
250 µW |
| Measurement Uncertaintyd |
±3% @ 1064 nm ±5% @ 400 nm - 1064 nm |
| Response Timee |
45 s (3 s from 0 to 90%) |
| Cooling |
Convection (Passive) |
Housing Dimensions (Without Adapter, if Applicable) |
75 mm x 75 mm x 51.2 mm (2.95" x 2.95" x 2.02") |
Temperature Sensor (In Sensor Head) |
N/A |
| Cable Length |
1.5 m |
| Post Mounting |
M6 Threaded Taps, Includes Ø1/2" Post, 75 mm Long |
| 30 mm Cage Mounting |
Four 4-40 Tapped Holes |
| Aperture Threads |
- |
| Accessories |
Externally SM1-Threaded Adapter |
