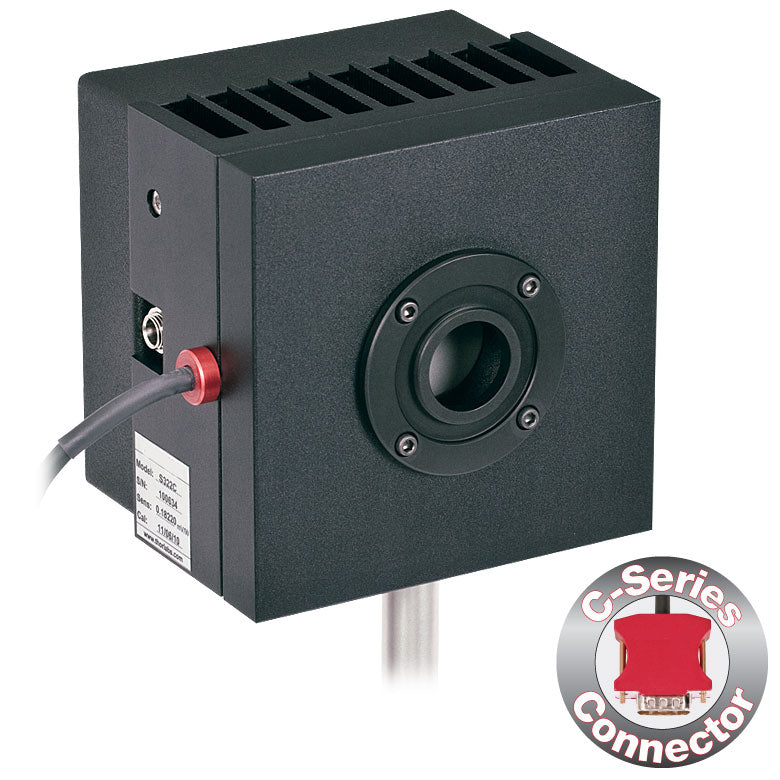

TH-S322C - Thermal Power Sensor Head, Surface Absorber, 0.25 - 11 µm, 200 W, Ø25 mm, Fan Cooled
Product Drawing
| Wavelength Range |
250 nm - 11 µm |
| Optical Power Range |
100 mW - 200 W (250 Wb) |
| Input Aperture Size |
Ø25 mm |
Active Detector Area
|
Ø25 mm |
| Max Optical Power Density |
4 kW/cm² (Avg., CO2) |
| Detector Type |
Thermal Surface Absorber (Thermopile) |
| Linearity |
±1% |
| Resolutionc |
5 mW |
| Measurement Uncertaintyd |
±3% @ 1064 nm ±5% @ 266 nm - 1064 nm |
| Response Timee |
5 s (1 s from 0 to 90%) |
| Cooling |
Forced Air with Fanf
|
Housing Dimensions (Without Adapter, if Applicable) |
100 mm x 100 mm x 86.7 mm (3.94" x 3.94" x 3.41") |
Temperature Sensor (In Sensor Head) |
NTC Thermistor |
| Cable Length |
1.5 m |
| Post Mounting |
M6 Threaded Taps, Includes Ø1/2" Post, 75 mm Long |
| 30 mm Cage Mounting |
Four 4-40 Tapped Holes |
| Aperture Threads |
- |
| Removable Heatsink |
- |
| Accessories |
Externally SM1-Threaded Adapter |
