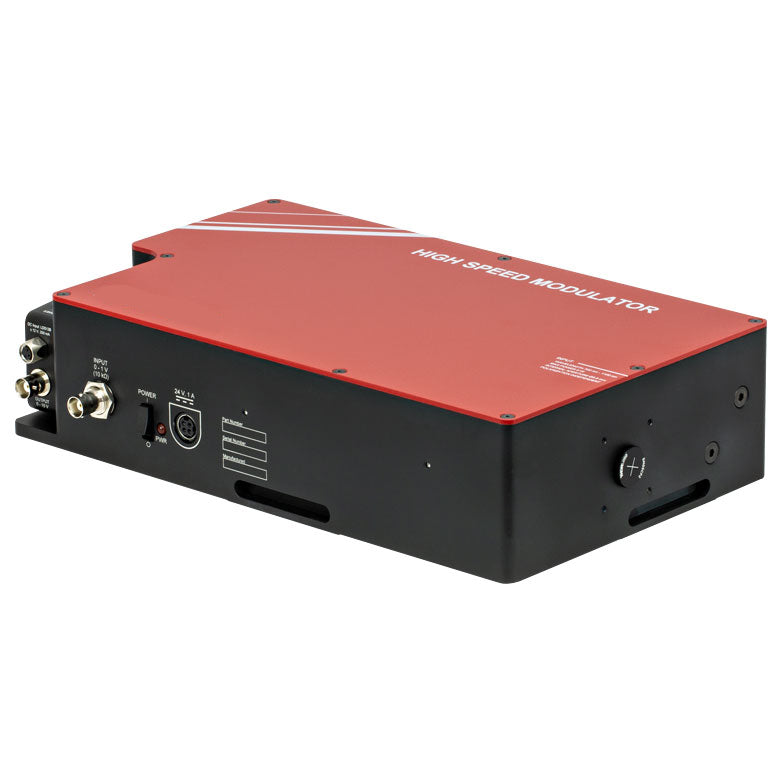

TH-OM6N - Fast Laser Power Modulator, 700 - 1100 nm, >250:1 Contrast, 8-32 Taps

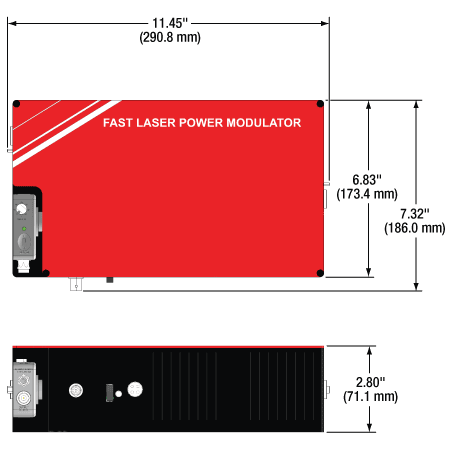

Product Drawing
Contrast Ratio >250:1
Operating Rangea 700 - 1100 nm
Included Photodetector Si Switchable Gain Detector, 320 - 1100 nm, 11 MHz BW, 75.4 mm², Universal 8-32 / M4 Taps
| Input Polarization |
Any |
| Rise Timeb |
1.5 - 5 µs |
| Fall Time |
<2 µs |
| Modulation Frequency |
0 - 20 kHz |
| Modulation Voltagec |
0 - 1 V |
| Input Impedancec |
10 kΩ |

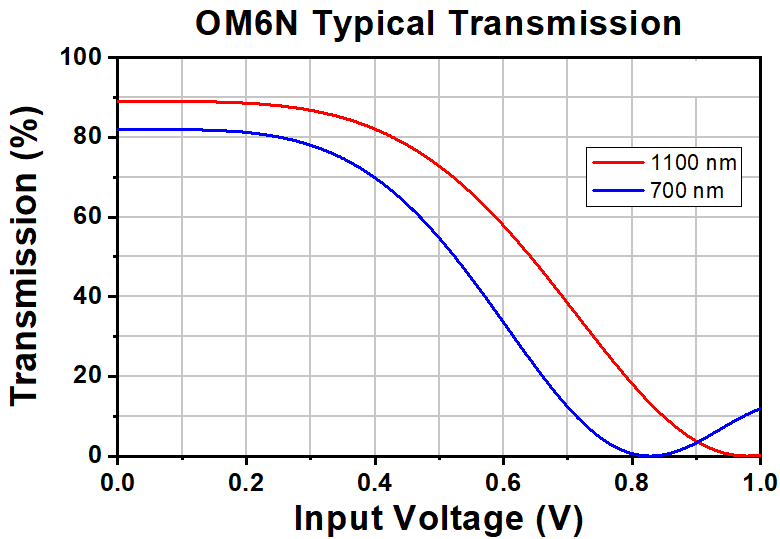

| Transmission (at 800 nm) |
>80% |
| Input Pulse Energy |
500 nJ (Max) |
| Input Optical Power |
10 W (Max) |
| Internal Apertured |
Ø3.8 mm |
| Internal Optical Path Length |
100 cm |
| Dispersion |
<100 fs2
|
| Transmitted Wavefront Errore |
<λ/4 (at 633 nm) |
| Power Supply |
24 V, 1 A |

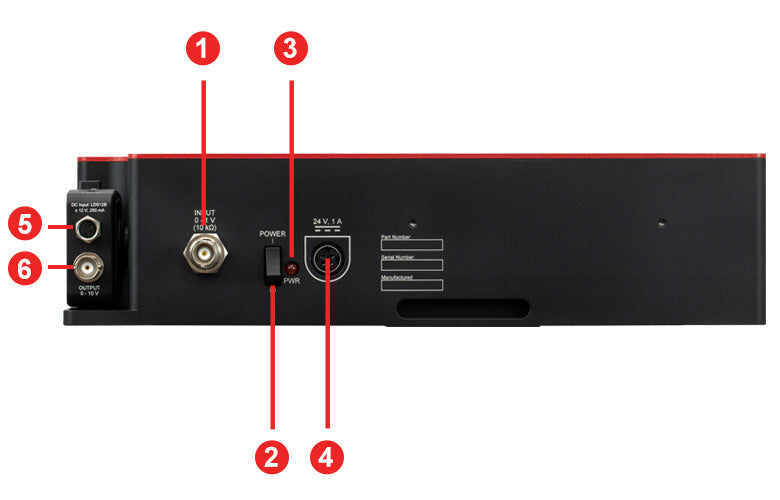

| Power Connector |
R7B Female Connector |
| Operating Temperature |
15 - 35 °C |
| Operating Humidity |
20 - 60% |
| Storage Temperature |
-25 - 70 °C |
| Housing Dimensions (L x W x H) |
11.45" x 6.83" x 2.80" (290.8 mm x 173.4 mm x 71.1 mm) |
