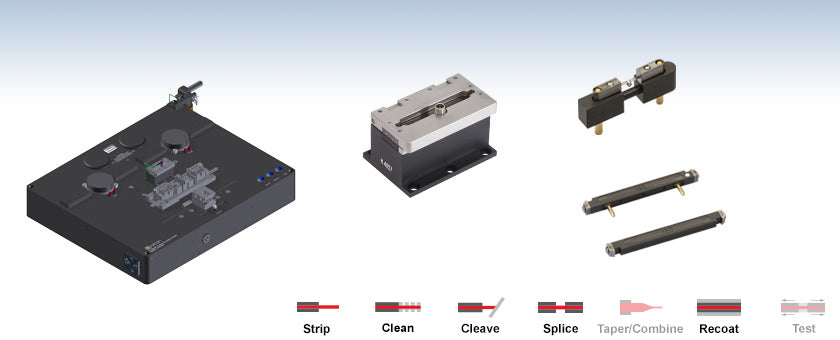

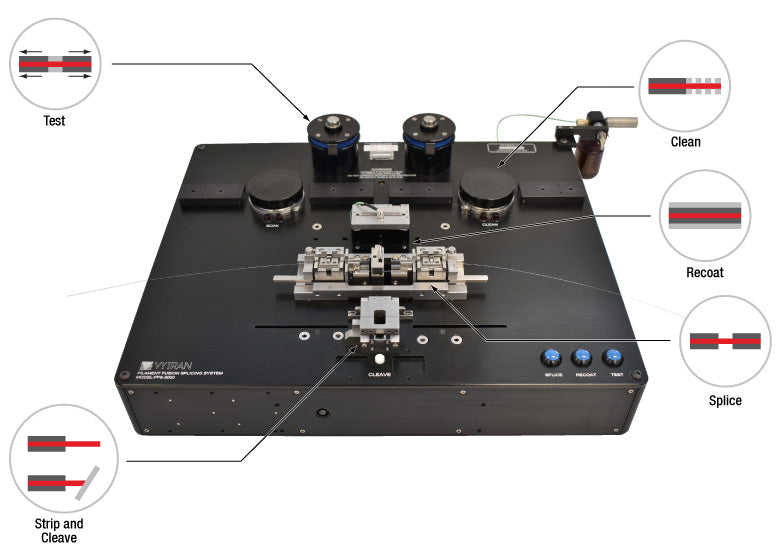

TH-FFS2000PM - Fiber Stripper, Cleaner, Cleaver, Splicer, and Recoater for SM, MM, and PM Fiber - Base Unit
Components Included
- THFFS2000PM Base Unit
- One THFTV7 Tungsten Filament Assembly Installed
- Two THVHG125 Graphite V-Grooves Installed
- THFHBR1 Fiber Holding Blocks
- Fiber Holding Block Transfer Jig
- Power Supply and AC Power Cord
- PC with Monitor, Keyboard, and Mouse
- Large Tank Regulator with Gas Line (For Argon Gas Supply)
- External Vacuum Pump
- Tool Kit
Must Be Purchased Separately
- V-Groove Inserts for Fiber Holding Blocks (Two Required)
- Thermo-Mechanical Stripper Blade Sets (One Required)
- Bottom Cleaver Inserts (Two Required)
- Top Cleaver Inserts (Two Required)
- Additional Graphite V-Groove Inserts
- Additional Fusion Splicing Filaments
- Mold Assembly for Recoater (One Required)
- Recoat Materials (One Required)
- >99.999% Purity Argon Gas
- Soaking and Cleaning Solvents
| Item # |
THFFS2000PM |
| Accepted Fiber Cladding Diameters |
80 to 200 µm |
| Fiber Type |
SM, MM, or PM |
| Thermo-Mechanical Stripper |
| Accepted Coating Materials |
Single or Dual Acrylate |
| Maximum Stripping Temperature |
~130 °F (54 °C) |
| Ultrasonic Cleaner |
| Accepted Cleaning Solvents |
Acetone or Isopropyl Alcohol |
| Cleaning Time |
1 to 120 s |
| Cleave Type |
Flat (0°) |
| Maximum Tensiona
|
2.45 N (0.55 lbs) |
| Splicing |
| Fusion Method |
Filament Fusion |
| Filament Power |
40 W (Max) |
| Alignment Method |
Fully Automated by True Core Imaging® or External Feedback |
| XY Fiber Positioning Resolution |
Stepper Motor Controlled with 0.01 µm Resolution |
| Z Fiber Feed Resolution |
Stepper Motor Controlled with 0.125 µm Resolution |
| Insertion Loss (SMF to SMF) |
0.02 dB (Typical) |
| Tensile Strength |
>250 kpsi (Typical) |
| PM Rotation Specifications |
| Rotation Alignment |
Fully Automated by End-View Alignment Technology or External Feedback |
| Rotation Resolution |
Stepper Motor Controller (0.01° Resolution) |
| Rotation Travel |
190° |
| Extinction Ratio |
-35 dB (Typical) |
| Recoating |
| Recoat Mold |
Quartz |
| Recoat Diameterb
|
Ø280 µm, Ø430 µm, or Ø600 µm |
| General Specifications |
| Size (L x W x H) |
17.0" x 13.9" x 5.0" (432 mm x 353 mm x 127 mm) |
| Weight |
26 lbs (11.8 kg) |
| Power |
12 V DC External Power Supply with Universal AC Input |
| Operating System |
Included Windows® 7 PC with Software GUI Installed |
