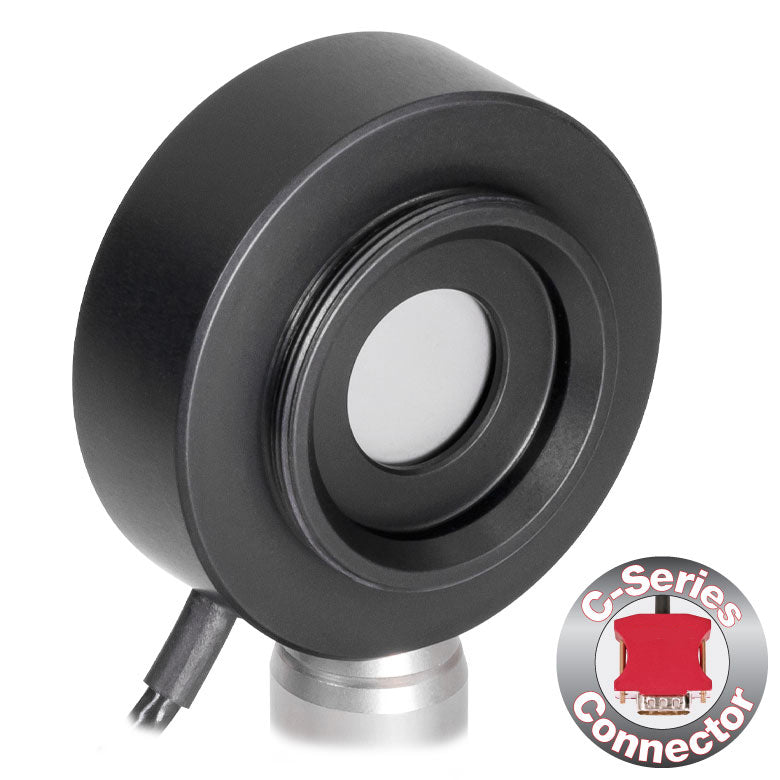

TH-ES408C - Pyroelectric Energy Sensor, Metal Coating, 0.185 - 2.5 µm, 1 J, Ø8 mm, 10 kHz
Product Drawing
| Sensor Dimensionsa |
Ø38 mm x 15 mm |
| Active Detector Area |
50.3 mm2
|
| Input Aperture Size |
Ø8 mm (0.31") |
| Distance to Detector |
2 mm (0.08") |
| Cable Length |
1.5 m (60") |
| Connector |
BNC Male / DE-9 Male, Adapter Included |
| Weight |
0.09 kg |
| Mounting and Accessories |
| Post |
8-32 and M4 Combi Mounting Thread |
| Cage System Mounting |
N/A |
| Aperture Thread |
External SM1 (1.035"-40) Thread
Thread Depth: 3.0 mm (0.12") |
| Detector Type |
Fast Pyroelectric Energy Sensor |
| Wavelength Range |
185 nm - 2.5 µm |
| Optical Energy Range |
100 µJ - 1 J |
Max Repetition Rate
(@ 1 MΩ Load) |
10 kHz |
Max Power Density
(Pulse Width)
|
5 MW/cm2
(10 ns Pulse) |
Max Pulse Energy Density
(Pulse Width)
|
50 mJ/cm2
(10 ns Pulse) |
| Max Average Power |
0.5 W |
| Resolution |
1 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 185 nm - 2.5 µm |
| Thermal Time Constant |
0.07 ms |
| Resolution |
1 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 0.185 - 2.5 µm |
| Housing Dimensionsc |
Ø38 mm x 15 mm |
| Active Detector Area |
50.3 mm2
|
| Cable Length |
1.5 m (60") |
| Post Mounting |
8-32 and M4 Combi Mounting Thread |
| Aperture Thread |
External SM1 (1.035"-40) Thread
Thread Depth: 3.0 mm (0.12") |
| Input Aperture Size |
Ø8 mm |
| Wavelength Range |
0.185 - 2.5 µm |
| Energy Range |
100 µJ - 1 J |
| Max Repetition Rateb |
10 kHz |
Max Power Density
(Pulse Width) |
5 MW/cm2
(10 ns Pulse) |
Max Pulse Energy Density
(Pulse Width) |
50 mJ/cm2
(10 ns Pulse) |
