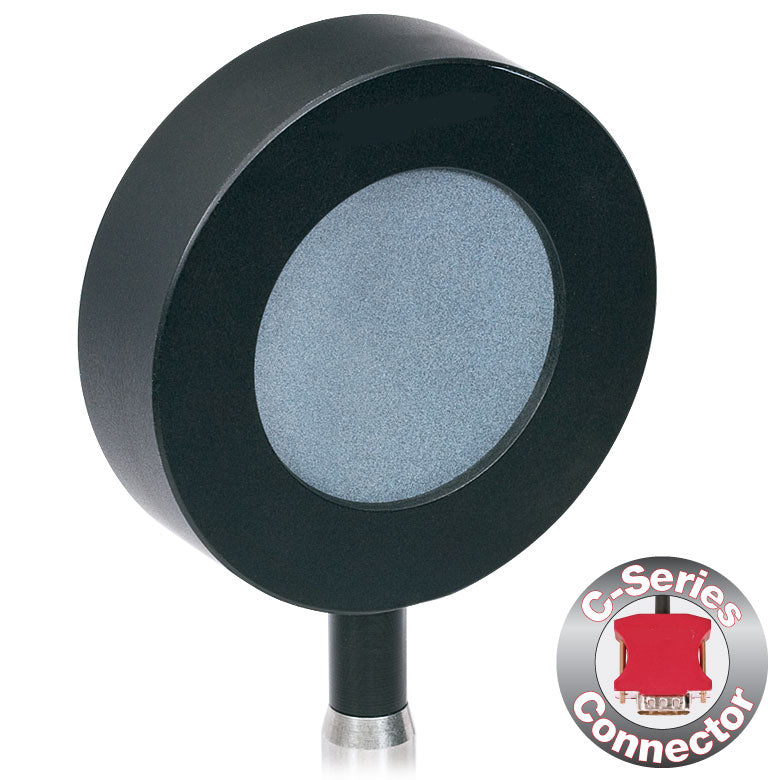

TH-ES220C - Pyroelectric Energy Sensor, Ceramic Coating, 0.185 - 25 µm, 3 J, Ø20 mm, 30 Hz
Product Drawing
| Mechanical Specs |
| Sensor Dimensions |
Ø50 mm x 18 mm |
| Active Detector Area |
314.2 mm2
|
| Input Aperture Size |
Ø20 mm (0.79") |
| Distance to Detector |
2 mm (0.08") |
| Cable Length |
1.5 m (60") |
| Connector |
BNC Male / Sub-D 9-pin Male, Adapter Included |
| Weight |
0.15 kg |
| Mounting and Accessories |
| Post |
8-32 Mounting Thread,
8-32 and M4 Insulating Adapters Included |
| Cage System Mounting |
Four 4-40 Threaded Holes for
30 mm Cage Systems |
| Aperture Thread |
N/A |
| Coating |
Ceramic |
| Cooling |
Convection |
| Technical Specs |
| Detector Type |
High-Energy Pyroelectric Energy Sensor |
| Wavelength Range |
185 nm - 25 µm |
| Optical Energy Range |
500 µJ - 3 J |
Max Repetition Rate
(@ 1 MΩ Load) |
30 Hz |
Max Power Density
(Pulse Width)
|
65 MW/cm2
(7 ns Pulse @ 355 nm) |
Max Pulse Energy Density
(Pulse Width)
|
0.45 J/cm2
(7 ns Pulse @ 355 nm) |
| Max Average Power |
5 W |
| Resolution |
25 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 185 nm - 25 µm |
| Thermal Time Constant |
20 ms |
| Resolution |
25 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 0.185 - 25 µm |
| Housing Dimensions |
Ø50 mm x 18 mm |
| Active Detector Area |
314.2 mm2
|
| Cable Length |
1.5 m (60") |
| Post Mounting |
8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting |
Four 4-40 Threaded Holes for 30 mm Cage Systems |
| Input Aperture Size |
Ø20 mm |
| Wavelength Range |
0.185 - 25 µm |
| Energy Range |
500 µJ - 3 J |
| Max Repetition Rateb |
30 Hz |
Max Power Density
(Pulse Width)
|
65 MW/cm2
(7 ns Pulse @ 355 nm) |
Max Pulse Energy Density
(Pulse Width) |
0.45 J/cm2
(7 ns Pulse @ 355 nm) |
