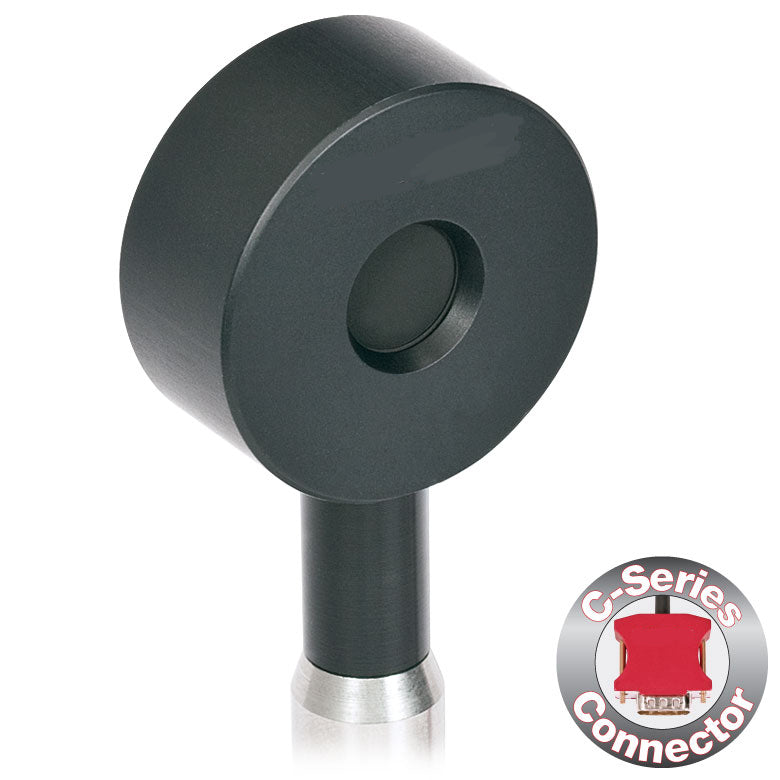

TH-ES145C - Pyroelectric Energy Sensor, Black Coating, 0.185 - 25 µm, 2 J, Ø45 mm, 30 Hz
Product Drawing
| Mechanical Specs |
| Sensor Dimensions |
Ø75 mm x 21 mm |
| Active Detector Area |
1590.4 mm2
|
| Input Aperture Size |
Ø45 mm (1.77") |
| Distance to Detector |
2 mm (0.08") |
| Cable Length |
1.5 m (60") |
| Connector |
BNC Male / Sub-D 9-pin Male, Adapter Included |
| Weight |
0.32 kg |
| Mounting and Accessories |
| Post |
8-32 Mounting Thread,
8-32 and M4 Insulating Adapters Included |
| Cage System Mounting |
N/A |
| Aperture Thread |
N/A |
| Coating |
Black Broadband |
| Cooling |
Convection |
| Detector Type |
Standard Pyroelectric Energy Sensor |
| Wavelength Range |
185 nm - 25 µm |
| Optical Energy Range |
500 µJ - 2 J |
Max Repetition Rate
(@ 1 MΩ Load) |
30 Hz |
Max Power Density
(Pulse Width)
|
8 MW/cm2
(10 ns Pulse) |
Max Pulse Energy Density
(Pulse Width)
|
0.15 J/cm2
(1 µs Pulse) |
| Max Average Power |
0.5 W |
| Resolution |
1 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 185 nm - 25 µm |
| Thermal Time Constant |
20 ms |
| Resolution |
1 µJ |
| Linearity |
±1% |
| Measurement Uncertainty |
±5% @ 185 nm - 25 µm |
| Housing Dimensions |
Ø75 mm x 21 mm |
| Active Detector Area |
1590.4 mm2
|
| Cable Length |
1.5 m (60") |
| Post Mounting |
8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting |
N/A |
| Input Aperture Size |
Ø45 mm |
| Wavelength Range |
0.185 - 25 µm |
| Energy Range |
500 µJ - 2 J |
| Max Repetition Rateb |
30 Hz |
Max Power Density
(Pulse Width)
|
8 MW/cm2
(10 ns Pulse) |
Max Pulse Energy Density
(Pulse Width) |
0.15 J/cm2
(1 µs Pulse) |
