[shortdesc]L2, Managed [/shortdesc]
[properties]
| Product Name |
Teltonika TSW212 (SKU: TSW212000000) |
| Description |
TSW212 is a Layer 2 managed Ethernet switch with additional Layer 3 features, including DHCPv6 client support and static IPv6 routing, designed for advanced network management in industrial environments. |
| Brand |
Teltonika Networks |
| Product Category |
Managed Ethernet Switches |
| Ethernet Ports |

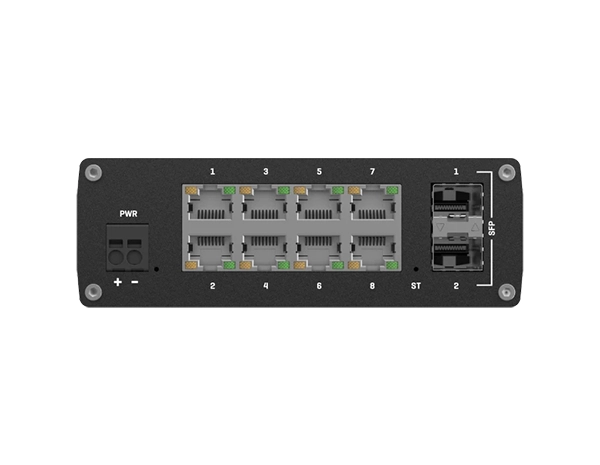

8 x RJ45 ports, 10/100/1000 Mbps, compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards, supporting auto MDI/MDIX crossover |
| SFP Ports |
2 x SFP ports for fiber optic communication |
| Dimensions (W x H x D) |
132 x 44.2 x 122.2 mm |
| Weight |
370 g |
| Casing Material |
Anodized aluminum housing and panels |
| Certifications |
CE, REACH, RoHS, WEEE, UKCA, FCC |
| Safety Standards |
EN IEC 62368-1:2020+A11:2020 |
[/properties]
[specifications]
| MAC Address Table Size |
8K entries |
| Bandwidth (Non-blocking) |
20 Gbps |
| Jumbo Frame Support |
9600 bytes |
| Packet Buffer |
1.5 MB |
| IPv6 Support |
DHCPv6 client, Static IPv6 routing |
| Power Supply |
4-pin industrial DC power socket |
| Input Voltage Range |
9 – 57 VDC |
| Power Consumption |
Idle: 2.4 W / Max: 6.8 W |
| Mounting Options |
DIN rail or surface mounting |
| LED Indicators |
1 x Power LED, 8 x Ethernet link/activity LEDs, 2 x SFP status LEDs |
| Ingress Protection Rating |
IP30 |
| Operating Temperature |
-40°C to 75°C |
| Operating Humidity |
10% to 90% non-condensing |
[/specifications]

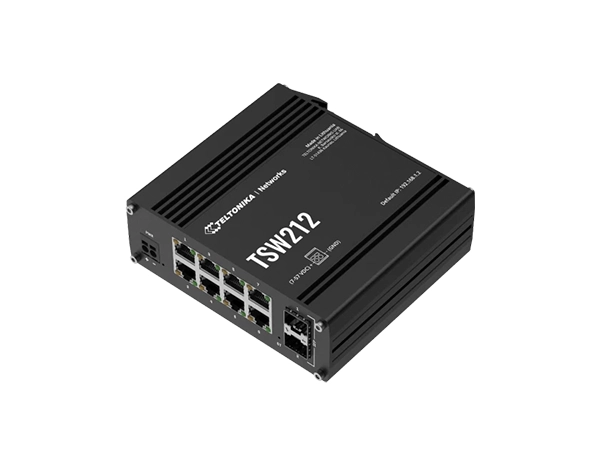

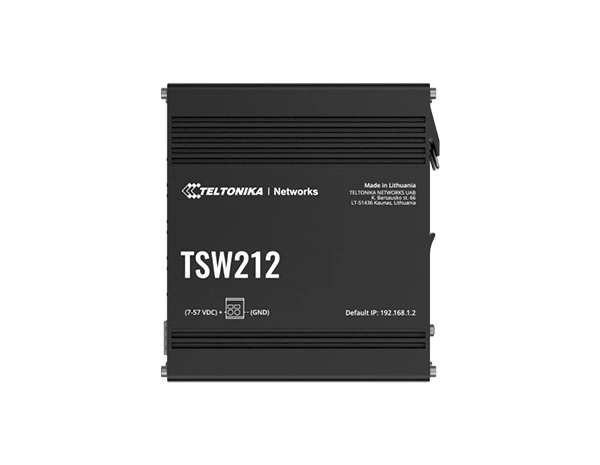

TELTONIKA TSW212 Layer 2 Managed Ethernet Switch with IPv6 Support (TSW212000000)
The Teltonika TSW212 is a Layer 2 managed Ethernet switch with 8 Gigabit Ethernet ports and 2 SFP ports for fiber communication. It features IPv6 support, industrial protocol compatibility, and robust performance in harsh environments, making it ideal for industrial and networking applications.
Key Features:
- 8 x Gigabit Ethernet ports and 2 x SFP ports
- IPv6 and Layer 3 feature support
- Industrial protocol compatibility
- Operating temperature: -40°C to 75°C
