[shortdesc]
- Teltonika TSW110
- Ethernet Switch
- Reliable Networking
- High-Speed Data Transmission
- Industrial Grade
[/shortdesc]
[properties]
| Properties |

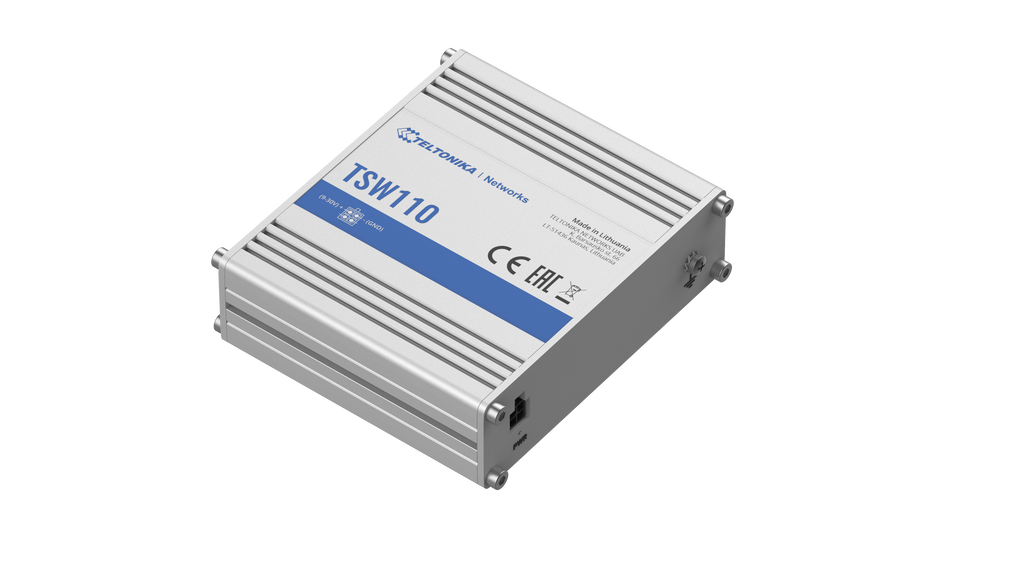

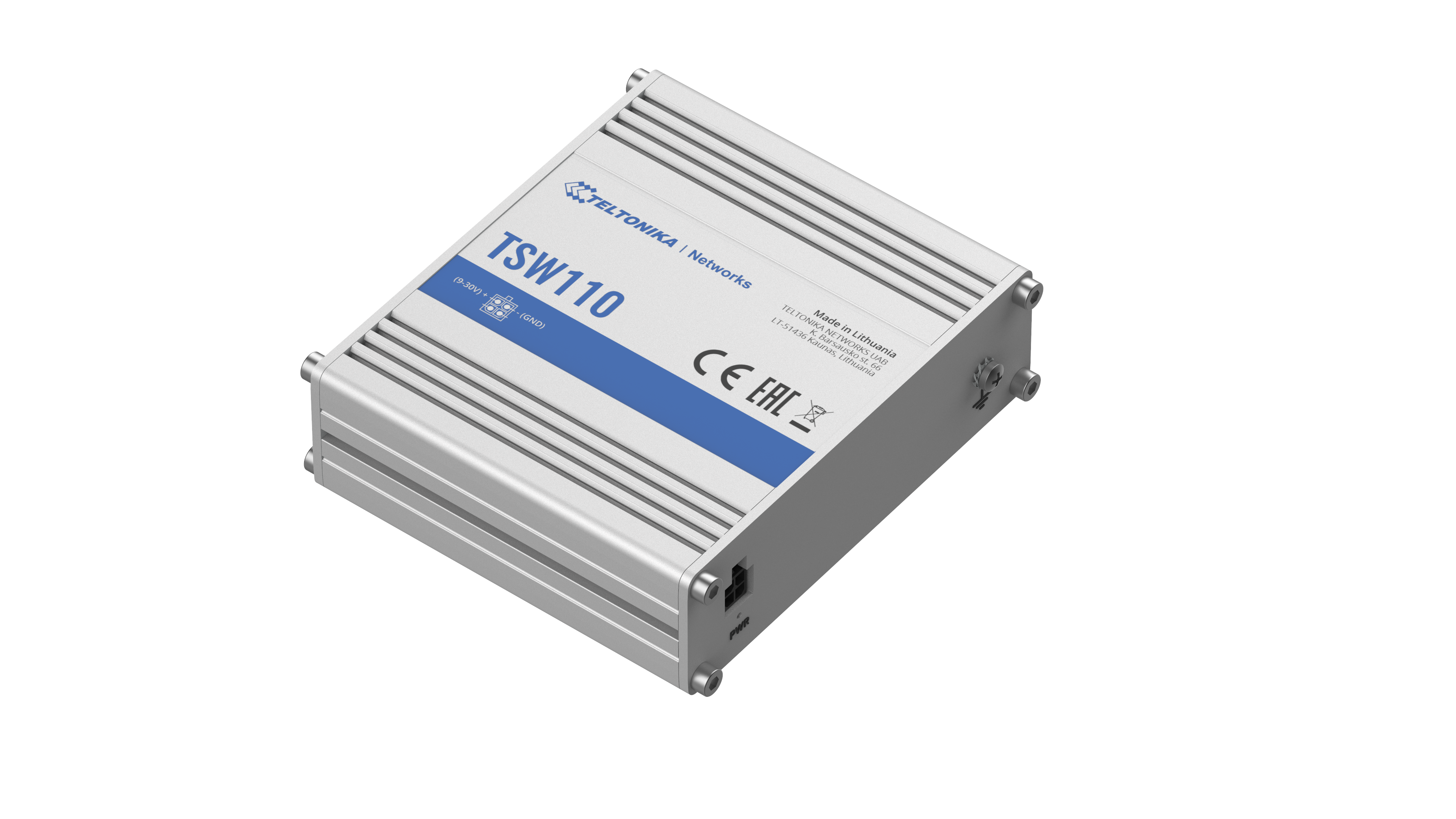

TSW110 (TSW110000010) |
| Description |
Compact and rugged, this unmanaged layer 2 switch offers reliable high-bandwidth connections. With five Gigabit Ethernet ports, TSW110 (TSW110000010) suits industrial use and operates on 9-30 V power supply. |
| Product Family |
Teltonika TWS Switches |
| Product Type |
Switch |
| Powering option |
4pin power socket, 9-30 VDC |
| Ethernet |
5 x 10/100/1000 Ethernet ports |
| Housing |
Aluminum housing with wall or DIN rail mounting option and grounding capability |
| Dimensions |
100 x 30 x 85 mm |
| Weight |
227 g |
| Mounting |
DIN rail and surface mounting options |
| Input voltage range |
9 - 30 VDC |
| Power consumption (idle/max) |
< 0.4 W/ <1.8 W |
[/properties] [specifications]
| Bandwidth |
10 Gbps |
| Packet buffer |
128 KB |
| MAC address table size |
2K entries |
| Auto MDI/ MDI-X Cable Detection |
Yes |
| Status LEDs |
10 x Ethernet, 1 x Power |
| Ingress protection rating |
IP30 |
| Operating temperature |
-40 °C to 75 °C |
| Operating humidity |
10 % to 90 % non-condensing |
[/specifications] [accesories]
| Power adapter |
Input: 0.4 A @100-240 VAC, Output: 9 VDC, 1 A, 4 pin plug |
[/accesories]
Experience reliable networking with the Teltonika TSW110 Ethernet Switch. Offering high-speed data transmission, this industrial-grade switch ensures efficient, secure connectivity. Choose the TSW110 for your networking requirements.
