[shortdesc]
- 5 Ports
- PoE+
- Automotive Switch
- Teltonika TSW101
- Ethernet Switch
- High-Speed Data Transfer
- Robust Performance
- Reliable Networking
[/shortdesc]
[properties]
| Properties |

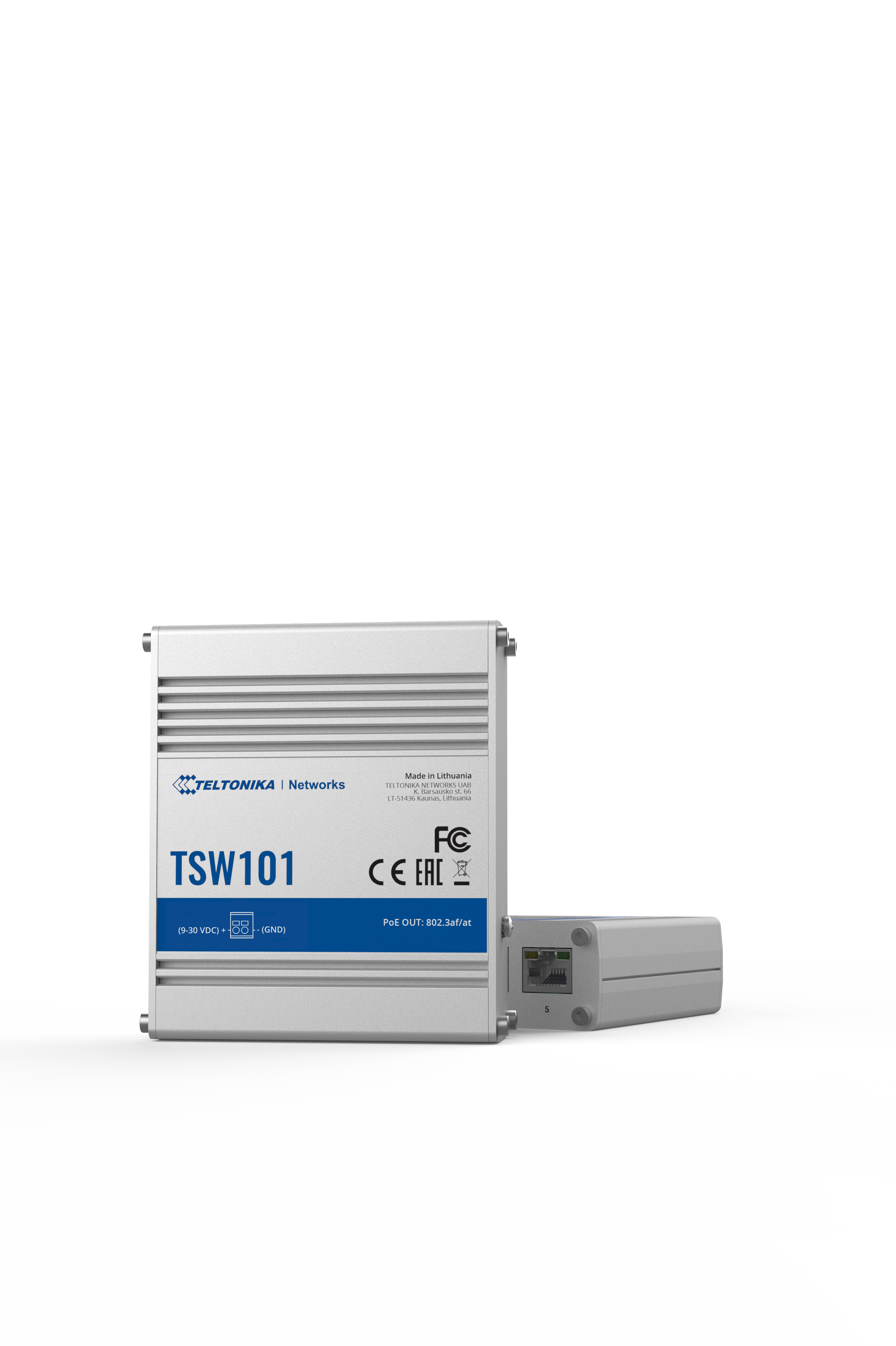

TSW101 SWITCH (TSW101000000) |
| Description |
Teltonika Networks' TSW101 is a compact automotive switch with five Gigabit Ethernet ports and centralized power supply, ideal for in-vehicle data and power connections. |
| Product Family |
Teltonika TWS Switches |
| Product Type |
Switch |
| PoE standart |
802.3af/at (max 30 W per port, total power budget 60W) |
| Ethernet |
5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink |
| Housing |
Aluminum housing with wall or DIN rail mounting option and grounding capability |
| Dimensions |
115 x 32 x 95 mm |
| Weight |
354 g |
| Mounting |
DIN rail or wall mounting (additional kit needed), flat surface placement |
| Input voltage range |
9 - 30 VDC |
| Input voltage range for PoE |
9 - 30 VDC |
| Power consumption (idle/max no PoE/max) |
0.64 W / Max: 2.31 W / PoE Max: 112.58 W |
[/properties] [specifications]
| Bandwidth |
10 Gbps |
| Packet buffer |
128 KB |
| MAC address table size |
2K entries |
| Jumbo frame support |
9216 bytes |
| Auto MDI/ MDI-X Cable Detection |
Yes |
| Status LEDs |
1 x Power LED, 10 x LAN status LED’s |
| Ingress protection rating |
IP30 |
| Operating temperature |
-40 °C to 75 °C |
| Operating humidity |
10 % to 90 % non-condensing |
| Regulatory |
CE, REACH, RoHS, WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark |
| Safety Standards |
EN IEC 62368-1:2020+A11:2020 |
[/specifications] [accesories] [/accesories]
The Teltonika TSW101 Ethernet Switch offers high-speed data transfer and robust performance. Its reliable networking capabilities make it a great choice for various applications. Trust the TSW101 for efficient, reliable networking.
