[shortdesc]

• Industrial Switch
• Teltonika TSW100
• Gigabit Ethernet
• Reliable Networking
• Robust Performance

[/shortdesc]

[properties]

Properties	TSW100 Switch (TSW100000010)
Description	The TSW100 is a PoE-enabled Gigabit Ethernet switch with 5 ports, delivering up to 30 watts per port for efficient industrial networking.
Product Family	Teltonika TWS Switches
Product Type	Switch
PoE standard	802.3af/at (max 30 W per port, total power budget 120W*)
Ethernet	5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink
Housing	Aluminum housing with wall or DIN rail mounting option and grounding capability
Dimensions	115 x 32 x 95 mm
Weight	340 g
Mounting	DIN rail and surface mounting options
Input voltage range	7 - 57 VDC
Input voltage range for PoE	44 - 57 VDC
Power consumption (idle/max no PoE/max)	2 W/9 W/129 W

[/properties] [specifications]

Bandwidth	10 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Auto MDI/ MDI-X Cable Detection	Yes
Status LEDs	1 x Power LED, 10 x LAN status LED’s
Ingress protection rating	IP30
Operating temperature	-40 °C to 75 °C
Operating humidity	10 % to 90 % non-condensing

[/specifications] [accesories]

Power adapter

Input: 1.8 A @100-240 VAC, Output: 48 VDC, 1.3 A, 4 pin plug

[/accesories]

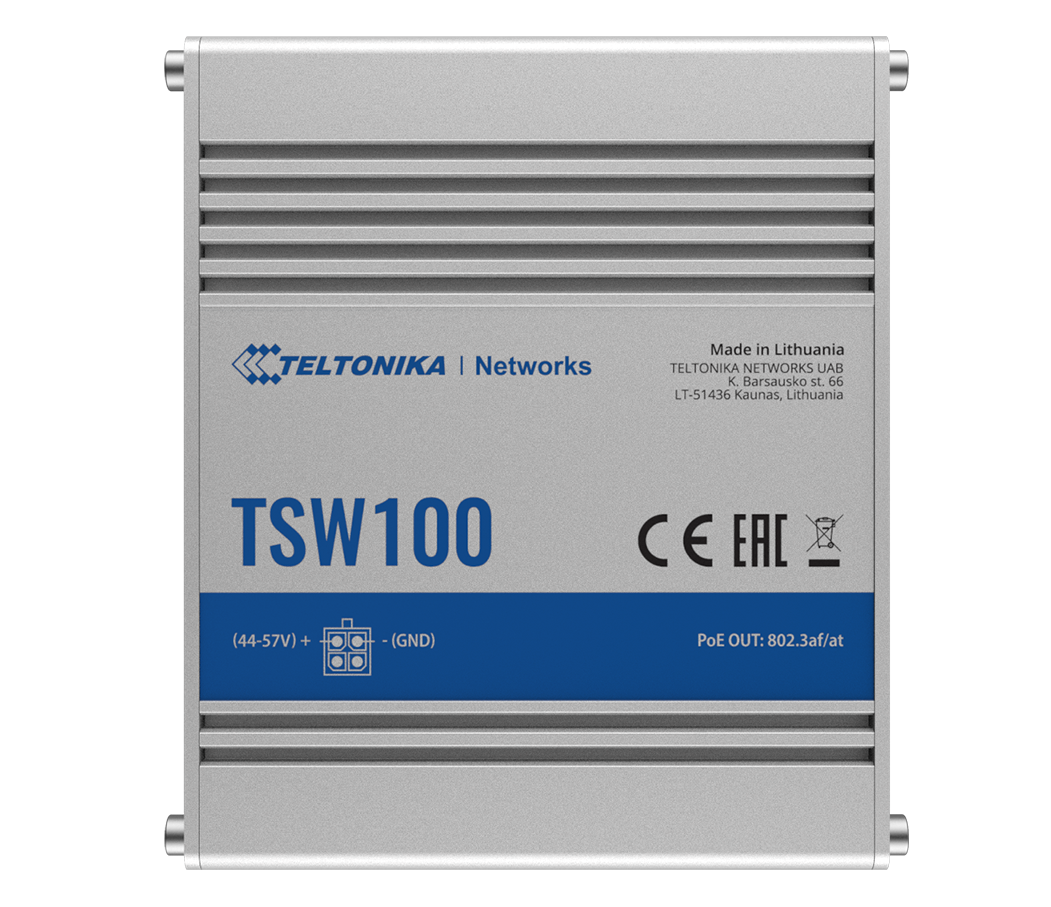

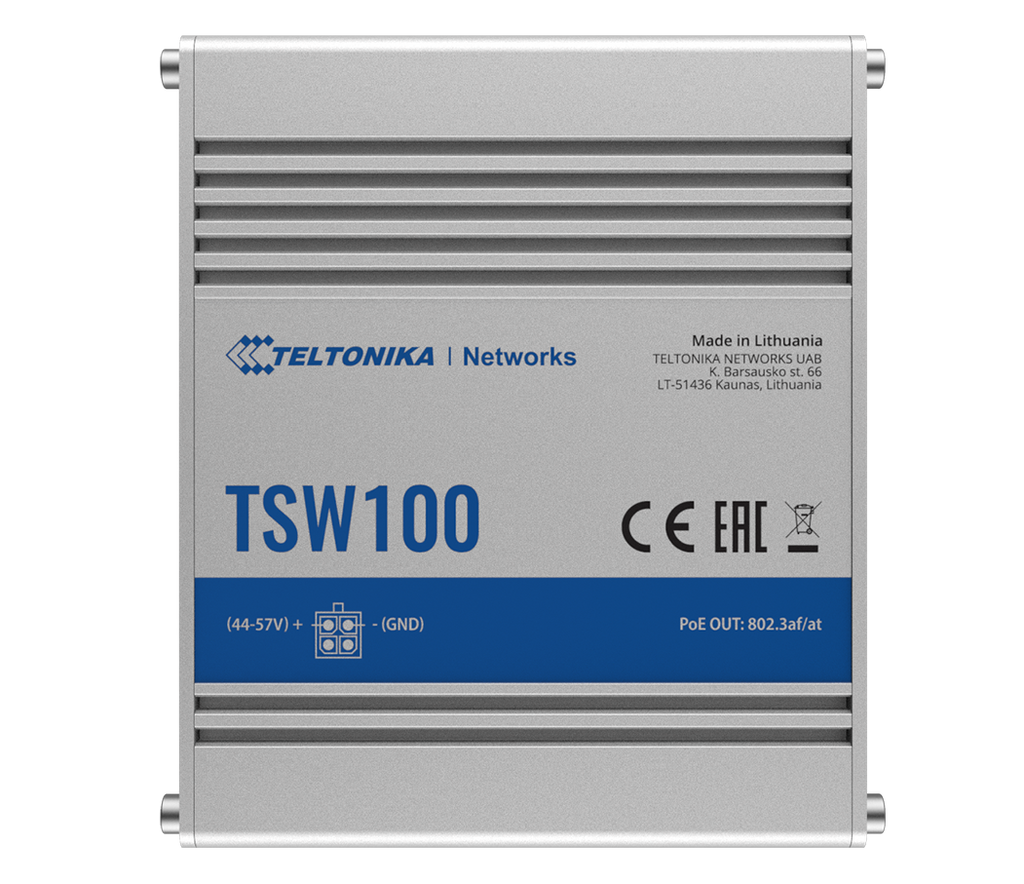

Teltonika TSW100 Switch (TSW100000010)

The TSW100 is the first industrial unmanaged switch from Teltonika Networks. This product features five Gigabit Ethernet ports, with four supporting IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). As a power source equipment (PSE), it facilitates a centralized power supply, delivering up to 30 watts per port and streamlining power installation efforts. Additionally, its 10/100/1000 Mbps Ethernet ports offer a cost-effective high-bandwidth solution for industrial Ethernet networks. This robust unmanaged industrial switch is well-suited for professional applications requiring high bandwidth, where reliable data connectivity and power supply are essential.

Quick Specs:

• 5x 10/100/1000 Mbps RJ45 ports
• PoE ports: Port1-4
• PoE power budget: 120W
• Non-blocking bandwidth: 10 Gbps

Please see the related tabs for the TSW100000010 datasheet and compatible accessories.
