[shortdesc] Outdoor LTE/Wi-Fi/GPS antenna for RUT9-series routers[/shortdesc]
[properties]
| Product Name |
Teltonika PR1ICC60 (SKU: PR1ICC60) |
| Description |
The PR1ICC60 is an outdoor LTE/Wi-Fi/GPS antenna designed to provide reliable omnidirectional signal coverage. It is water and dust-resistant (IP67) and features an integrated mounting bracket for quick and easy pole/mast mounting. |
| Brand |
Teltonika Networks |
| Type |
Outdoor Antenna |
| Product Category |
Antennas |
| Frequency Range |
LTE: 617 ~ 960 MHz, 1700 ~ 2700 MHz, 3300 ~ 4300 MHz; Wi-Fi: 2400 ~ 2500 MHz, 4700 ~ 6000 MHz; GNSS: 1560 ~ 1610 MHz |
| Polarisation |
LTE and Wi-Fi: Vertical; GNSS: Right-Hand Circular Polarization (RHCP) |
| Ingress Protection Rating |
IP67 |
| Weight |
1500 g |
| Mounting Options |
Wall, ceiling, mast |
| Casing Material |
UV-stabilized ABS plastic |
[/properties]
[specifications]
| Radiation Pattern Type |
Omnidirectional |
| Gain |
LTE: Max 4.5 dBi; Wi-Fi: Max 7.5 dBi; GNSS: 28 dBi |
| Impedance |
50 Ohms |
| VSWR |
LTE: < 2.50; Wi-Fi and GNSS: < 2.00 |
| Connector Type |
LTE: 2 x SMA male; Wi-Fi: 2 x RP-SMA male; GNSS: 1 x SMA male |
| Current Consumption (GNSS Antenna) |
2.5 – 6.5 mA |
| Supply Voltage (GNSS Antenna) |
2.5 – 6.5 VDC |
| Cable Types |
4 x RG316, 1 x RG174 |
| Operating Temperature |
-40 °C to 75 °C |
| Certifications |
CE, RoHS |
| Compatibility |
Designed for RUT9-series routers |
[/specifications]

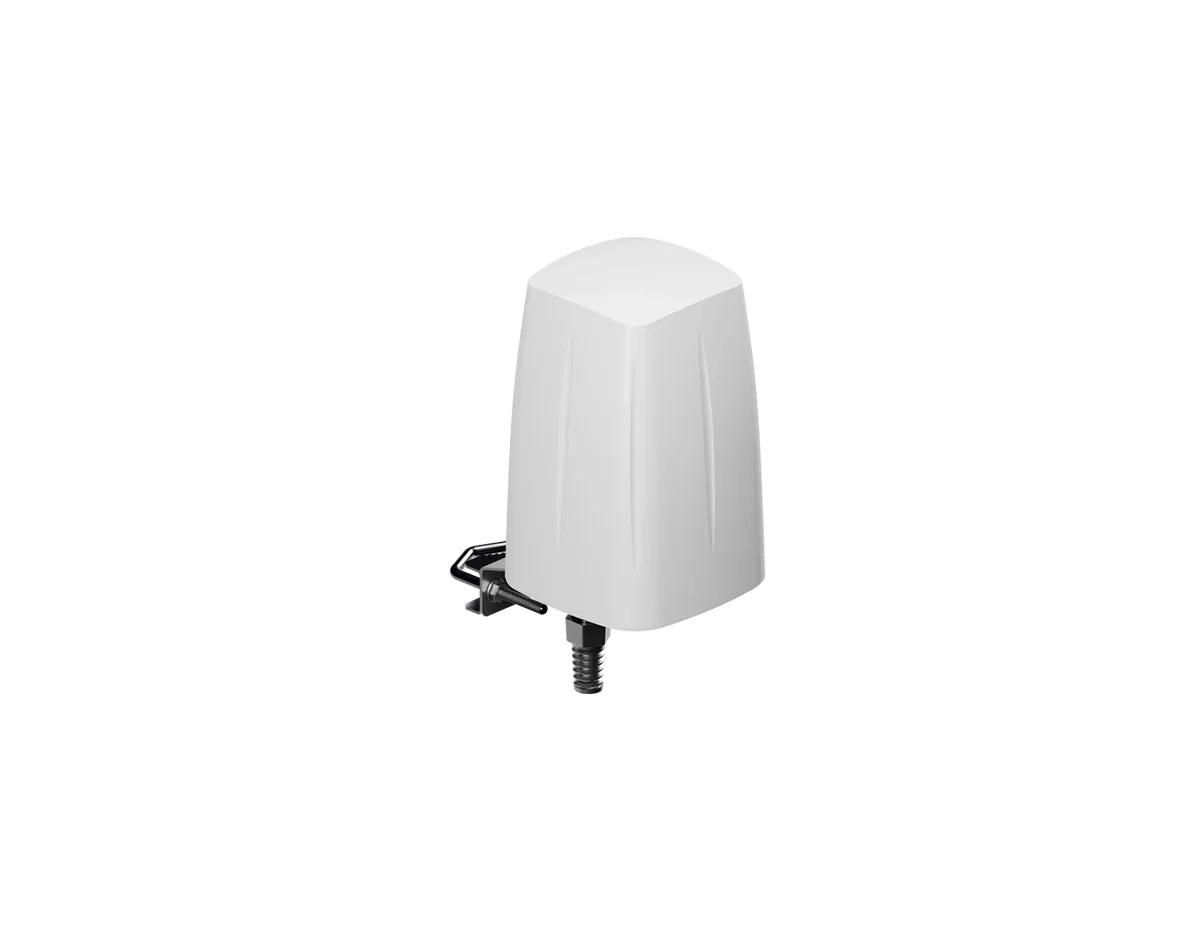

TELTONIKA PR1ICC60 Outdoor LTE/Wi-Fi/GPS Antenna for RUT9-Series Routers
The Teltonika PR1ICC60 is a high-performance outdoor antenna built to optimize LTE, Wi-Fi, and GPS connectivity for RUT9-series routers. Its IP67-rated design ensures durability in harsh environments, while the omnidirectional radiation pattern provides consistent signal reception. This antenna supports multiple frequency bands and includes an integrated mounting bracket for hassle-free installation on walls, ceilings, or masts.
Key Features:
- Enhanced LTE, Wi-Fi, and GPS support
- Durable IP67-rated construction
- Reliable omnidirectional signal coverage
- Simple installation with integrated mounting bracket
