[shortdesc] Outdoor LTE/Wi-Fi antenna for RUTX11 and RUTM11 routers[/shortdesc],
[properties]
| Product Name |
Teltonika PR1IC970 (SKU: PR1IC970) |
| Description |
The PR1IC970 is an outdoor LTE/Wi-Fi/GPS/Bluetooth antenna designed to provide reliable signal coverage from every direction. It is water and dust-resistant (IP67) and features an integrated mounting bracket for quick and easy pole/mast mounting. |
| Brand |
Teltonika Networks |
| Type |
Outdoor Antenna |
| Product Category |
Antennas |
| Frequency Range |
LTE: 617 ~ 960 MHz, 1700 ~ 2700 MHz, 3300 ~ 4300 MHz; Wi-Fi: 2400 ~ 2500 MHz, 4700 ~ 6000 MHz; Bluetooth: 2200 ~ 2700 MHz; GNSS: 1560 ~ 1610 MHz |
| Polarisation |
LTE, Wi-Fi, and Bluetooth: Vertical; GNSS: Right-Hand Circular Polarization (RHCP) |
| Ingress Protection Rating |
IP67 |
| Dimensions (W x H x D) |
160 mm x 80 mm x 45 mm |
| Weight |
400 g |
| Mounting Options |
Pole/Mast mounting with an integrated mounting bracket |
| Casing Material |
UV-stabilized ABS plastic |
[/properties]
[specifications]
| Impedance |
50 Ohms |
| VSWR |
Less than 2:1 (typical) |
| Gain |
LTE: Max 4.5 dBi; Wi-Fi: Max 7.5 dBi; Bluetooth: 2 dBi; GNSS: 28 dBi (with LNA) |
| Connector Type |
5 x SMA Female (2 x LTE, 1 x Wi-Fi, 1 x GNSS, 1 x Bluetooth) |
| Cable Length |
2 meters (RG174) |
| Operating Temperature |
-40°C to 85°C |
| Certifications |
CE, RoHS |
| Compatibility |
RUTX11 and RUTM11 Routers |
[/specifications]

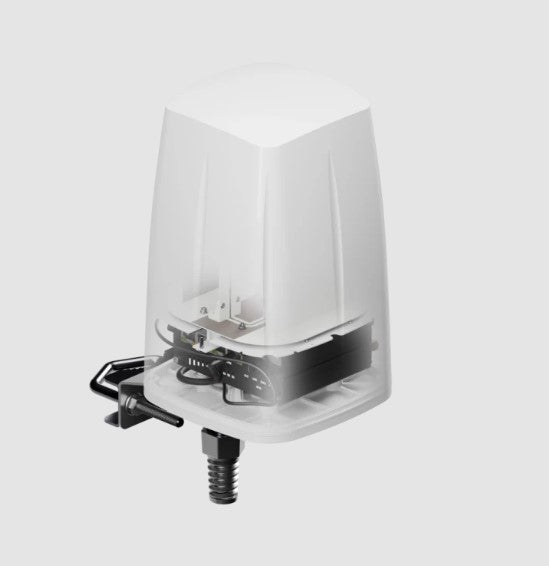

TELTONIKA PR1IC970 Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna for RUTX11 and RUTM11 Routers
The Teltonika PR1IC970 is an outdoor antenna built to optimize LTE, Wi-Fi, GPS, and Bluetooth connections, tailored for RUTX11 and RUTM11 routers. Its omnidirectional design ensures dependable signal reception in all directions, while the IP67-rated casing provides protection against dust and water. Ideal for diverse applications, this antenna mounts easily on walls, ceilings, or masts using its integrated bracket.
Key Features:
- Enhanced connectivity for LTE, Wi-Fi, GPS, and Bluetooth
- Durable IP67-rated construction
- Reliable omnidirectional signal coverage
- Simple installation on multiple surfaces
