[shortdesc] Outdoor LTE/Wi-Fi antenna for RUT2-series routers[/shortdesc]
[properties]
| Product Name |
Teltonika PR1IC860 (SKU: PR1IC860) |
| Description |
The PR1IC860 is an outdoor LTE/Wi-Fi antenna designed to provide reliable omnidirectional signal coverage. It is water and dust-resistant (IP67) and features an integrated mounting bracket for quick and easy pole/mast mounting. |
| Brand |
Teltonika Networks |
| Type |
Outdoor Antenna |
| Product Category |
Antennas |
| Frequency Range |
LTE: 617 ~ 960 MHz, 1700 ~ 2200 MHz, 2300 ~ 2700 MHz, 3300 ~ 3800 MHz; Wi-Fi: 2400 ~ 2500 MHz |
| Polarisation |
Vertical |
| Ingress Protection Rating |
IP67 |
| Dimensions (W x H x D) |
160 mm x 240 mm x 189 mm |
| Weight |
1500 g |
| Mounting Options |
Wall, ceiling, mast |
| Casing Material |
UV-stabilized ABS plastic |
[/properties]
[specifications]
| Radiation Pattern Type |
Omnidirectional |
| Gain |
LTE: Max 4 dBi; Wi-Fi: 6 dBi |
| Impedance |
50 Ohms |
| VSWR |
< 2.00 |
| Connector Type |
LTE: 2 x SMA male; Wi-Fi: 1 x RP-SMA male |
| Cable Types |
3 x RG316 |
| Operating Temperature |
-40 °C to 75 °C |
| Certifications |
RoHS |
| Compatibility |
Designed for RUT2-series routers |
[/specifications]

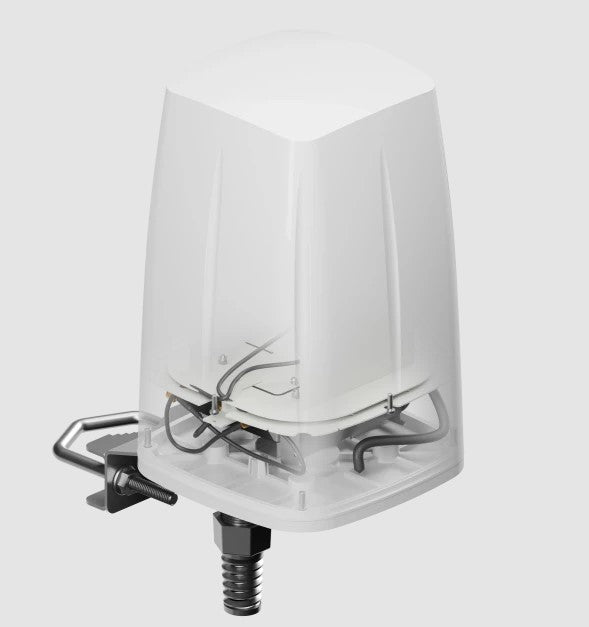

TELTONIKA PR1IC860 Outdoor LTE/Wi-Fi Antenna for RUT2-Series Routers
The Teltonika PR1IC860 is a rugged outdoor antenna designed for LTE and Wi-Fi connectivity, ideal for RUT2-series routers. It offers omnidirectional signal coverage and is built to withstand harsh outdoor environments with its IP67-rated construction. The integrated mounting bracket ensures quick and versatile installation.
Key Features:
- Supports LTE and Wi-Fi
- Durable IP67-rated design
- Easy installation with mounting bracket
