[shortdesc] 4-pin to 4-pin power cable[/shortdesc]
[properties]
| Product Name |
Teltonika PR2PP10B 4-Pin to 4-Pin Power Cable (SKU: PR2PP10B) |
| Description |
The PR2PP10B is a 4-pin to 4-pin power cable designed for secure connections in IoT solutions. It features 4-pin, 3 mm pitch connectors on both ends and is constructed with four 24 AWG stranded wires (0.20 mm²) for reliable power transmission. |
| Brand |
Teltonika Networks |
| Type |
Power Cable |
| Product Category |
Powering Options |
| Subcategory |
AC-DC Power Supply |
| Input Connector |
4-pin, 3 mm pitch |
| Output Connector |
4-pin, 3 mm pitch |
| Cable Specifications |
4 x 0.20 mm² (24 AWG) stranded wires |
| Total Length |
1000 mm |
| RoHS Compliant |
Yes |
| REACH Compliant |
Yes |
| Flammability Rating |
UL 94 V-2 |
[/properties]
[specifications]
| Input Connector |
4-pin, 3 mm pitch |
| Output Connector |
4-pin, 3 mm pitch |
| Cable Specifications |
4 x 0.20 mm² (24 AWG) stranded wires |
| Total Length |
1000 mm |
| Maximum Voltage |
30 VDC |
| Maximum Current |
2:00 ÖÖ |
| Compatible Devices |
BAT120 Uninterruptible Power Supply, RUT200, RUT240, RUT241 routers |
| Weight |
47 g |
| Maximum Voltage |
30 VDC |
| Maximum Current |
2:00 ÖÖ |
| Protection Material |
PVC 60P BLACK |
[/specifications]

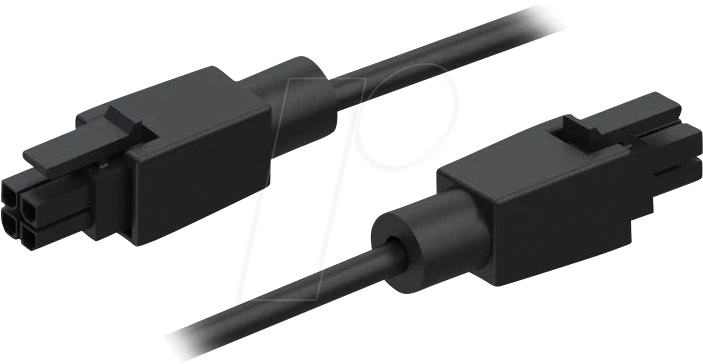

TELTONIKA Power Cable (PR2PP10B)
The Teltonika PR2PP10B is a 4-pin to 4-pin power cable designed for seamless power transfer in Teltonika devices. With a 1-meter length and a 3 mm pitch connector, it supports up to 30 VDC and 2A current. The cable features durable PVC insulation with a flammability rating of UL 94 V-2, ensuring safety and reliability in various environments.
Key Features:
- 4-pin to 4-pin design with 3 mm pitch connectors
- Supports up to 30 VDC and 2A current
- 1-meter cable length
- Durable PVC insulation with flame resistance
