Overview

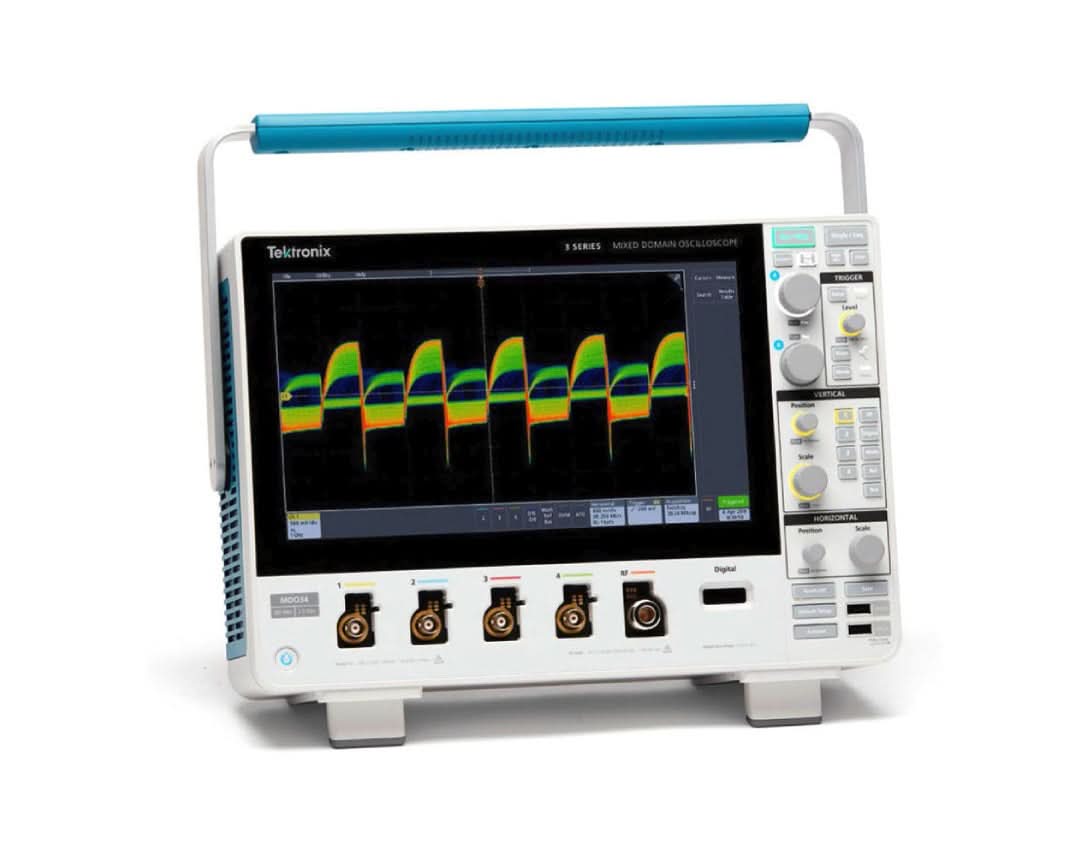

The product code MDO34/3-BW-200 identifies a Tektronix MDO3 Series Mixed Domain Oscilloscope with 4 analog channels and a 200 MHz bandwidth. A key feature of the 3 Series MDO is the integration of a true hardware spectrum analyzer, which is included as a standard feature with a 1 GHz frequency range.
Specifications
Model Number: MDO34/3-BW-200
Brand: Tektronix
Alt Part Number(s): MDO34/3-BW-200
Product Type: Mixed Domain Oscilloscope
Technical Description
Brand: Tektronix
Model Number: MDO34/3-BW-200
Series: 3 Series MDO
Analog Channels:4
Digital Channels: 16
Memory: 10Mpts
Vertical Resolution: 8 bit
Bandwidth:200MHz
Accessories: RM3
Attenuation: 2X
Display Type: 11.6" TFT LCD
Interface: LAN / Ethernet, HDMI, USB
Sampling Rate: 2.5GS/s
Risetime: 2ns
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
*
