Description

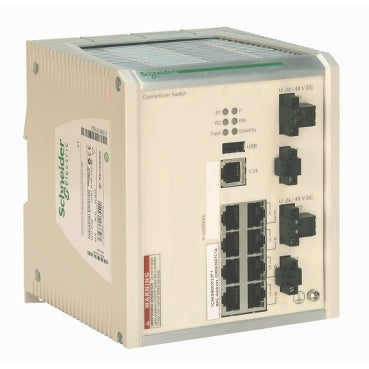

The Schneider Electric TCSESM083F23F1 is a managed Ethernet TCP/IP switch designed for reliable industrial network communication in automation systems. It provides eight 10/100Base-TX copper ports for connecting PLCs, HMIs, and other Ethernet-enabled devices. This model is built for stable performance in control cabinets and has been discontinued by the manufacturer as of February 19, 2025.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
PLCs/Machine Control |
| Part Number |
TCSESM083F23F1 |
| Subcategory |
PLC Module/Rack |
| Product Type |
Managed Ethernet switch |
| Ethernet Protocol |
Ethernet TCP/IP |
| Number of Ports |
8 |
| Port Type |
Copper, 10/100Base-TX |
| Supply Voltage |
24–48 V DC |
| Power Classification |
Class 2 |
| Mounting Type |
DIN rail |
| Enclosure Rating |
IP30 |
| Product Series |
ConneXium |
| Manufacturer Status |
Discontinued (02/19/2025) |
| Recommended Replacement |
MCSESM083F23F1 |
| Weight |
0.93 lbs |
Information About TCSESM083F23F1
The TCSESM083F23F1 is part of the Schneider Electric ConneXium series, which focuses on industrial Ethernet networking solutions for machine control and automation environments. It is constructed as a managed switch, allowing configuration and monitoring of network traffic to improve reliability and diagnostics. The unit operates on a 24–48 V DC power supply and supports DIN rail mounting for easy installation in industrial enclosures. It is commonly used in PLC-based systems requiring deterministic Ethernet communication, and Schneider Electric recommends the MCSESM083F23F1 as its direct replacement.
Key Features:
- Managed Ethernet Switch: Supports configuration and monitoring of industrial Ethernet networks.
- ConneXium Series Design: Engineered specifically for industrial automation and machine control.
- Eight Ethernet Ports: Provides 8 copper ports supporting 10/100Base-TX communication.
- Wide DC Supply Range: Operates on 24–48 V DC for industrial power compatibility.
- DIN Rail Mounting: Enables fast and secure installation inside control cabinets.
- Industrial Protection Level: IP30-rated housing for use in protected industrial environments.
- Discontinued Model: Recommended replacement is MCSESM083F23F1 for new installations.
The TCSESM083F23F1 delivers the reliability and precision required for managed industrial Ethernet communication in PLC and machine control networks.
