Description

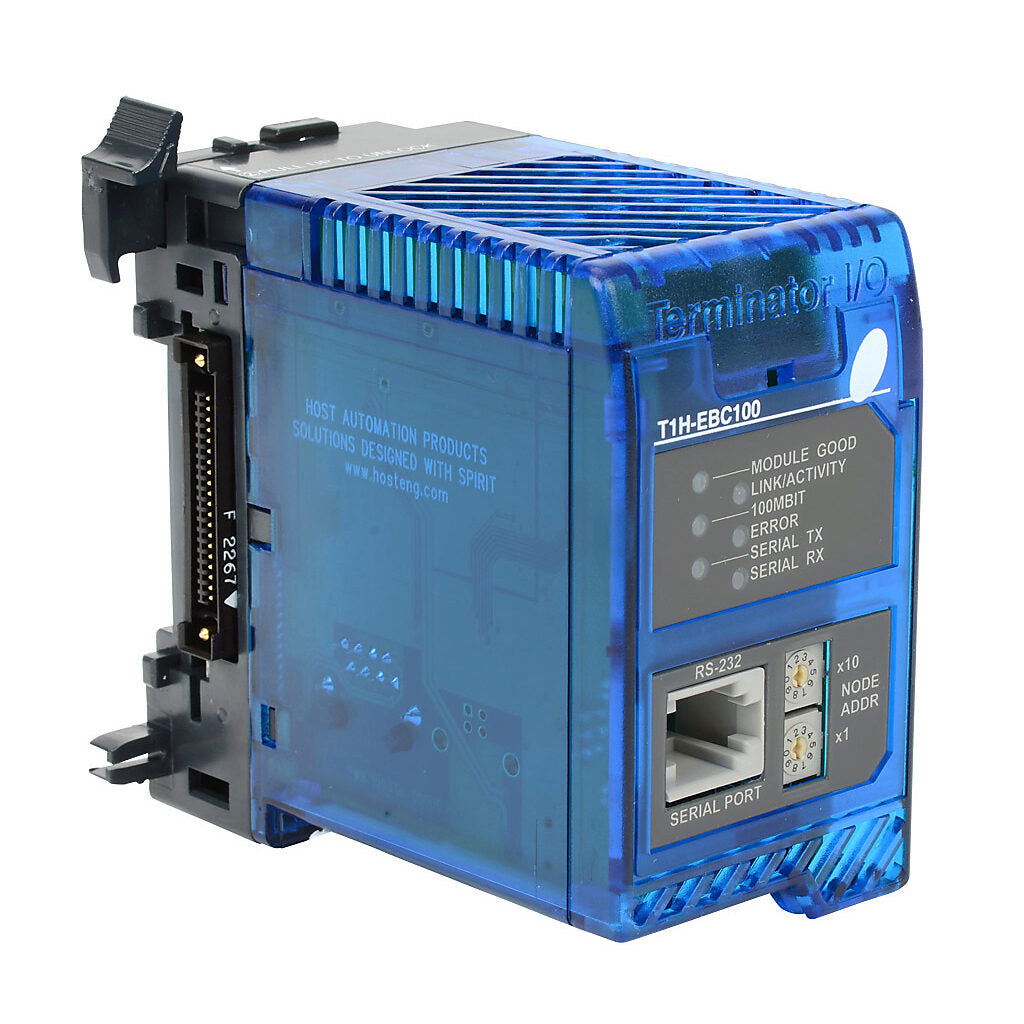

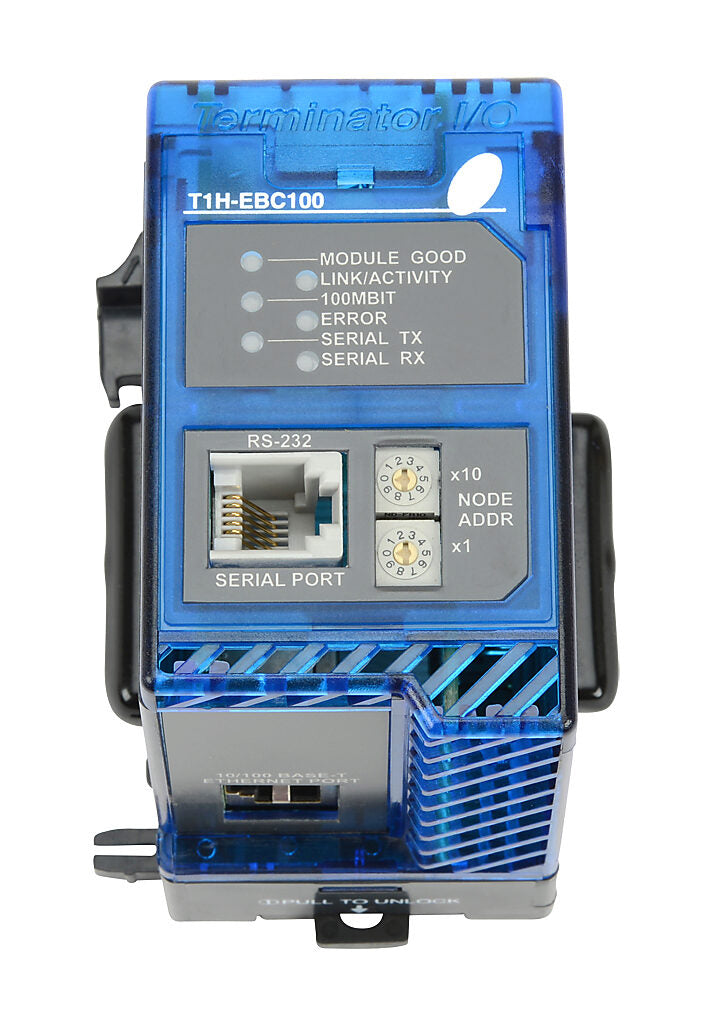

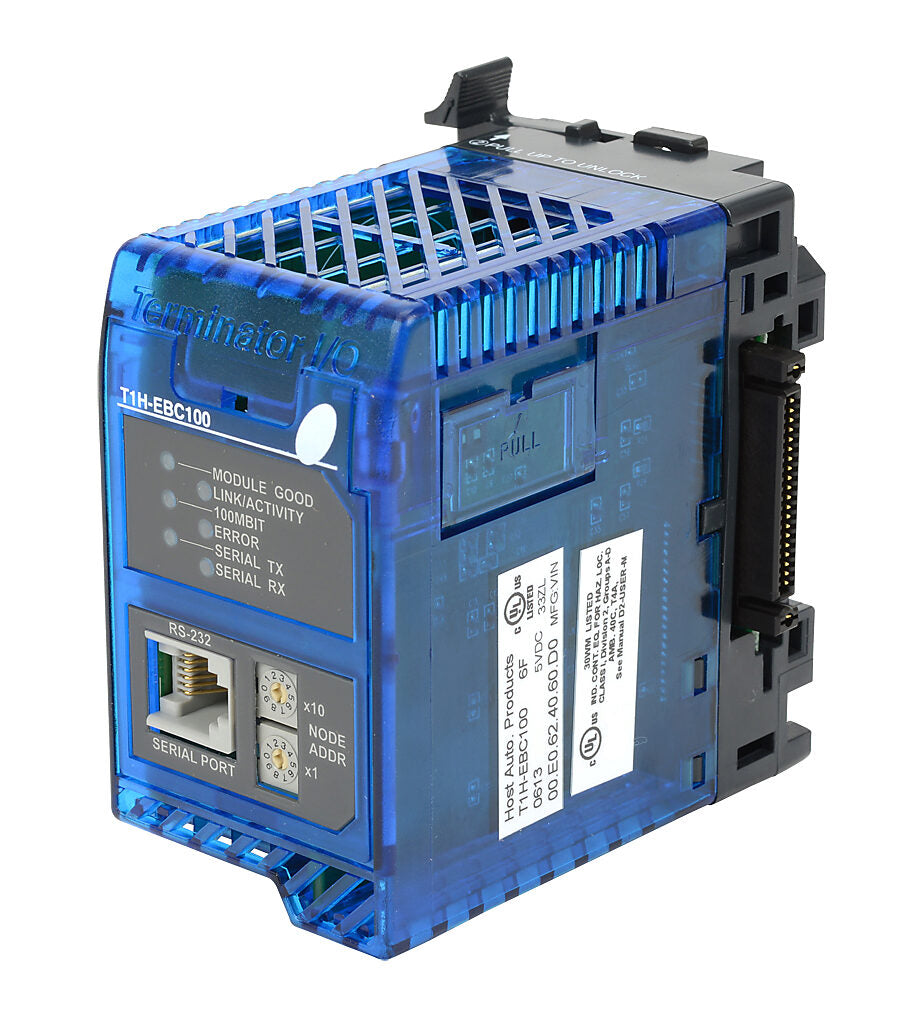

The Automation Direct T1H-EBC100 is a Terminator Ethernet base controller designed to provide network connectivity for distributed I/O systems. It features a 10/100Base-T Ethernet port supporting multiple industrial communication protocols for remote monitoring and control. This controller enables efficient integration of Terminator I/O modules into Ethernet-based automation architectures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Distributed I/O Systems |
| Part Number |
T1H-EBC100 |
| Subcategory |
Ethernet Base Controllers |
| Series |
Terminator |
| Communication Port |

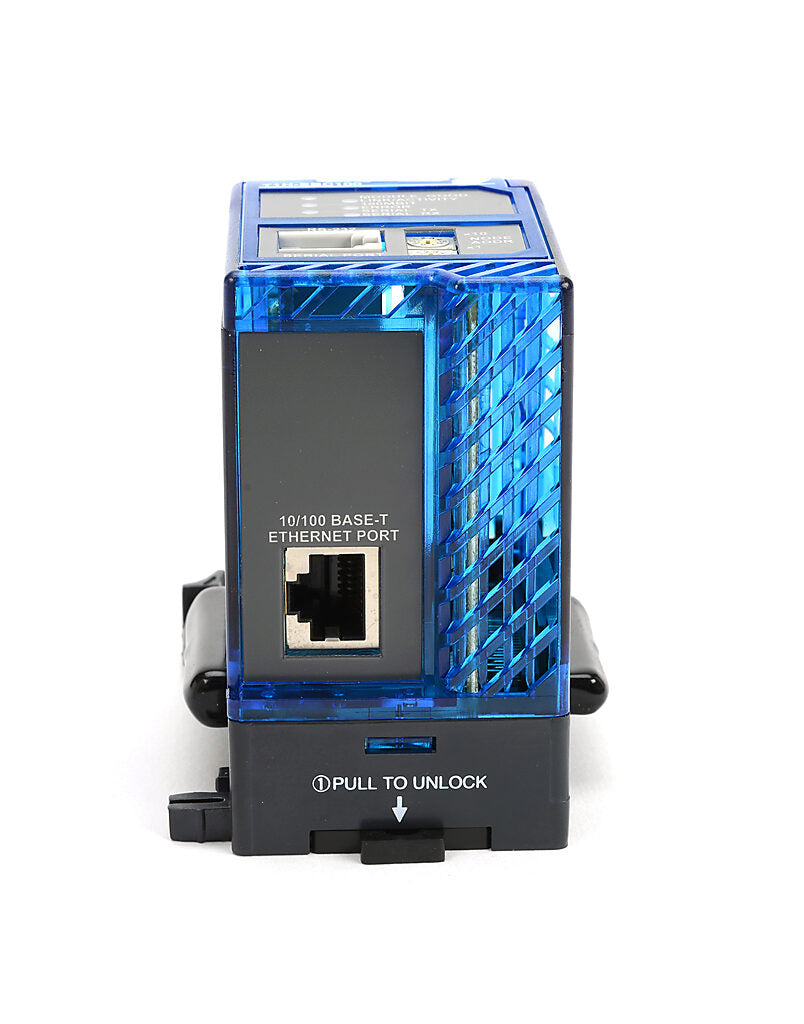

(1) Ethernet 10/100Base-T (RJ45) |
| Supported Protocols |
Do-more Ethernet remote I/O, Modbus TCP/IP, TCP/IP, UDP/IP, IPX |
| Webserver |
Non-secure HTTP |
| Port Speed |
Up to 100 Mbps |
| Programming Software |
Do-more Designer v1.2 or later |
| Application |
Distributed I/O networking |
| Mounting |
Terminator I/O base installation |
| Weight |
0.4 lb |
Information About T1H-EBC100
The T1H-EBC100 is part of the Terminator series of modular I/O systems engineered for flexible and scalable control solutions. It functions as an Ethernet base controller, allowing Terminator I/O assemblies to communicate over standard industrial Ethernet networks. The unit supports Do-more Ethernet remote I/O, Modbus TCP/IP, TCP/IP, UDP/IP, IPX, and webserver functionality for diagnostics and configuration. Configured using Do-more Designer software version 1.2 or later, it is suited for distributed control systems requiring reliable networked I/O communication.
Key Features:
- Ethernet Base Controller: Provides Ethernet connectivity for Terminator I/O systems.
- 10/100Base-T Port: RJ45 interface supporting network speeds up to 100 Mbps.
- Multi-Protocol Support: Compatible with Do-more Ethernet remote I/O, Modbus TCP/IP, TCP/IP, UDP/IP, and IPX.
- Integrated Webserver: Non-secure HTTP webserver for configuration and monitoring.
- Distributed I/O Integration: Enables remote I/O configuration within Ethernet networks.
- Do-more Designer Compatibility: Configured and managed using Do-more Designer v1.2 or later.
- Industrial Networking Capability: Designed for reliable operation in control panel environments.
The T1H-EBC100 delivers the reliability and precision required for Ethernet-based distributed I/O communication and industrial automation systems.
