Description

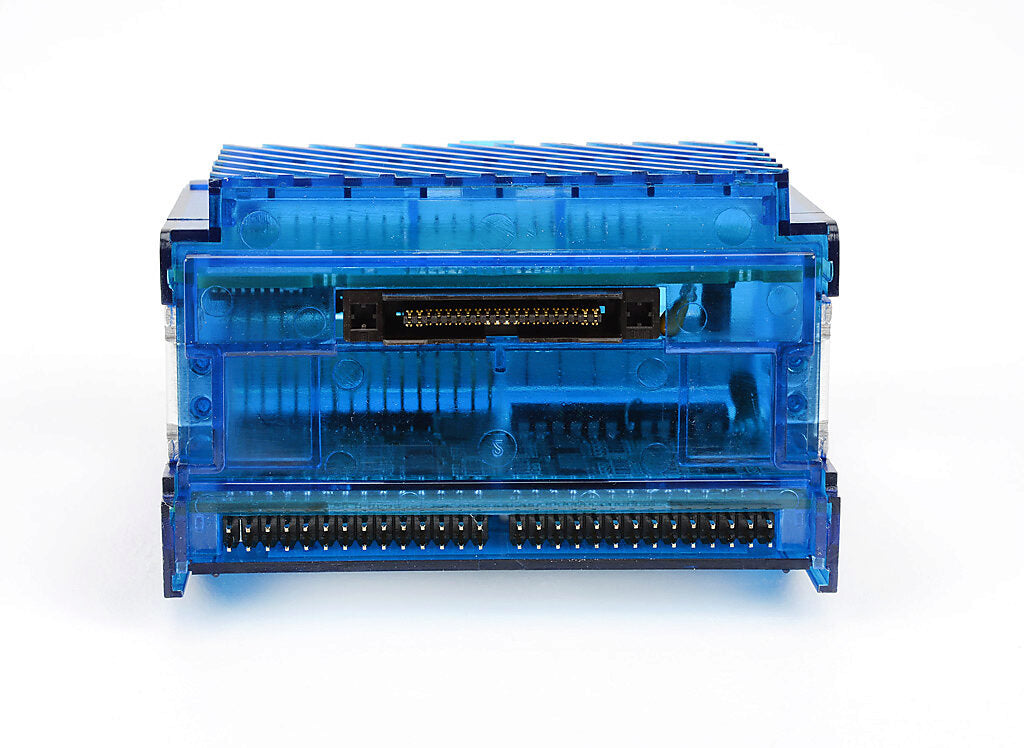

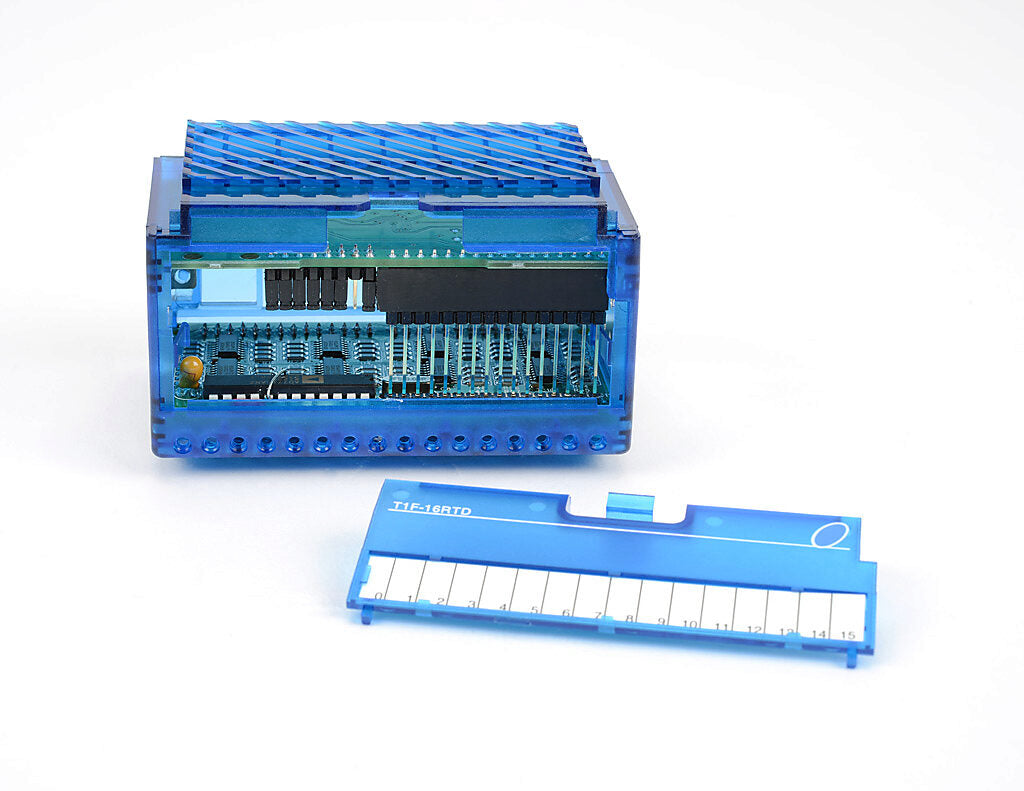

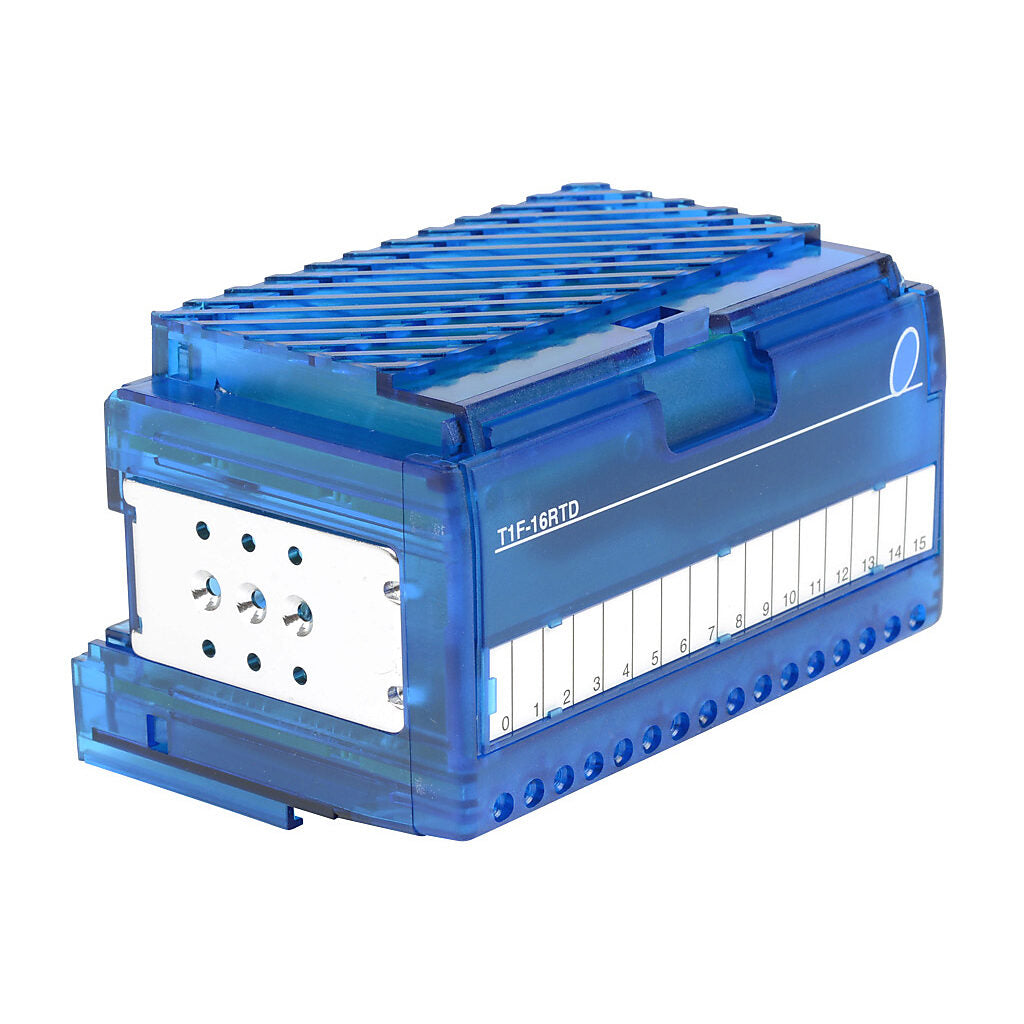

The Automation Direct T1F-16RTD is a Terminator series temperature input module designed for high-density RTD signal measurement in industrial control systems. It provides 16 RTD input channels with 16-bit resolution for precise temperature monitoring. This module is suited for process applications requiring accurate multi-point temperature acquisition without the need for an external user power supply.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
PLC I/O Modules |
| Part Number |
T1F-16RTD |
| Subcategory |
Temperature Input Modules |
| Series |
Terminator |
| I/O Module Type |
Temperature input |
| Input Signal Type |
RTD |
| Number of Channels |
16 |
| Supported RTD Types |
Pt100, JPt100, Cu10, Cu25, Pt1000 |
| Input Resolution |
16-bit |
| Terminal Base Required |
T1K-16B or T1K-16B-1 |
| Programming Software |
Do-more Designer v1.2 or later |
| User Power Supply |
Not required |
| Application |
Industrial temperature monitoring |
| Weight |
0.5 lb |
Information About T1F-16RTD
The T1F-16RTD is part of the Terminator I/O family engineered for compact and modular PLC-based systems. It supports multiple RTD sensor types including Pt100, JPt100, Cu10, Cu25, and Pt1000, allowing flexibility across different temperature measurement standards. The module delivers 16-bit input resolution for reliable and repeatable data acquisition in demanding environments. Designed for use with the T1K-16B or T1K-16B-1 terminal base, it integrates seamlessly with Do-more Designer software version 1.2 or later for configuration and monitoring.
Key Features:
- 16 RTD Input Channels: High-density temperature measurement for multi-point monitoring.
- Multi-Sensor Compatibility: Supports Pt100, JPt100, Cu10, Cu25, and Pt1000 RTD types.
- 16-Bit Resolution: Provides precise temperature data acquisition.
- No External User Power Required: Simplifies installation and wiring.
- Terminator Series Integration: Designed for compact, modular I/O systems.
- Terminal Base Compatibility: Requires T1K-16B or T1K-16B-1 base for installation.
- Do-more Software Support: Configured using Do-more Designer v1.2 or later.
- Industrial Temperature Monitoring: Suitable for process control and environmental sensing applications.
The T1F-16RTD delivers the reliability and precision required for industrial multi-channel temperature monitoring and RTD-based measurement systems.
