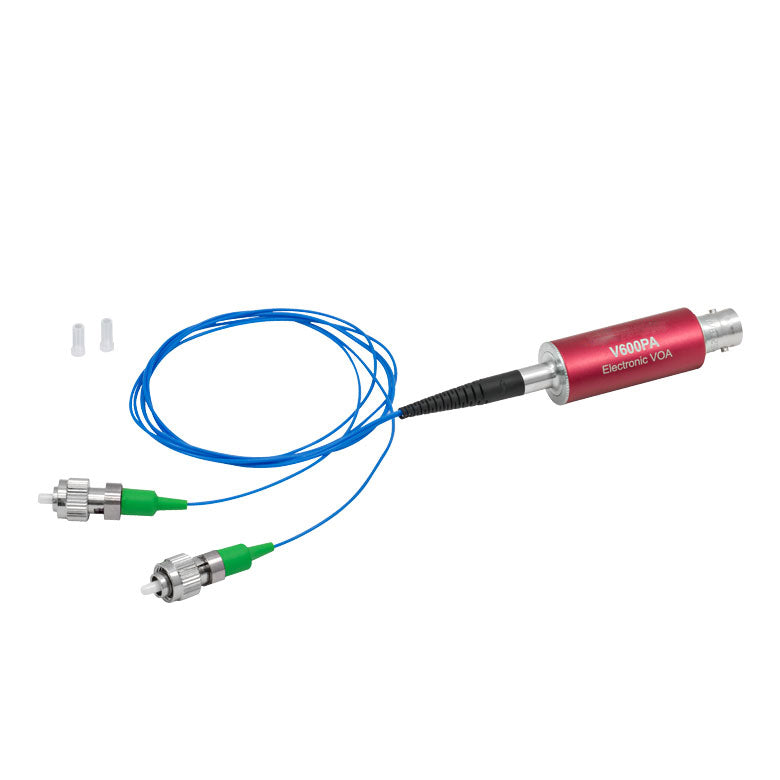

T-V600PA - Electronic Variable Optical Attenuator, PM Fiber, 620 to 850 nm, FC/APC
Product Drawing
Features
- MEMS-Based Device Provides Attenuation up to >30 dB or >25 dB
- Single Mode PM Operation over Five Wavelength Ranges
- 488 to 635 nm
- 620 to 850 nm
- 770 to 1100 nm
- 970 to 1550 nm
- 1450 to 1610 nm
- Control Optical Power by Applying 0 to 5 V Signal
- Maximum Optical Input Power up to 100 mW, Depending on Model
- Modulation up to 1 kHz
- Input is Protected from Electrostatic Discharge (ESD)
| Item # |
T-V600PA |
|
Wavelength Range
|
620 to 850 nm |
| Attenuation |
Max |
>30 dB |
| Min |
2.5 dB |
|
Optical Input Power (Max)
|
100 mW |
|
Optical Return Loss
|
>30 dB |
| Polarization Extinction Ratio (PER) |
>13 dB |
|
Fiber Connectors
|
FC/APC (2.0 mm Narrow Key) |
| Optical Fiber Specifications |
|
Device Fiber Type
|
PM630-HP |
| Mode Field Diameter |
4.5 ± 0.5 µm
@ 630 nm |
| Beat Length |
1.8 mm @ 630 nm |
| Modulation Signal Input |
|
Input Voltage
|
0 to 5 V (Absolute Max: 10 V, 5 mA) |
|
Input Impedance
|
High-Z |
| Bandwidth |
DC to 1 kHz |
|
Input Voltage Connector
|
Female BNC |
| Physical Specifications |
Dimensions
|
Diameter: 15.7 mm (0.62")
Length Excluding Fiber Leads: 50.1 mm (1.97")
Length of the Fiber Leads: 50.0 cm ± 10.0 cm |
|
Operating Temperature Range
|
0 °C to 40 °C |
|
Storage Temperature Range
|
-20 °C to 70 °C |
|
Relative Humidity
|
5% to 85% (Non-Condensing) |
