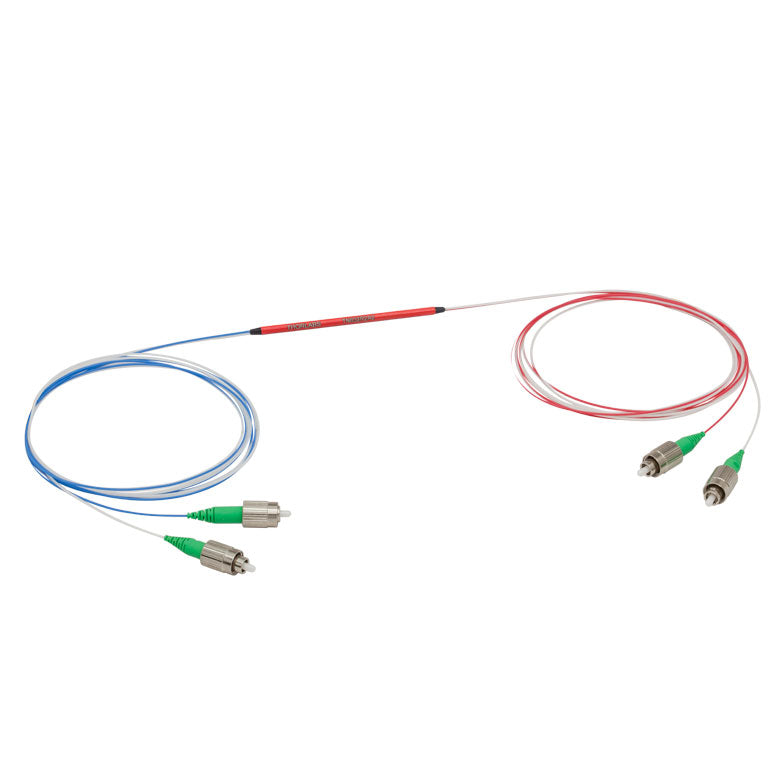

T-TN632R2A2 - 2x2 Narrowband Fiber Optic Coupler, 632 ± 15 nm, 90:10 Split, FC/APC Connectors

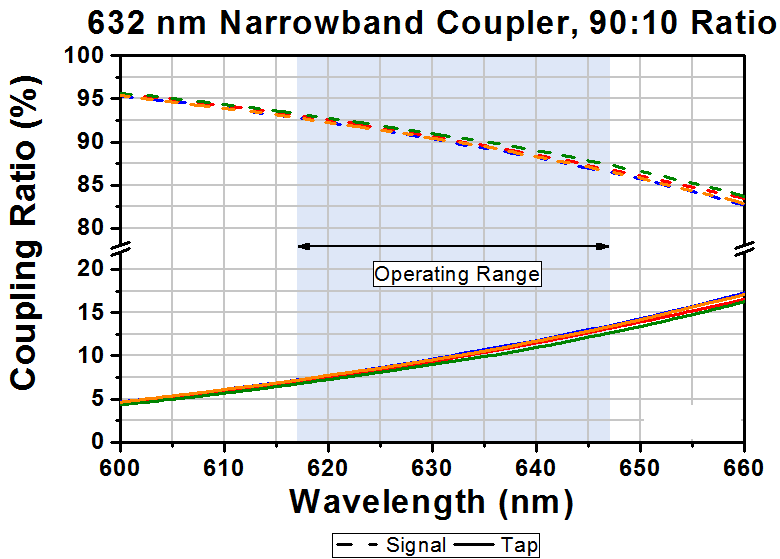

Product Drawing
- 630 nm Couplers
- 50:50, 75:25, 90:10, or 99:1 Split Ratio
- Three Wavelength Ranges Available
- 630 ± 50 nm Wideband
- 632 ± 15 nm Narrowband
- 670 ± 75 nm Wideband
- 0.8 m Long Fiber Leads with a Tolerance of +0.075 m / -0.0 m
- Bidirectional Coupling (Either End Can Be Used as an Input)
- Versions Contained in Durable Aluminum Boxes Available
-
Center Wavelength 632 nm
- Bandwidth ±15 nm
- Coupling Ratio 90:10
-
Coupling Ratio Tolerance ±1.5%
- Insertion Loss ≤0.9 dB / ≤11.1 dB
- Excess Loss <0.3 dB (Typ.)
- Fiber Type 630HP
- Termination FC/APC Connectors
- Housing Standard
| Coupler Specifications |
| Coupling Ratio |
90:10 |
| Coupling Ratio Tolerance |
±1.5% |
| Center Wavelength |
632 nm |
| Minimum Bandwidth |
±15 nm |
Insertion Loss
|
≤0.9 dB / ≤11.1 dB |
Excess Loss
|
<0.3 dB (Typ.) |
| Polarization-Dependent Loss (PDL) |
≤0.2 dB |
Optical Return Loss (ORL) / Directivity
|
≥60 dB |
| Max Power Level |
300 mW (With Connectors or Bare Fiber)
500 mW (Spliced) |
| Fiber Type |
630HP |
| Port Configuration |
2x2 |
| Fiber Lead Length and Tolerance |
0.8 m +0.075 m / -0.0 m |
| Connectors |
2.0 mm Narrow Key FC/APC |
| Package Size |
Ø0.12" x 2.76" (Ø3.2 mm x 70.0 mm) |
| Jacket |
Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load |
10 N |
| Operating Temperature |
-40 to 85 °C |
| Storage Temperature |
-40 to 85 °C |
