Description

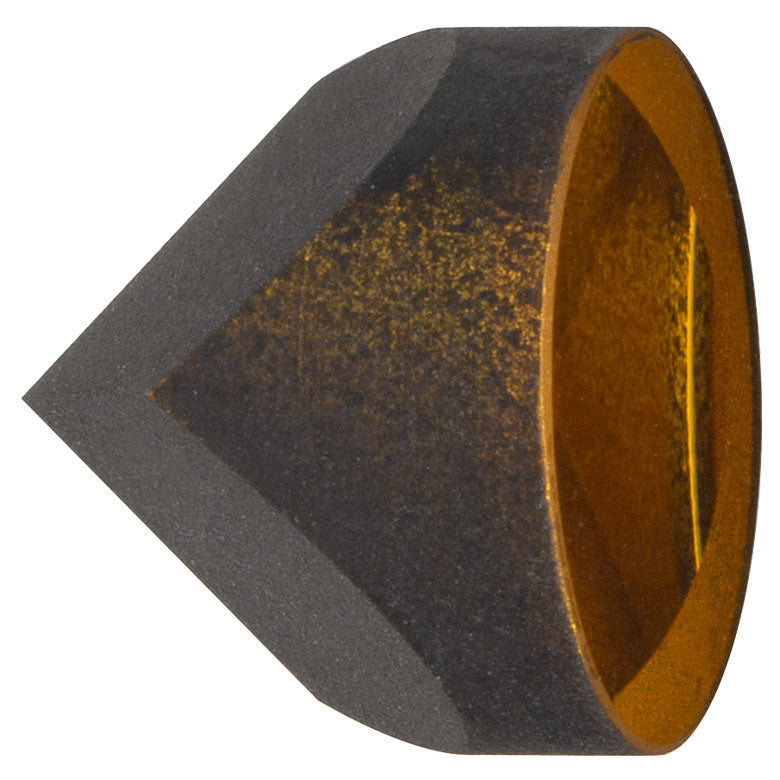

T-PS977-M01B - Specular Retroreflector, Ø12.7 mm, L = 11.4 mm, Gold Coating: 800 - 2000 nm
- Fabricated from N-BK7
- Reflects an Inverted and Reversed Image 180°
- Specular Design for Polarization Azimuthal Angle Rotation <10°
- Three Prism Sizes Available:
- Ø12.7 mm
- Ø25.4 mm
- Ø50.0 mm
- Gold-Coated Reflective Faces with Black Overpaint
- 800 - 2000 nm Wavelength Range
| Common Specifications | |||
|---|---|---|---|

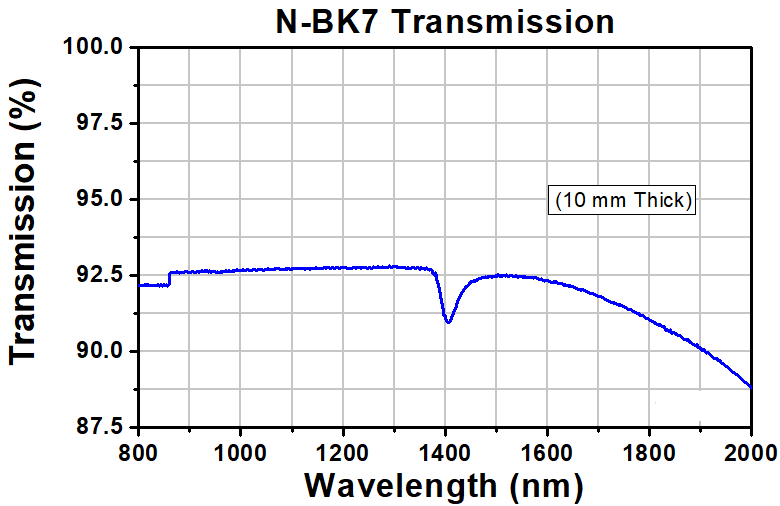

| Prism Material | N-BK7a Grade A Fine Anneal | ||
| Wavelength Rangeb | 800 - 2000 nm | ||

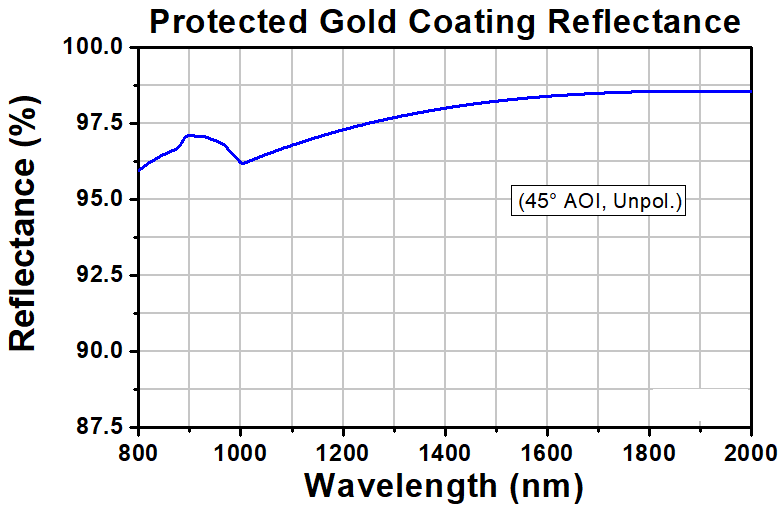

| Reflective Coating | Gold with Black Overpaint | ||
| Diameter Tolerance | +0.0 / -0.1 mm | ||
| Surface Quality | 40-20 Scratch-Dig | ||
| Front Surface Flatness | <λ/10 @ 633 nm | ||
| Beam Deviationc | <3 arcsec | ||
| Damage Threshold | 1.25 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.01 mm) |
||
| N-BK7 Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) |
Damage Threshold |
| -M01B | 1.25 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.01 mm) |

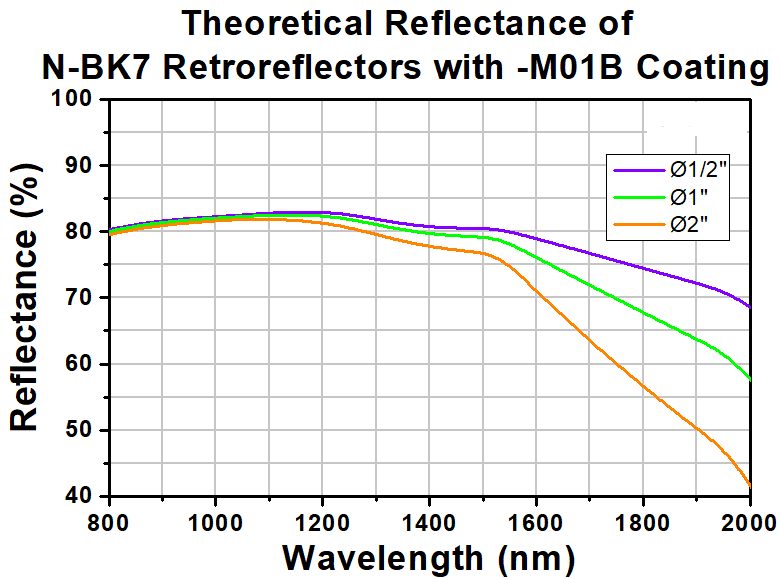

| Item # | Wavelength Range | Theoretical Reflectancea |
Clear Aperture | Length (L)b | Diameter (D)b | Max Beam Diameterc |

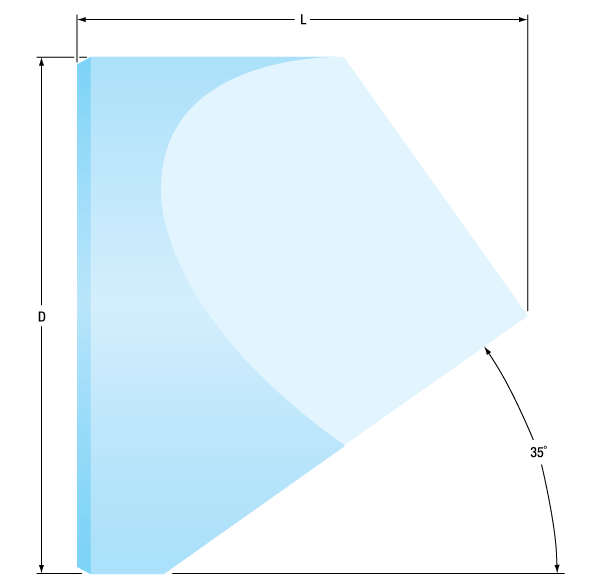

Reference Diagram |
|---|---|---|---|---|---|---|---|
| T-PS977-M01B | 800 - 2000 nm | Click to Check | >Ø8.9 mm | 11.4 mm | Ø12.7 mm | Ø0.16" (4.085 mm) |  |
| T-PS975-M01B | >Ø17.8 mm | 21.9 mm | Ø25.4 mm | Ø0.32" (8.125 mm) | |||
| T-PS976-M01B | >Ø35.0 mm | 41.9 mm | Ø50.0 mm | Ø0.64" (16.256 mm) |
