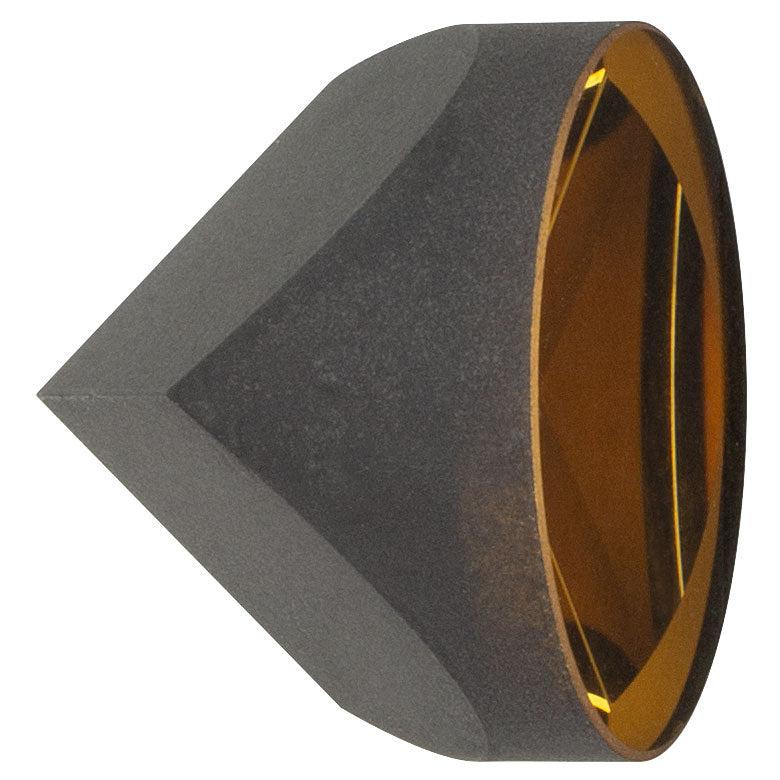

T-PS975-M01B - Specular Retroreflector, Ø25.4 mm, L = 21.9 mm, Gold Coating: 800 - 2000 nm

T-PS975-M01B - Specular Retroreflector, Ø25.4 mm, L = 21.9 mm, Gold Coating: 800 - 2000 nm

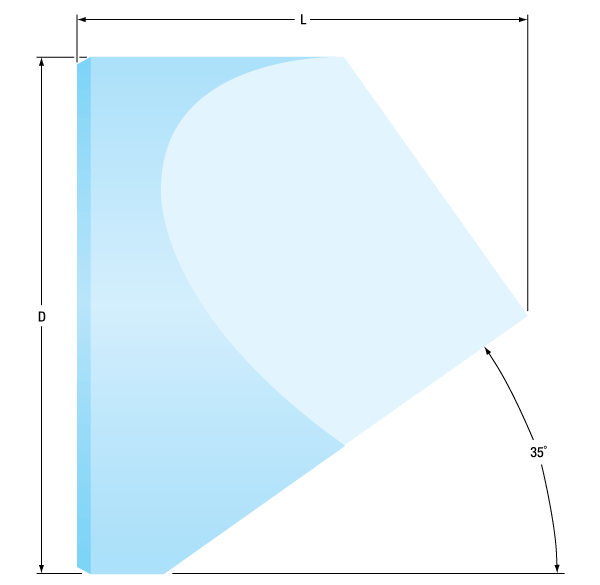

Product Drawing

Fabricated from N-BK7
Reflects an Inverted and Reversed Image 180°
Specular Design for Polarization Azimuthal Angle Rotation <10°
Three Prism Sizes Available:

Ø12.7 mm
Ø25.4 mm
Ø50.0 mm

Gold-Coated Reflective Faces with Black Overpaint
800 - 2000 nm Wavelength Range
Clear Aperture >Ø17.8 mm
Length (L) 21.9 mm
Diameter (D) Ø25.4 mm
Max Beam Diameter Ø0.32" (8.125 mm)

Common Specifications
Prism Material	N-BK7^a Grade A Fine Anneal
Wavelength Range^b	800 - 2000 nm
Reflective Coating	Gold with Black Overpaint
Diameter Tolerance	+0.0 / -0.1 mm
Surface Quality	40-20 Scratch-Dig
Front Surface Flatness	<λ/10 @ 633 nm
Beam Deviation^c	<3 arcsec
Damage Threshold	1.25 J/cm² (1064 nm, 10 ns, 10 Hz, Ø1.01 mm)

a. Click Link for Detailed Specifications on the Substrate Glass
b. The wavelength range is limited by the transmission of the N-BK7 substrate and the reflectance of the gold coating.
c. Between Incident and Reflected Beams

N-BK7 Damage Threshold Specifications
Coating Designation (Item # Suffix)	Damage Threshold
-M01B	1.25 J/cm² (1064 nm, 10 ns, 10 Hz, Ø1.01 mm)

US-Based Distributor

Wellington, Florida — serving US businesses, agencies & OEMs.

Send a Part Number

Search or send your list — obsolete & current GE Speedtronic, boards & controls.

24-Hour Quotes

US-based specialists reply within 24 hours.

Purchase Orders Welcome

POs accepted from qualified US buyers; cards too.

Product

Name: T-PS975-M01B - Specular Retroreflector, Ø25.4 mm, L = 21.9 mm, Gold Coating: 800 - 2000 nm
Brand: Fosco Connect
SKU: T-PS975-M01B
Price: 552.50 USD
Availability: InStock
