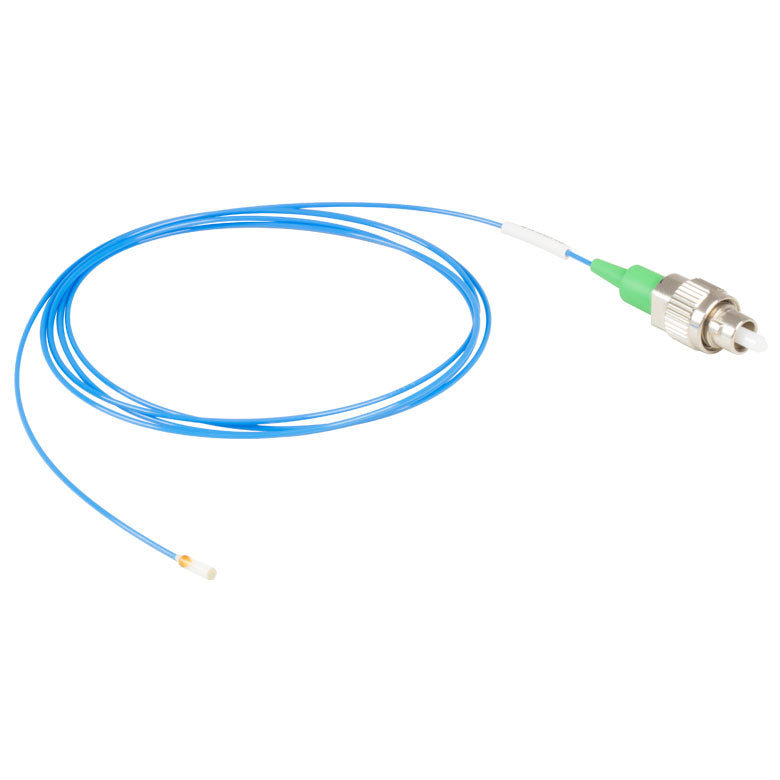

T-PMPFX6 - PM Pigtailed Ferrule, Ø1.8 mm, 8°, 1550 nm, FC/APC

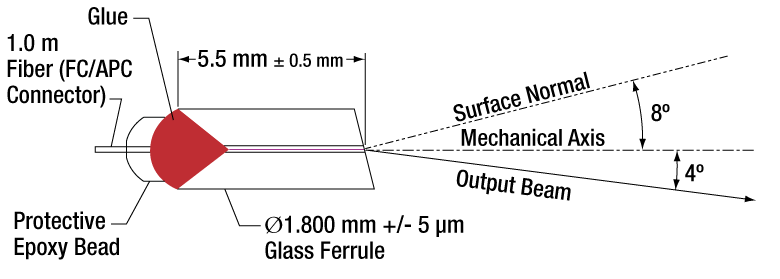

Product Drawing
- 630, 780, and 1550 nm Alignment Wavelengths
- AR Coated Glass Ferrules
- 630 ± 30 nm VAR Coating
- 700 - 900 nm and 1260 - 1650 nm Broadband AR Coating
- 2.0 mm Narrow Key FC/PC or FC/APC Versions Available
- Designed for Easy Pairing with GRIN Lenses
- Pigtailed Glass Ferrule with 8° Face Angle
- Ideal for Telecom Applications
-
Face Angle 8°
- Glass Ferrule AR Coating Range 1260 - 1650 nm
- Reflectance Over AR Coating Range Ravg < 0.25%
- Fiber NA 0.125
- Fiber Alignment Wavelength 1550 nm
- Fiber Operating Wavelength 1440-1625 nm
- Cutoff Wavelength 1380 ± 60 nm
- Fiber Type PM1550-XP
- Compatible GRIN Lens T-GRIN2315A
- Connector FC/APC
| Common Specifications |
| Ferrule Diameter |
1.800 mm ± 5 µm |
| Ferrule Length |
5.5 mm ± 0.5 mm |
| Ferrule Material |
Borosilicate Glass |
| Wedge Tolerance |
±0.2° |
| Average Reflectivity |
<0.25% in AR Coating Range |
| Fiber Length |
1.0 m +0.075 m/-0.0 m |
| Protective Jacket |
Ø900 µm Hytrel®a Tubing |
