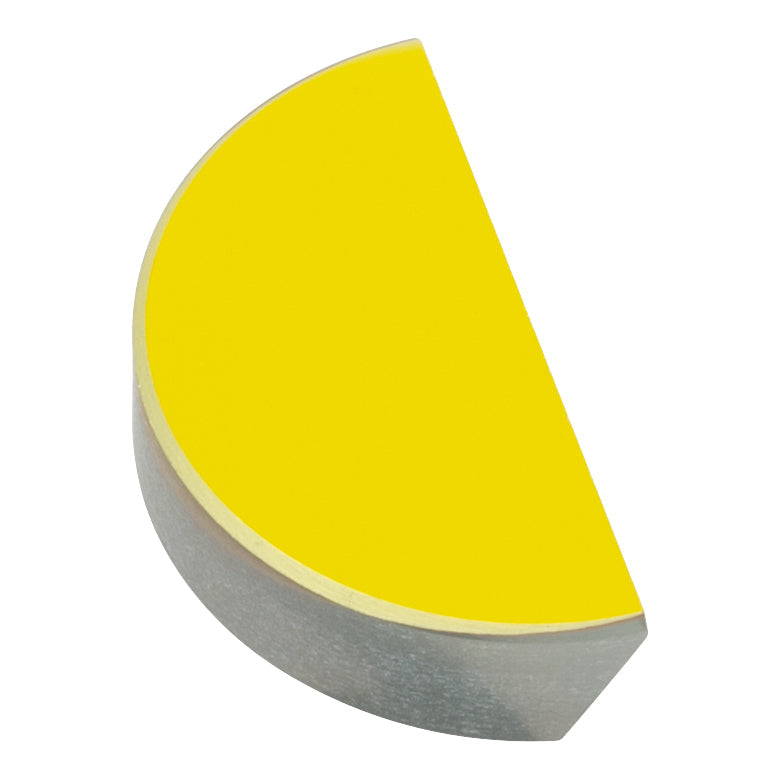

T-PFD10-03-M02 - Ø1" MIR-Enhanced Gold D-Shaped Mirror, 2 - 20 µm
- Choose from Nine Coatings:
- UV-Enhanced Aluminum: 250 - 450 nm
- Protected Silver: 450 nm - 20 µm
- Ultrafast-Enhanced Silver: 750 nm - 1000 nm
- Protected Gold: 800 nm - 20 µm
- MIR-Enhanced Gold: 2 μm - 20 μm
- -E01 Broadband Dielectric Coating: 350 - 400 nm
- -E02 Broadband Dielectric Coating: 400 - 750 nm
- -E03 Broadband Dielectric Coating: 750 - 1100 nm
- -E04 Broadband Dielectric Coating: 1280 - 1600 nm
- Choose from Ø1/2" or Ø1" Versions
- Ideal for Use with Closely Spaced Beams
- Reflective Coating Beveled 0.1 mm at Straight Edge
| Damage Threshold Specifications |
Coating Designation
(Item # Suffix) |
Type |
Damage Threshold |
| -M02 |
Pulsed
|
0.1 J/cm2 (1.064 µm, 10 ns, 10 Hz, Ø1.06 mm)
3 J/cm2 (10.6 µm, 100 ns, 1 Hz, Ø1.29 mm) |
| CW
|
25 W/cm (1.07 µm, Ø1.04 mm)
450 W/cm (10.6 µm, Ø1.18 mm) |
| Coating |
MIR-Enhanced Gold |
| Item # |
T-PFD05-03-M02 |
T-PFD10-03-M02 |
| Coating Range |
2 - 20 µm |
| Diameter |
Ø1/2" |
Ø1" |
| Diameter Tolerance |
+0.0/-0.1 mm |
| Thickness |
6.0 mm ± 0.2 mm |
| Substrate |
Fused Silica |
| Front Surface Flatness |
λ/10 @ 633 nm |
| Surface Quality |
40-20 Scratch-Dig |
| Clear Aperture |
>90% of Diameter |
| Reflectance |
Ravg > 98%a and Rabs> 95%a from 2 μm - 20 μm |
| Parallelism |
≤5 arcmin |
| Damage Threshold (Pulse) |
0.1 J/cm2 (1.064 µm, 10 ns, 10 Hz, Ø1.06 mm)
3 J/cm2 (10.6 µm, 100 ns, 1 Hz, Ø1.29 mm) |
| Damage Threshold (CW) |
25 W/cm (1.07 µm, Ø1.04 mm)
450 W/cm (10.6 µm, Ø1.18 mm) |
Product Drawing
Mid-Infrared-Enhanced Gold Mirrors offer >98% average reflectance and >95% absolute reflectance between 2 µm to 20 µm, without suffering losses found with protected gold mirrors. The overcoat on these mirrors allows them to perform better than our unprotected gold mirrors in the mid-infrared (MIR), while offering resistance to physical damages.

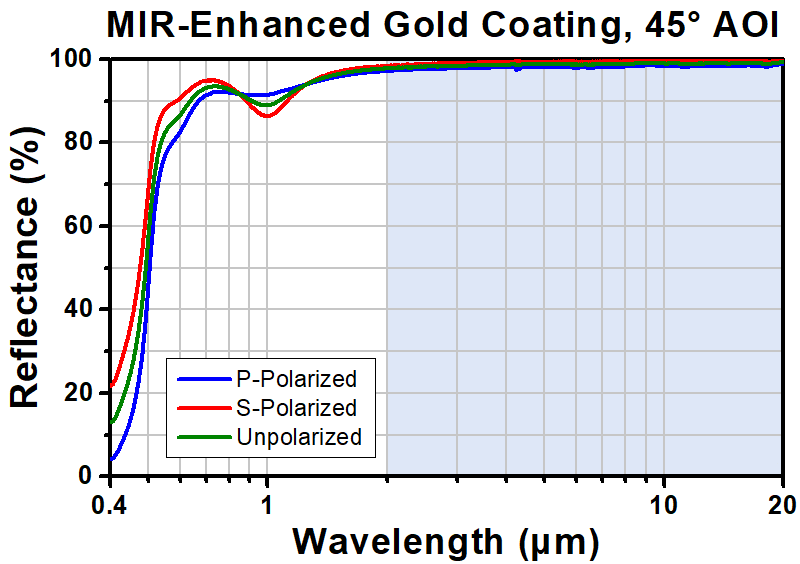

The plot to the right shows the measured reflectance of this coating as a function of wavelength. The shaded region denotes the range over which we recommend using these optics. Data was obtained using at a 45° angle of incidence.
