T-PF03-03-P01 - Ø7.0 mm Protected Silver Mirror
Product Drawing
- Silver Coating Highly Reflects in Visible and NIR Range
- Ravg > 97% for 450 nm - 2 µm;
- Ravg > 95% for 2 - 20 µm
- Protective SiO2 Overcoat Protects from Oxidation
- Available Round, Square, Rectangular, or in Packages of 10 Rounds
Metal-Coated Plano Mirrors Selection Guide
Wavelength Range 450 nm - 20 μm

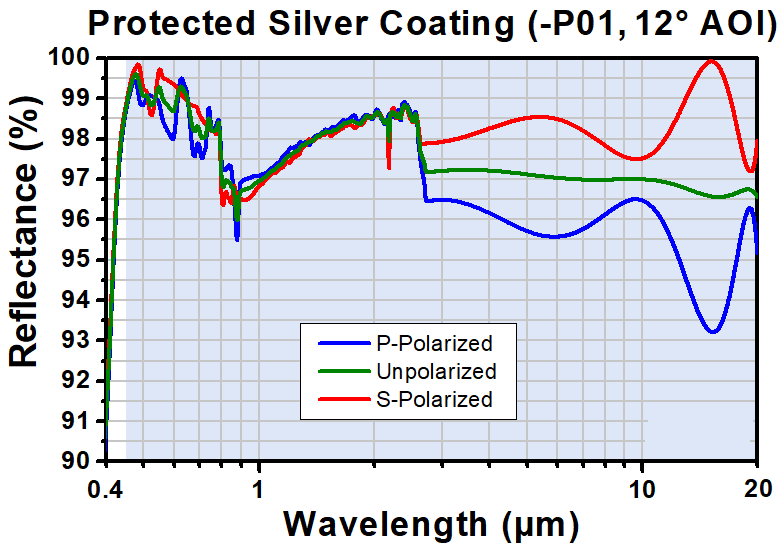

Avg. Reflectance (Click for Variation) >97% for 450 nm - 2 µm
>95% for 2 - 20 µm
| Damage Threshold Specifications |
| Coating Designation (Item # Suffix) |
Damage Threshold |
|
-P01 (Pulsed) |
0.225 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.167 mm)
1 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.010 mm) |
|
-P01 (CW) |
500 W/cm (1.07 µm, Ø0.974 mm)
1500 W/cm (10.6 µm, Ø0.339 mm) |
| Item # |
T-PF03-03-P01 |
|
Diameter
|
7.0 mm
(0.28") |
|
Diameter Tolerance
|
+0.0 mm / -0.1 mm |
|
Thickness
|
2.0 mm (0.08") |
|
Thickness Tolerance
|
±0.2 mm |
|
Reflectance (Average)
|
>97% for 450 nm - 2 µm, >95% for 2 - 20 µm |
|
Substrate
|
Fused Silica |
Surface Flatness
(Peak to Valley)
|
λ/10 @ 633 nm |
|
Surface Quality
|
40-20 Scratch-Dig |
|
Parallelism
|
<3 arcmin |
|
Clear Aperture
|
>90% of Diameter |
Damage
Threshold |
Pulsed |
0.225 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.167 mm)
1 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.010 mm) |
| CW |
500 W/cm (1.07 µm, Ø0.974 mm)
1500 W/cm (10.6 µm, Ø0.339 mm) |
