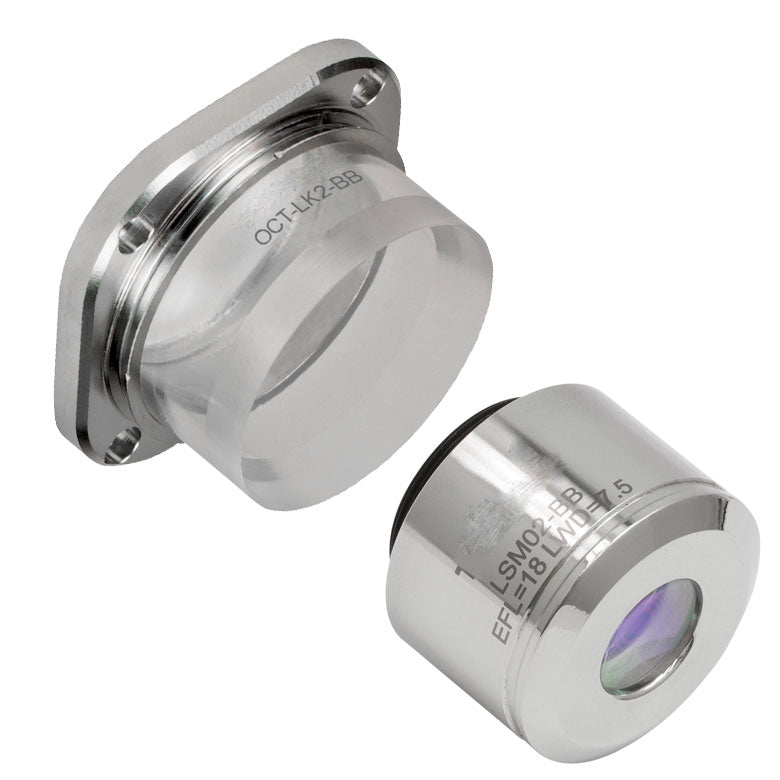

T-OCT-LK2-BB - OCT Scan Lens Kit, 18 mm EFL, 880 nm / 900 nm / 930 nm / 1060 nm

Product Auto CAD PDF

Scan Lens Kits for 880 nm OCT Systems

• Telecentric Scan Lenses Provide a Flat Imaging Plane
• Lenses AR Coated for 800 - 1100 nm
• Scan Lens Kits Include
  • Telecentric Scan Lens
  • Illumination Tube
  • IR Card
  • Calibration Target
  • Dispersion Compensation Set
• Design Wavelength 880 nm / 900 nm / 930 nm / 1060 nm
• Compatible Scanner T-OCTG9 (Standard) or T-OCTP-900 (User-Customizable)
• Lateral Resolution 4 µm
• Effective Focal Length 18 mm
• Working Distance 3.4 mm (with Tube) 7.5 mm (without Tube)
• Field of View 6 mm x 6 mm
• Lens Threading M25 x 0.75
