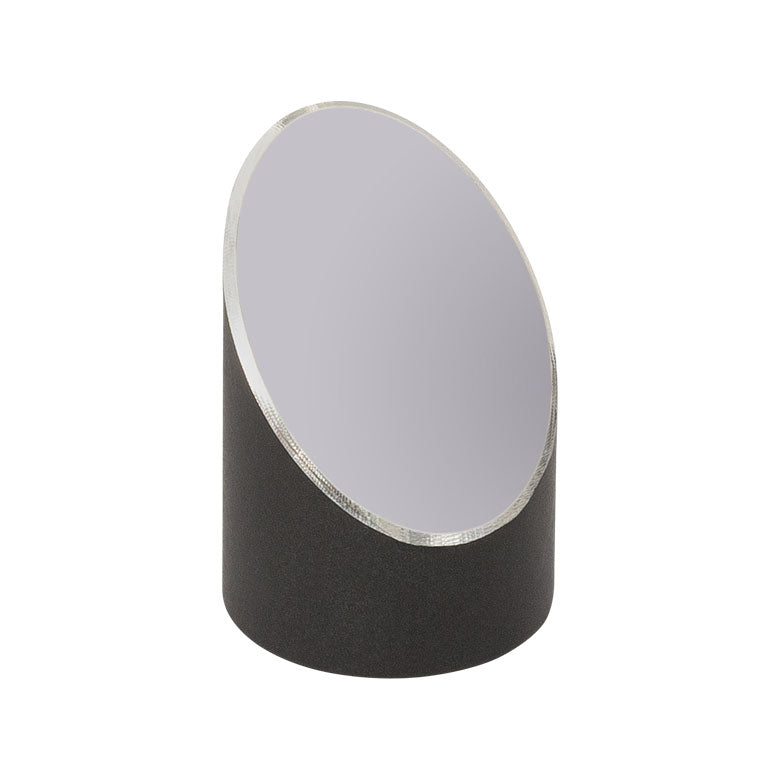

T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"

T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"

>90% Average Reflectance from 250 - 450 nm
Collimates a Divergent Source or Focuses a Collimated Beam without Spherical or Chromatic Aberrations
Effective Focal Lengths from 15 mm (0.59") to 8" (203.2 mm)
Surface Roughness: <100 Å (RMS)
Clear Aperture: >90% of Diameter
Three Kinds of Mounting Adapters for Ø1/2", Ø1", and Ø2" Versions:

Externally SM-Threaded
Unthreaded for Use in Mirror Mounts
With 8-32 (M4) Taps for Post Mounting

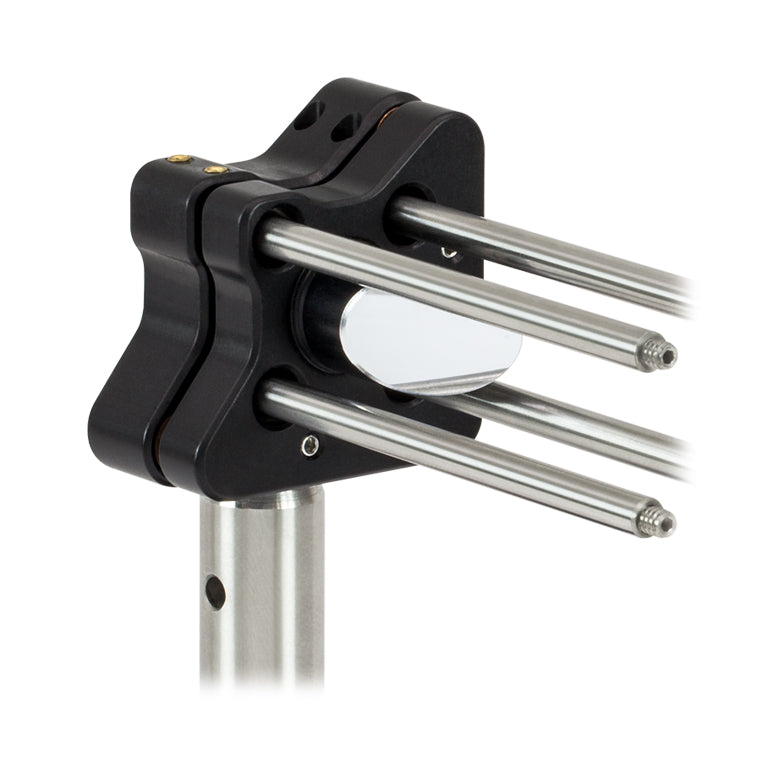

Right-Angle Kinematic Mount for 30 mm Cage Systems and Ø1" OAP Mirrors

Item #	Diameter	RFL	PFL	Thickness	RWE	Mounting Features
T-MPD00M9-F01	0.5" (12.7 mm)	15.0 mm (0.59")	7.5 mm (0.3")	20.0 mm (0.79")	<λ/4 RMS at 633 nm	Three 4-40 Taps on Bottom
T-MPD019-F01		1" (25.4 mm)	0.5" (12.7 mm)	0.74" (18.8 mm)
T-MPD01M9-F01		33.0 mm (1.3")	16.5 mm (0.65")	20.0 mm (0.79")
T-MPD029-F01		2" (50.8 mm)	1" (25.4 mm)	0.74" (18.8 mm)
T-MPD039-F01		3" (76.2 mm)	1.5" (38.1 mm)	0.74" (18.8 mm)

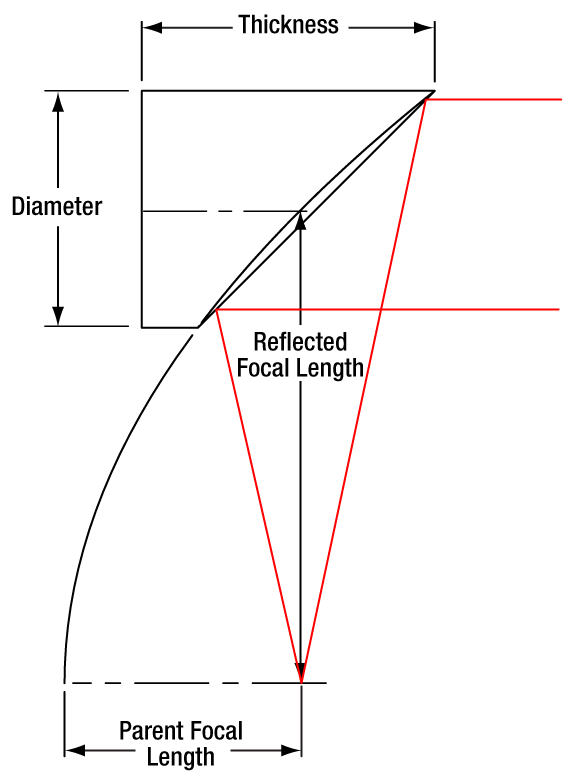

The diagram in the Overview tab defines these quantities.
See below for the corresponding mounting adapters.

RFL = Reflective Focal Length
PFL = Parent Focal Length

RWE = Reflected Wavefront Error

US-Based Distributor

Wellington, Florida — serving US businesses, agencies & OEMs.

Send a Part Number

Search or send your list — obsolete & current GE Speedtronic, boards & controls.

24-Hour Quotes

US-based specialists reply within 24 hours.

Purchase Orders Welcome

POs accepted from qualified US buyers; cards too.

Product

Name: T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"
Brand: Fosco Connect
SKU: T-MPD019-F01
Price: 433.50 USD
Availability: InStock

Can I return my product?

We always aim for make sure our customers love our products, but if you do need to return an order, we’re happy to help. Just email us directly and we’ll take you through the process.

Other

Any question?

You can contact us through our contact page! We will be happy to assist you.

WhatsApp +1 (305) 809-0110

info@alotechsolutions.com

Send a message

info@alotechsolutions.com

T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"

Secure & Protected • Purchase Orders Accepted

Genuine Products • Guaranteed Compatibility

Description

T-MPD019-F01 - Ø1/2" 90° Off-Axis Parabolic Mirror, UV-Enhanced Aluminum, RFL = 1"
