T-MDF-FITC - FITC Excitation, Emission, and Dichroic Filters (Set of 3)

Product Drawing

• Excitation, Emission, and Dichroic Filters for Fluorescence Imaging
• >90% Transmission over Desired Wavelength Band
• Sharp Cutoff (T < 0.001%) Outside the Transmission Band
• Matched Filter Sets Designed to Target Many Common Fluorophores
  (See Fluorophores Tab for Alternate Fluorophore Compatibility)

  - BFP - CFP - WGFP - GFP

  - FITC - Alexa Fluor® 488 - YFP - tdTomato

  - TRITC - Texas Red - mCherry - Cyanine (CY3.5)

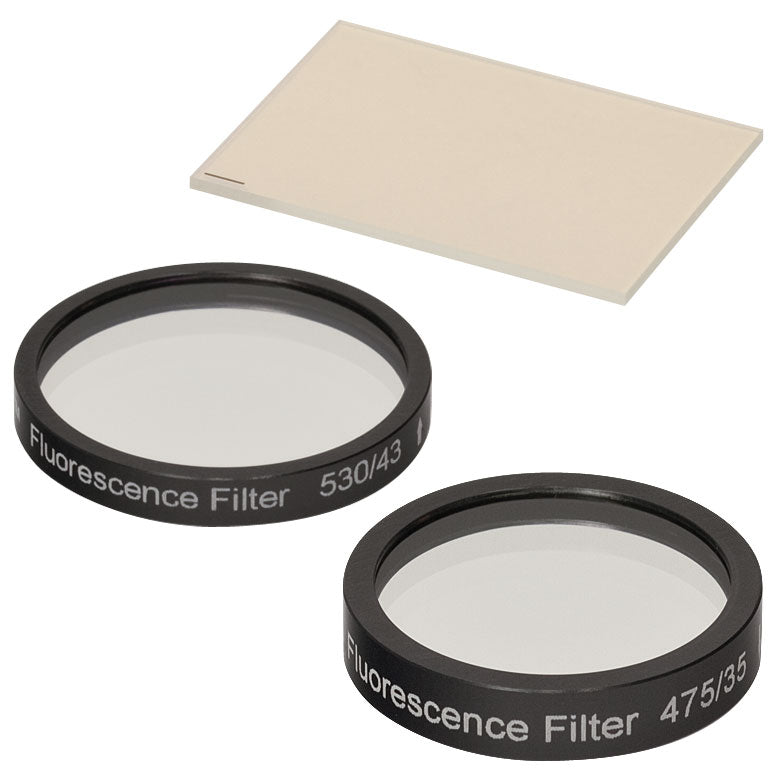

• Excitation and Emission Filters are Mounted in Black-Anodized Housings
• Dichroic Filters are Unmounted
• Filter Sets are Available at a Savings Over Individual Filter Prices

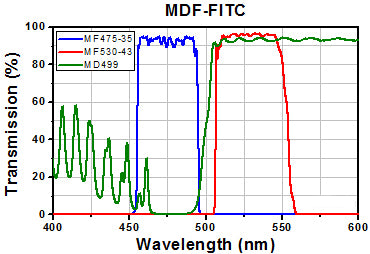

Design Fluorophore Fluorescein Isothiocyanate (FITC)

Excitation Band 475 ± 17.5 nm

Emission Band 530 ± 21.5 nm

Dichroic (Reflection / Transmission Band) 470 - 490 nm / 508 - 675 nm

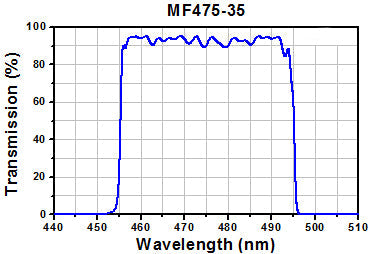

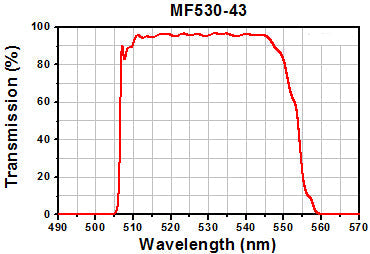

Kit comes with T-MF475-35, Filter Type Excitation, 475 nm Center Wavelength, 35 nm FWHM; T-MF530-43 FITC Fluorophore, Emission Filter Type, 530 nm Center

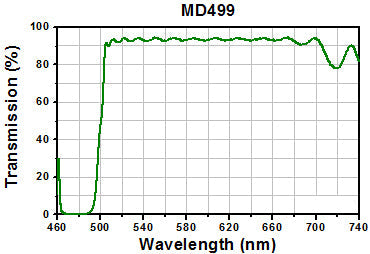

Wavelength, 43 nm FWHM; T-MD499 FICT Fluorophore, Dichroic Filter
Type, R_avg > 90% 470 - 490 nm Reflection Band T_abs > 90% 508 - 675 nm Transmission Band, R_abs < 2% from 400 to 800 nm AR Coating
