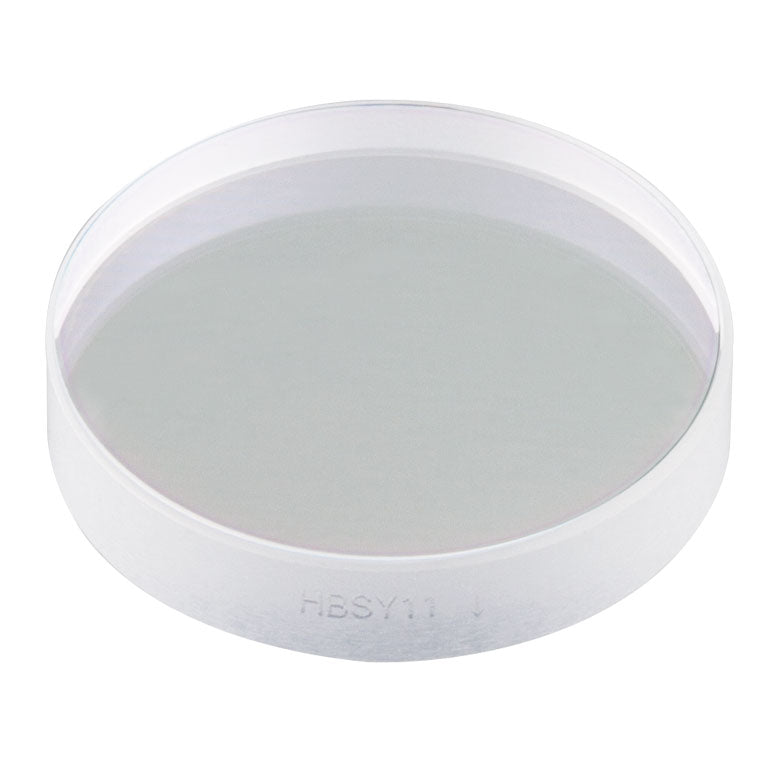

T-HBSY11 - Ø1" Harmonic Beamsplitter, Reflects 1064 nm, Transmits 532 nm
Features
- Four Wavelength Configurations Designed for Nd:YAG Applications

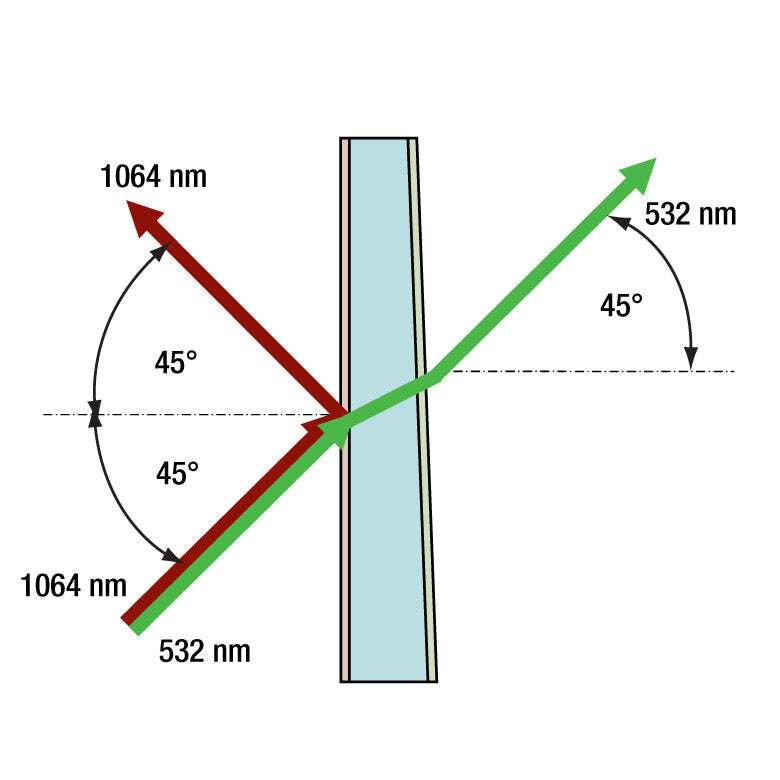

- 1064 nm Reflected, 532 nm Transmitted
- 532 nm Reflected, 1064 nm Transmitted
- 355 nm Reflected, 532 and 1064 nm Transmitted
- 266 nm and 355 nm Reflected, 532 and 1064 nm Transmitted
- Beamsplitter Coating on Front Surface
- Back Surface AR V-Coated at Wavelengths of Transmitted Light
- High Reflectance for Both S- and P-Polarized Light (See the Graphs Below)
- UV Fused Silica Substrate Available in Ø1/2", Ø1", or Ø2" Sizes
- Description Reflects Primary Harmonic
- Reflected Wavelengths 1064 nm
- Transmitted Wavelengths 532 nm
Damage Threshold Specifications
| Pulsed |
5 J/cm2 (532 nm, Ø0.279 mm, 10 ns, 10 Hz) |
| Item # |
Diameter |
Thickness |
Beamsplitter Coating |
AR V-Coating |
AOI |
Damage Threshold |
| T-HBSY051 |
1/2" |
3.0 mm (0.12") |
Reflectance >99% at 1064 nm
Transmission >95% at 532 nm |
Reflectance <0.5%
at 532 nm |
45° |
250 W/cm
(532 nm, Ø0.684 mm)
5 J/cm2
(532 nm, Ø0.279 mm, 10 ns, 10 Hz)
5 J/cm2
(1064 nm, Ø0.31 mm, 10 ns, 10 Hz) |
| T-HBSY11 |
1" |
5.0 mm (0.20") |
| T-HBSY21 |
2" |
8.0 mm (0.31") |
