Description

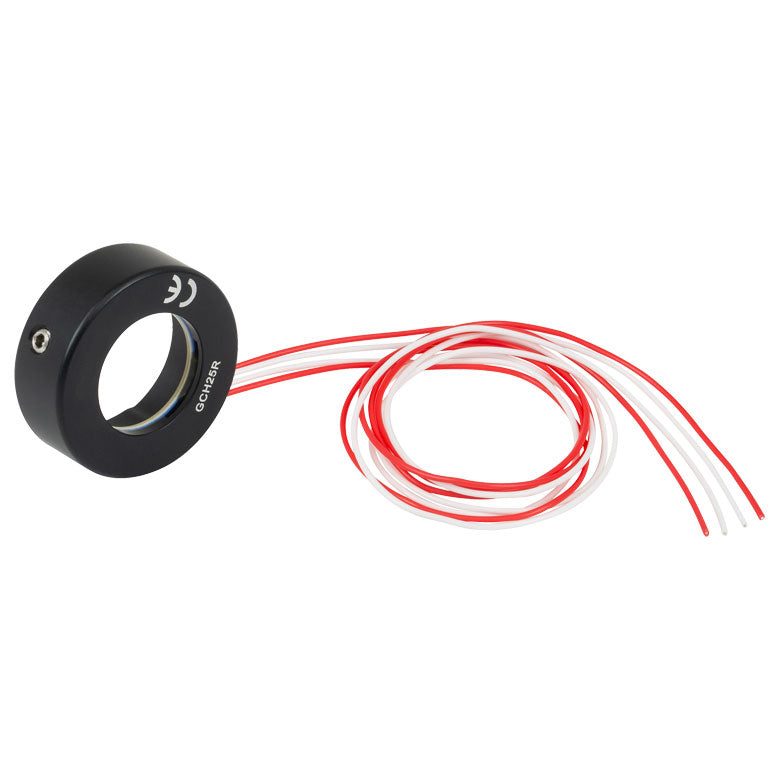

T-GCH25R - Cap Heater for Ø25 mm Glass Cells, 10 W
- Compatible with Ø25 mm Glass Cells
- Clear Aperture: 0.79" (20.0 mm)
- 10 W Heating Power with Thermistor
- Mounts Using Nylon-Tipped Setscrew with 5/64" (2.0 mm) Hex
The T-GCH25R cap heater is designed for use with Ø25 mm glass cells. It incorporates a metal ceramic heater, which is a 10 W ring-shaped heater with a 10 kΩ thermistor. The aluminum housing features a double bore with a nylon-tipped setscrew to hold it in place at the end of the cell. Two cap heaters (sold separately) may be used on opposite ends of the glass cell.
| Specifications | |
|---|---|
| Heater Power | 10 W (Max) ± 20% @ 24 V |
| Max Temperature | 50 °Ca |
| Input Voltage | 24 VDC (Max) |
| Heater Resistance | 50 Ω ± 10% |
| Connector Type | Bare Wire Leads |
| Lead Length | 305 mm (12.0") |
| Lead Length Tolerance | +10/-0.0 mm (+0.4/-0.0") |
| Simplified Drawing |  |
