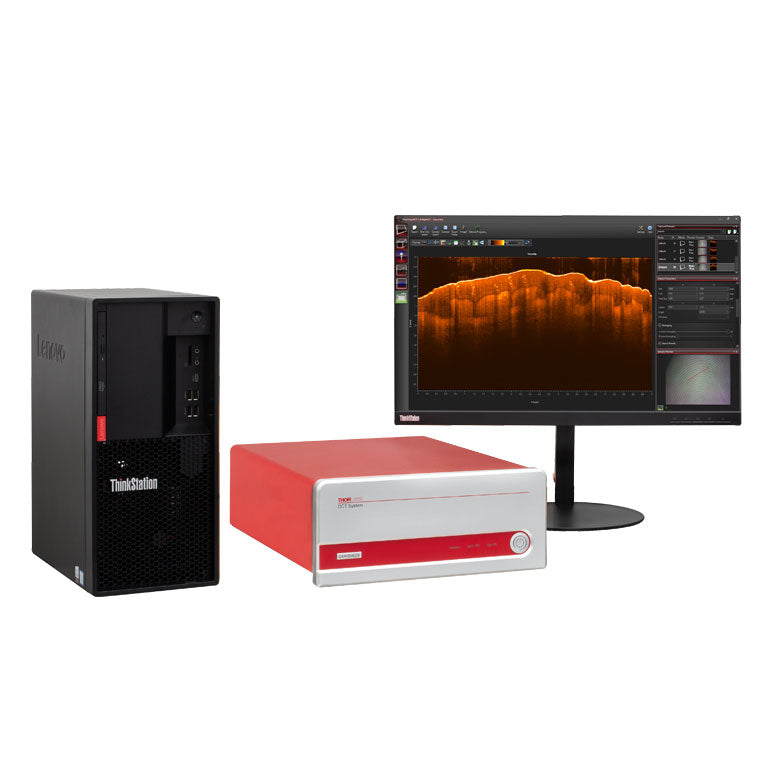

T-GAN332 - Ganymede OCT Base Unit, 880 nm, <3.0 µm Resolution, 1.5 to 80 kHz

Product Auto CAD PDF

• Flexibility in Imaging Speed with High- and Very-High-Resolution Performance Options
• Systems with up to 248 kHz A-Scan Rate (See Table Below)
• Fully Configurable Trigger for Integration into Larger Experiments
• Analog Input for Combining Other Data Sources with the OCT Signal
• Internal Hardware Diagnostics for Improved Troubleshooting
• Operating System Windows 10, 64 Bit
• Processor 8 Core, 3.0 GHz
• Memory 32 GB
• Hard Drive 512 GB SSD
• Data Acquisition USB 3.0
• Description Very High Resolution
• Center Wavelength 880 nm
• Imaging Depth (Air/Water) 1.6 mm / 1.2 mm
• Axial Resolution (Air/Water) <3.0 µm / <2.2 µm
• A-Scan Line Rate 1.5, 5, 10, 20, 40, & 80 kHz
• Sensitivity 89 dB (at 80 kHz) 106 dB (at 1.5 kHz)
• Maximum Pixels per A-Scan 1024
• Compatible Scanners OCTP-900, OCTP-900/M, and OCTG9
