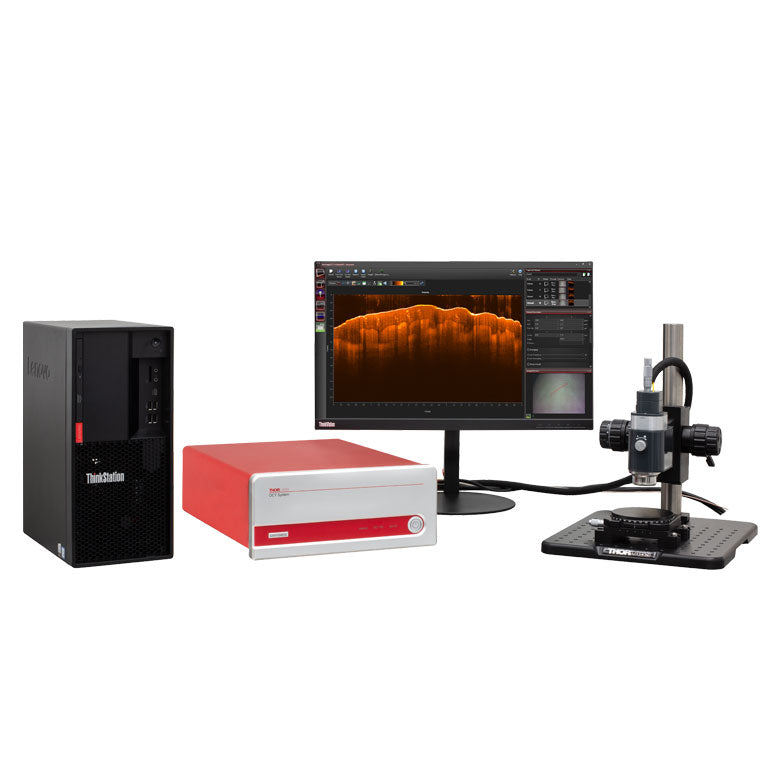

T-GAN111C1 - Spectral Domain OCT System, 880 nm, 6.0 µm Resolution, 1.5 to 20 kHz
Product Base Unit Auto CAD PDF
Scanner Auto CAD PDF
Lens Kit Auto CAD PDF
Reference Adapter Auto CAD PDF
- Complete Preconfigured 880 nm OCT Systems (See Tables Below)
- Fully Customizable Using Other Ganymede™ Series Components
- Configurable Trigger for Integration into Larger Experiments
- Analog Input for Combining Other Data Sources with the OCT Signal
- Internal Hardware Diagnostics for Improved Troubleshooting
- Base Unit T-GAN111
- Scanning System T-OCTG9 (Standard Scanner)
- Scan Lens Kit OCT-LK3-BB
- Reference Length Adapter T-OCT-RA3
- Accessories: Stand and Stage OCT-STAND (Scanner Stand) and OCT-XYR1 (Translation Stage)
- Center Wavelength 880 nm
- Imaging Depth (Air/Water) 3.4 mm / 2.5 mm
- Axial Resolution (Air/Water) 6.0 µm / 4.5 µm
- Lateral Resolution 8.0 µm
- A-Scan/Line Rate 1.5 - 20 kHz
- Sensitivity (Max) 106 dB (at 1.5 kHz)
