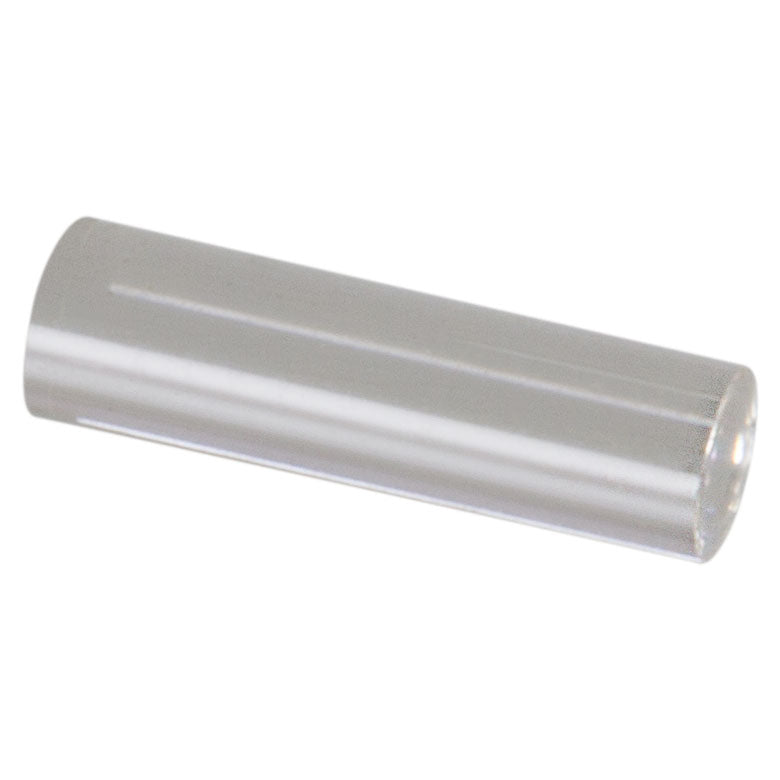

T-G2P11 - GRIN Lens for Imaging, Ø0.5 mm, L = 1.883 mm, WD = 0.20 mm (Water and Dry), NA = 0.486, AR Coating: 515 - 670 nm and 900 - 1100 nm

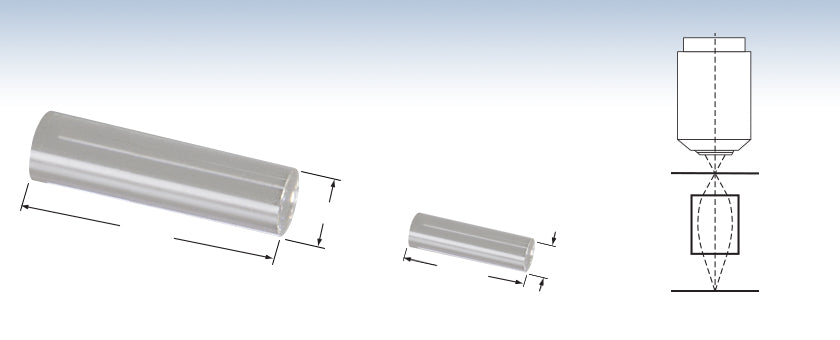

Product Drawing
- Ideal for Multiphoton Imaging
- Ø0.5 mm and 1.833 mm Long
- Working Distance:
- 0.20 mm on Sample Side (Water Immersion)
- 0.20 mm on Objective Side (Dry)
- 0.486 Numerical Aperture in Water
This GRIN lens features a 0.20 mm working distance on both the sample and the objective side. It is designed to minimize losses for excitation wavelengths from 900 - 1100 nm and emission wavelengths from 515 - 670 nm, which is useful for eGFP and eYFP. At 0.5 mm in diameter and 1.883 mm in length, this GRIN lens provides a large collection angle due to a numerical aperture of 0.486 in water. See the Specs tab for more details on optical properties.
| Item # |
T-G1P10 |
T-G1P11 |
T-G2P10 |
T-G2P11 |
|
Design Wavelength
|
550 nm |

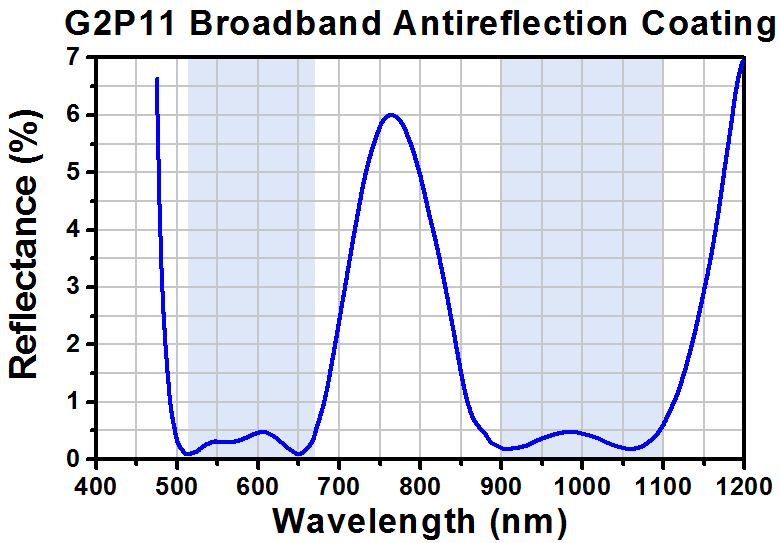

AR Coating Range (Both Ends)
|
N/A |
500 - 700 nm,
Ravg < 0.5%
700 - 1000 nm,
Ravg < 1.5% |
515 - 670 nm and
900 - 1040 nm,
Ravg < 1%
950 - 1100 nm,
Ravg < 2.5% |
| Working Distance |
0.20 mm on Sample Side (Water Immersion) and on Objective Side (Dry) |
0.25 mm on Sample Side
(Water Immersion)
0.19 mm on Objective Side (Dry) |
0.20 mm on Sample Side
(Water Immersion)
and on Objective Side (Dry) |
|
Viewing Angle (Max)
|
70° |
50° |
Refractive Index (n1) @ 550 nm
|
1.666 |
1.333 |
Gradient Constant (√A) @ 550 nm
|
0.724 mm-1
|
0.782 mm-1
|
1.291 mm-1
|
Pitch (P)
@ 550 nm
|
0.433 |
0.933 |
0.423 |
0.387 |
|
Face Angle
|
0° |
|
Numerical Aperture (NA) in Water
|
0.50 |
0.486 |
| Magnification |
-0.92 |
+0.98 |
-1 |
+0.96 |
|
Length (Z)
|
3.758 mm ±
0.500 mm |
8.091 mm ±
1.100 mm |
3.400 mm ± 0.085 mm |
1.883 mm ± 0.620 mm |
|
Diameter (D)
|
1.0 mm +0/-0.03 mm |
1.0 mm +0/-0.05 mm |
0.5 mm +0/-0.03 mm |
| Field Curvature |
100 µm |
50 µm |
|
Polarization Preservation
|
Not Specified |
| Protective Coating |
SiO2 (Silica) |
N/A |
Operating Temperature
|
<350 °C |
<200 °C |
<350 °C |
Lens Handling and Care
Handling
A GRIN lens should be handled with stainless steel tweezers, preferably those with a tapered end like our TZ3 optic tweezers, and picked up by firmly grasping the side of the cylinder rather than the flat ends.
Cleaning
Use methyl alcohol as a cleaning solvent when necessary. Acetone may also be used without harm to a GRIN lens, but should be pure enough to not leave a residue on the lens surface.
Storage
For extended periods of time, a GRIN lens should be stored in a "dry box" environment. This entails the use of a desiccant or heat source to prevent humidity from leaching the lens material. For short-term storage (less than a month), the plastic box and foam packing in which the lens is shipped will provide adequate storage, provided the lens is placed securely in the built-in slot to avoid chipping or scratching from other lenses.
