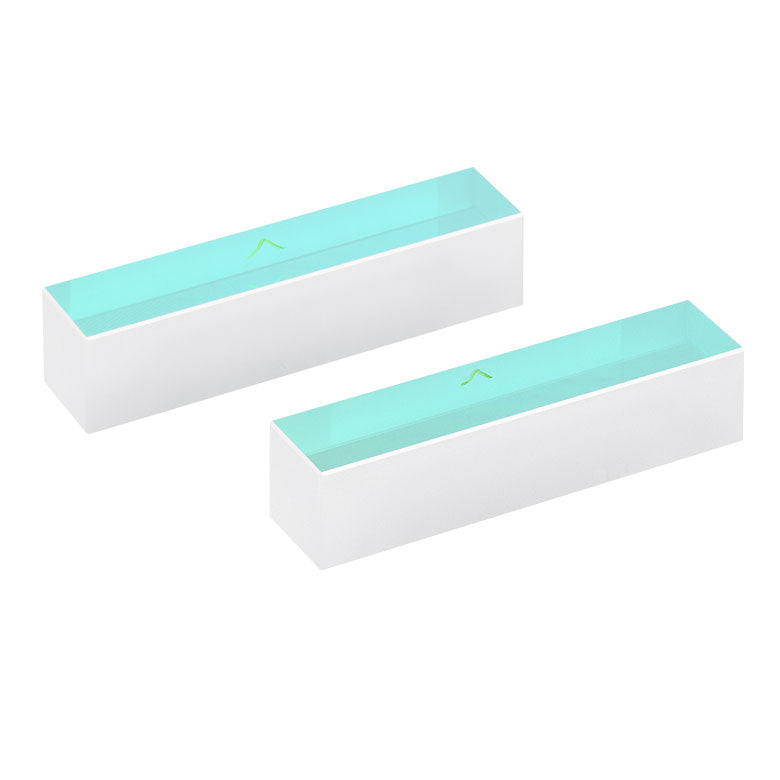

T-DCMP175 - Dispersion-Compensating Mirror Set, 700 nm - 1000 nm, 8° AOI, Qty. 2
Product Drawing
- >99% Average Reflectance from 700 to 1000 nm
- Group Delay Dispersion (GDD) per Reflection: -175 fs2 at 800 nm
- Coated Surface Dimensions: 50 mm x 8 mm
- 8° AOI
- Designed for Pulses with Spectral Bandwidth >50 nm FWHM
- Sold in Packs of 2
The T-DCMP175 consists of a pair of rectangular optics with >99% average reflectance over the 700 - 1000 nm wavelength range. These mirrors are designed to integrate with multiphoton microscopy setups, which typically include long path lengths through highly dispersive glass. The 8° AOI allows these mirrors to perform similarly for both s- and p-polarized light, and is ideal for a compact setup where multiple reflections are needed.
Mounting Option
This mirror can be mounted in the Kinematic Grating Mount Adapter, which is compatible with Ø1", front-loading, unthreaded mirror mounts, such as our Polaris Ultrastable Kinematic Mirror Mount.
| Specifications |
| Item # |
T-CMP175 |
| Wavelength Range |
700 - 1000 nm |
| Reflectance over Wavelength Range |
Ravg > 99% over Wavelength Range |
| Group Delay Dispersion (GDD) per Reflection |
-175 fs2 at 800 nm |
| Size |
53.0 mm x 12.0 mm
(2.09" x 0.47") |
| Diameter Tolerance |
N/A |
| Thickness |
12.0 mm (2.09") |
| Thickness Tolerance |
- |
| Clear Aperture |
At Least 8 mm x 50 mm |
| Angle of Incidence (AOI) |
8° |
| Surface Flatness |
λ/10 Over Any Ø8 mm in the Clear Aperture |
| Surface Quality |
10-5 Scratch-Dig |
| Back Surface |
- |
| Laser-Induced Damage Threshold |
0.10 J/cm2 (800 nm, 100 fs) |
| Substrate |
Fused Silica |
| Parallelism |
- |
