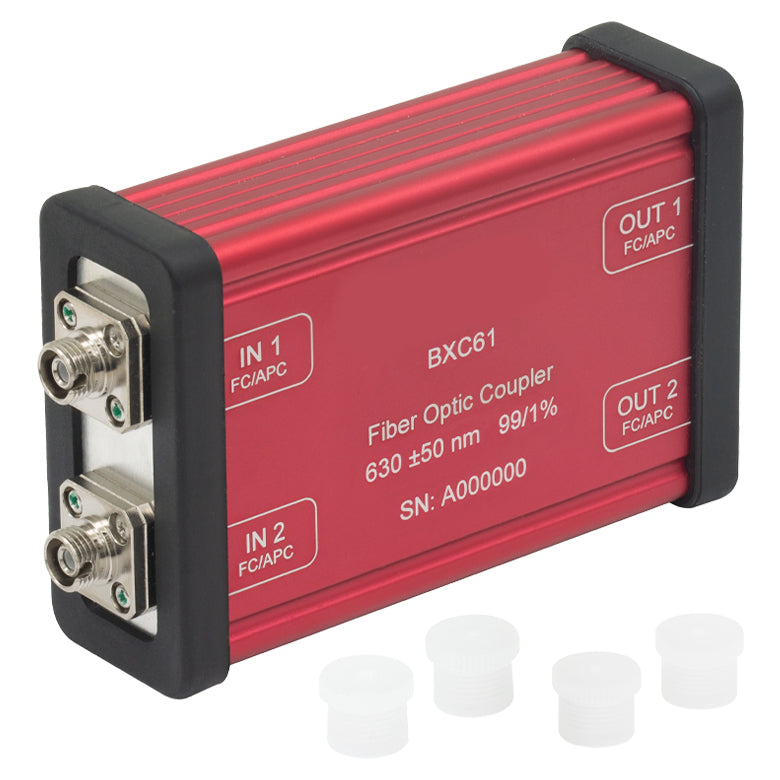

T-BXC61 - 2x2 Boxed Wideband Fiber Optic Coupler, 630 ± 50 nm, 99:1 Split, FC/APC Bulkheads
Product Drawing
- 630 nm Couplers
- 50:50, 75:25, 90:10, or 99:1 Split Ratio
- Three Wavelength Ranges Available
- 630 ± 50 nm Wideband
- 632 ± 15 nm Narrowband
- 670 ± 75 nm Wideband
- 0.8 m Long Fiber Leads with a Tolerance of +0.075 m / -0.0 m
- Bidirectional Coupling (Either End Can Be Used as an Input)
-
Center Wavelength 630 nm
- Bandwidth ±50 nm
- Coupling Ratio 99:1
- Coupling Ratio Tolerance ±0.6%
- Insertion Loss ≤0.5 dB / ≤24.4 dB
- Excess Loss <0.3 dB (Typ.)
- Uniformity ≤2.0 dB
- Fiber Type 630HP
- Termination FC/PC Connectors
- Housing Boxed
| Coupler Specifications |
| Coupling Ratio |
99:1 |
| Coupling Ratio Tolerance |
±0.6% |
| Center Wavelength |
630 nm |
| Minimum Bandwidth |
±50 nm |
Insertion Loss
|
≤0.5 dB / ≤24.4 dB |
Excess Loss
|
<0.3 dB (Typ.) |
| Uniformity |
≤2.0 dB |
| Polarization-Dependent Loss (PDL) |
≤0.2 dB |
| Optical Return Loss (ORL) / Directivity |
≥60 dB |
| Max Power Level |
300 mW |
Fiber Type
|
630HP |
| Fiber Cut-Off Wavelength |
570 ± 30 nm |
| Fiber NA |
0.13 |
| Optical Ports |
2.0 mm Narrow-Key FC/APC Bulkheads |
| Port Configuration |
2x2 |
Dimensions
|
1.13" x 2.38" x 3.55"
(28.7 mm x 60.4 mm x 90.1 mm) |
| Operating Temperature |
-40 to 85 °C |
| Storage Temperature |
-40 to 85 °C |
